SVXCR 2020 K 16-M-A
SVXCR 2020 K 16-M-A
SVXCR 2020 K 16-M-A

SVXCR 2020 K 16-M-A

UGC DOR6756637
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

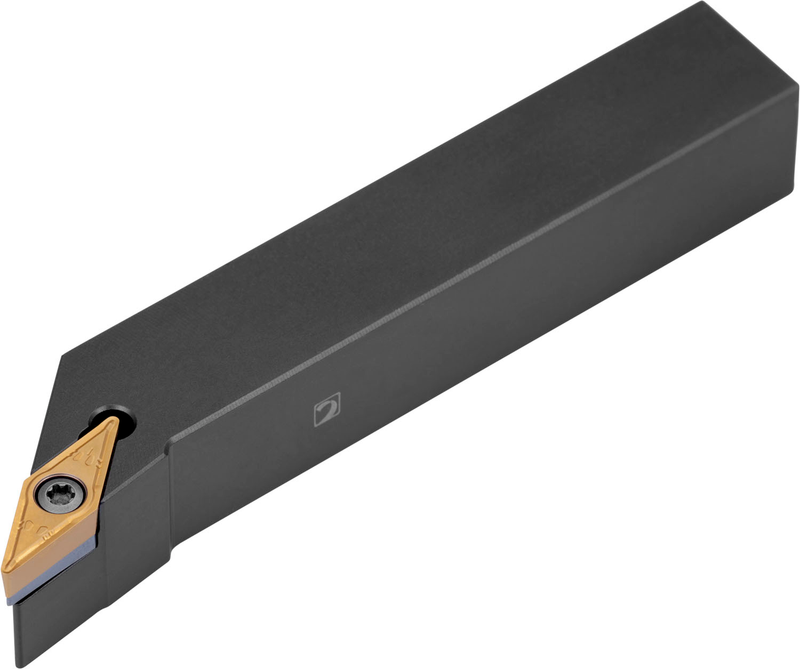

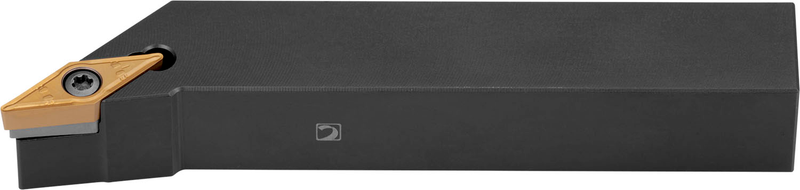

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604.. ), outil spécial à droite, 20mm de hauteur x 20mm de largeur x 125mm de longueur pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVXCR 2020 K 16-M-A
Product Number6756637
Product FamilySVXB(C)(RL) EXT

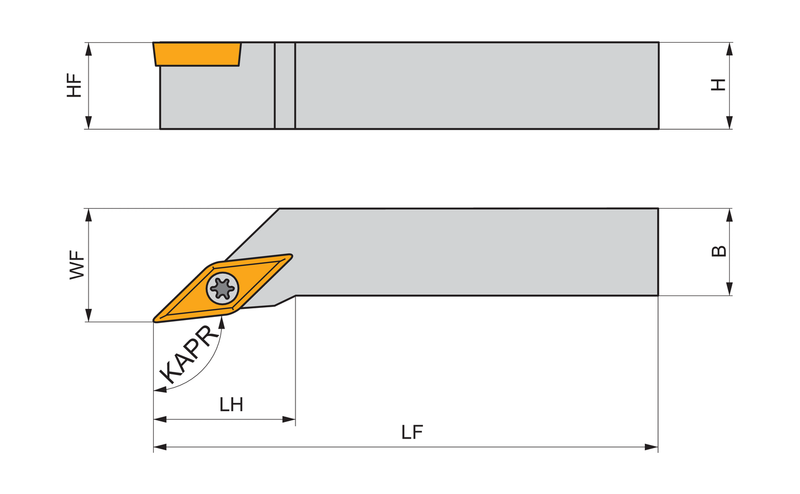

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756637
EAN3603602920034
File Type Download
SVXCR 2020 K 16-M-A — 3D Model STP Download
SVXCR 2020 K 16-M-A — Line Drawing PDF Download
