SVXCR 2525 M 16-M-A
SVXCR 2525 M 16-M-A
SVXCR 2525 M 16-M-A

SVXCR 2525 M 16-M-A

UGC DOR6756638
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

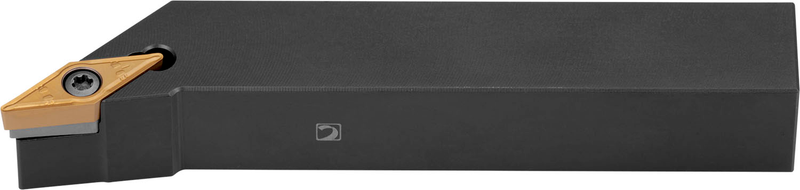

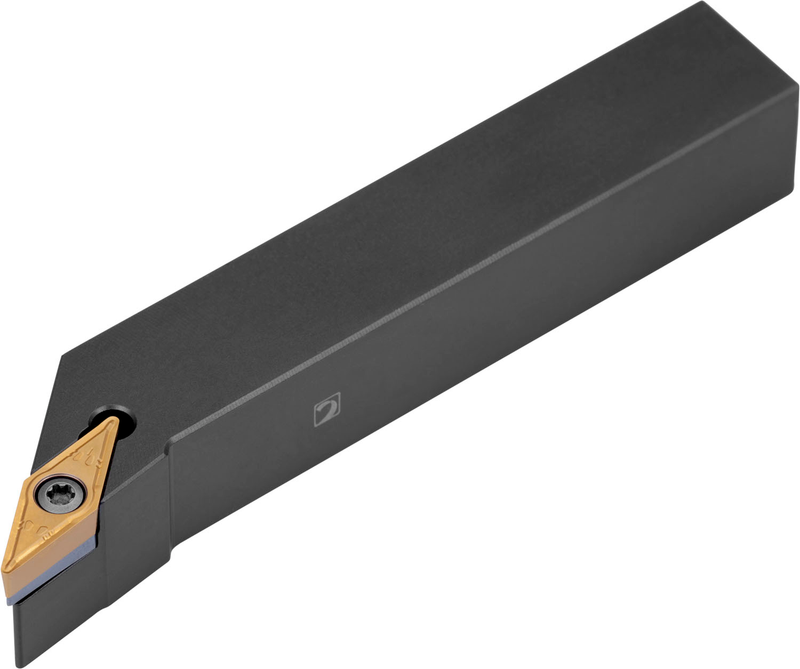

Outil de tournage à bride de serrage pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604..), style d'outil spécial droit, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le tournage de copie unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVXCR 2525 M 16-M-A
Product Number6756638
Product FamilySVXB(C)(RL) EXT

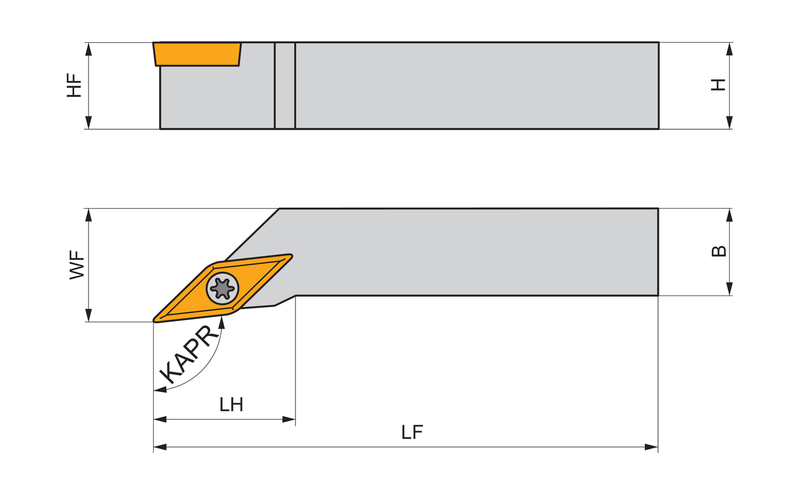

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756638
EAN3603602920041
File Type Download
SVXCR 2525 M 16-M-A — 3D Model STP Download
SVXCR 2525 M 16-M-A — Line Drawing PDF Download
