SVXCR 3225 P 16-M-A
SVXCR 3225 P 16-M-A
SVXCR 3225 P 16-M-A

SVXCR 3225 P 16-M-A

UGC DOR6756639
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.00 CAD - $219.00 CAD
$219.00 CAD
$219.00 CAD - $219.00 CAD
$219.00 CAD

Vendu en lots de : 1

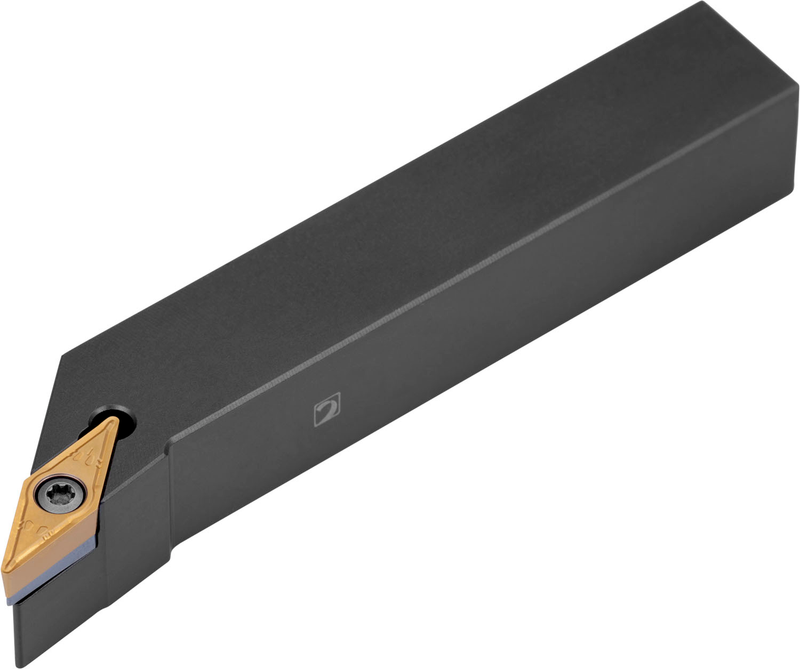

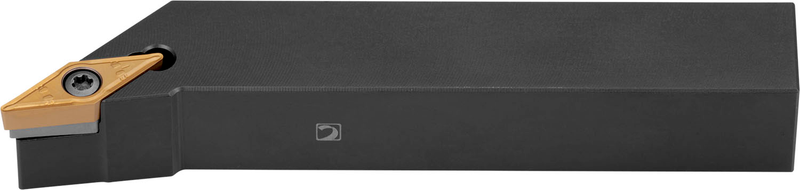

Outil de chariotage à bride pour plaquette positive rhomboïde de 35° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604.. ), outil spécial à droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour chariotage conique, chariotage de copie unidirectionnel et multidirectionnel et chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVXCR 3225 P 16-M-A
Product Number6756639
Product FamilySVXB(C)(RL) EXT

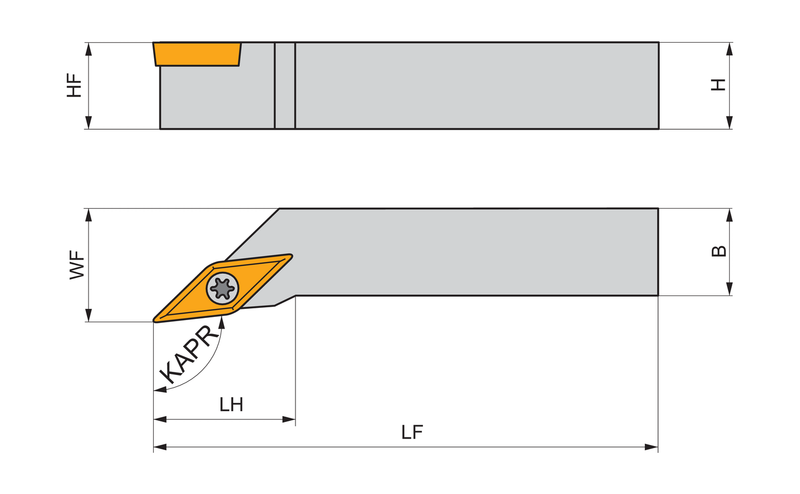

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756639
EAN3603602920058
File Type Download
SVXCR 3225 P 16-M-A — 3D Model STP Download
SVXCR 3225 P 16-M-A — Line Drawing PDF Download
