A32S-SDUCL 11-A
A32S-SDUCL 11-A
A32S-SDUCL 11-A

A32S-SDUCL 11-A

UGC DOR6756644
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

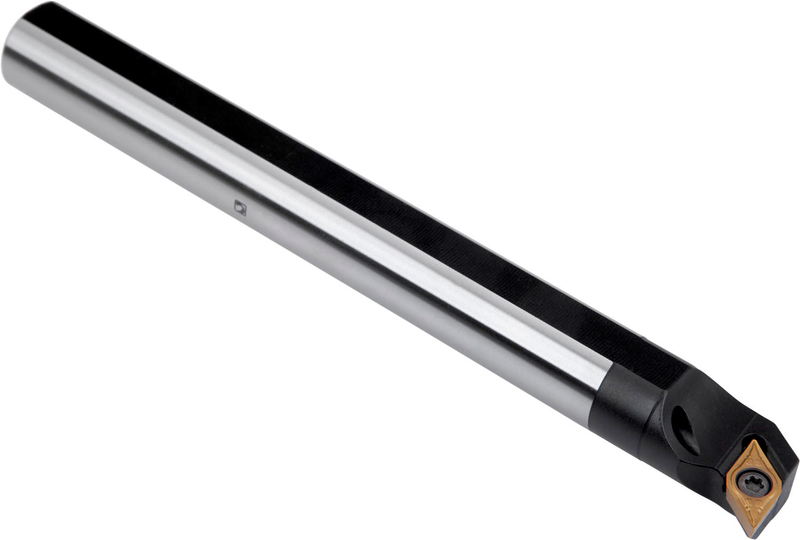

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO DC.. 11T3.. ), coupe à gauche 93° avec corps déporté, en acier avec trou d'arrosage, 32mm de diamètre x 250mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-SDUCL 11-A
Product Number6756644
Product FamilySDUC(RL) INT

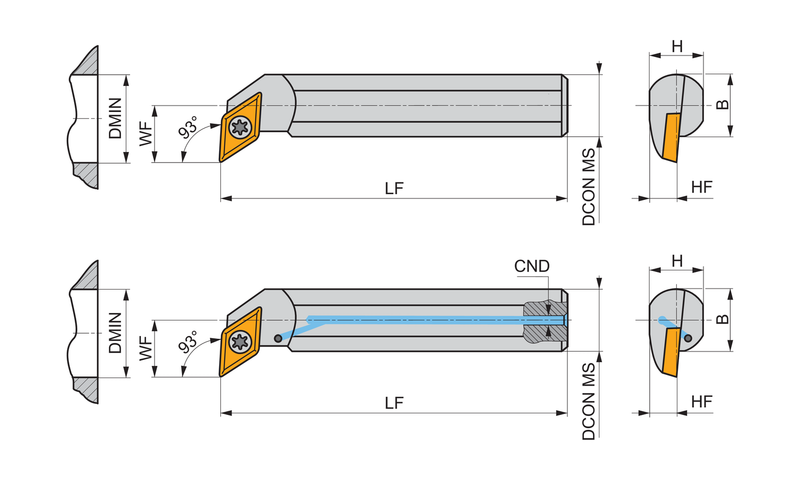

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6756644
EAN3603602920102
File Type Download
A32S-SDUCL 11-A — 3D Model STP Download
A32S-SDUCL 11-A — Line Drawing PDF Download
