A32S-SDUCR 11-A
A32S-SDUCR 11-A
A32S-SDUCR 11-A

A32S-SDUCR 11-A

UGC DOR6756645
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

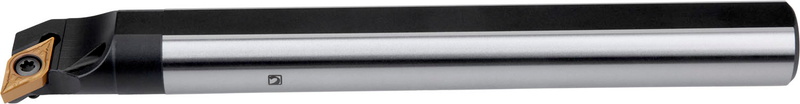

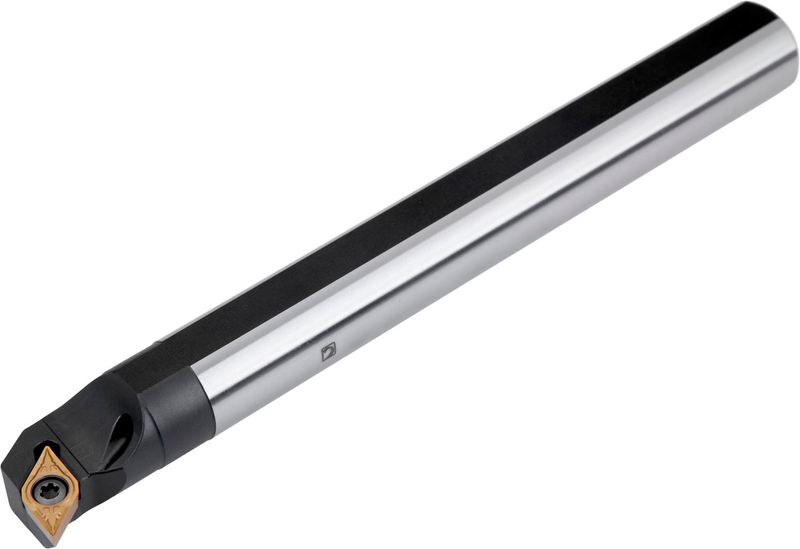

Barre d'alésage à vis pour un insert positif en losange de 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur 3,97 mm (désignation ISO DC.. 11T3.. ), coupe à droite à 93° avec queue déportée, acier avec trou d'arrosage, diamètre 32 mm x 250 mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-SDUCR 11-A
Product Number6756645
Product FamilyINT de la CSUD (RL)

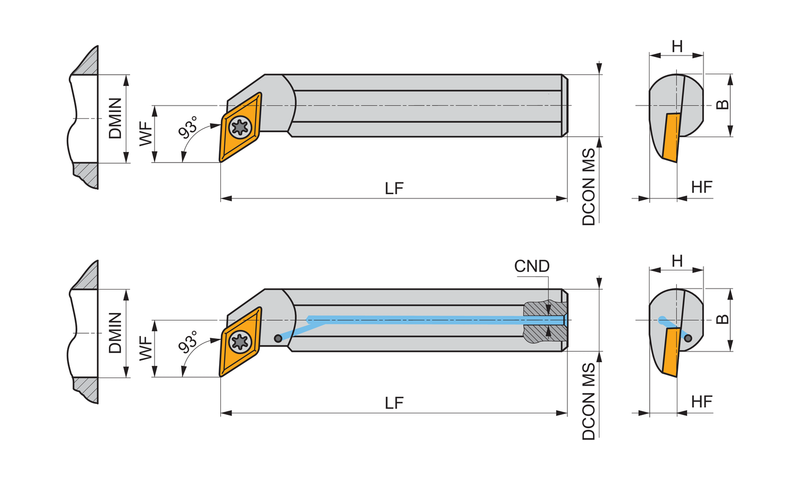

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6756645
EAN3603602920119
File Type Download
A32S-SDUCR 11-A — 3D Model STP Download
A32S-SDUCR 11-A — Line Drawing PDF Download
