S32S-SDZCR 11-93-A
S32S-SDZCR 11-93-A
S32S-SDZCR 11-93-A

S32S-SDZCR 11-93-A

UGC DOR6756647
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

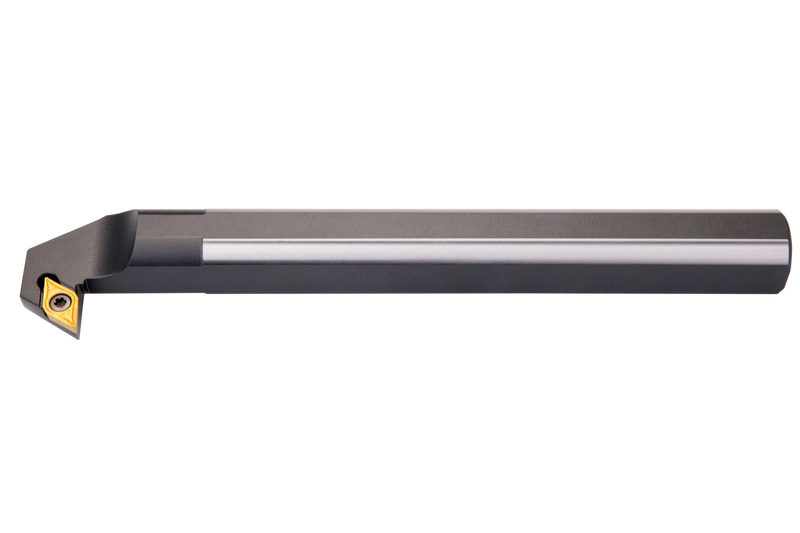

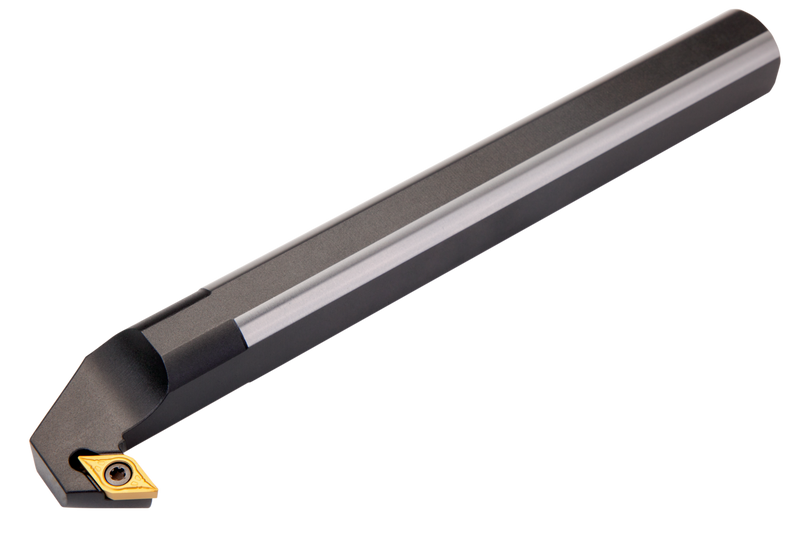

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde de 55° avec diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO DC.. 11T3.. ), coupe arrière à droite avec queue déportée, acier sans trou d'arrosage, diamètre 32 mm x longueur 250 mm pour chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S32S-SDZCR 11-93-A
Product Number6756647
Product FamilySDZC(RL) INT

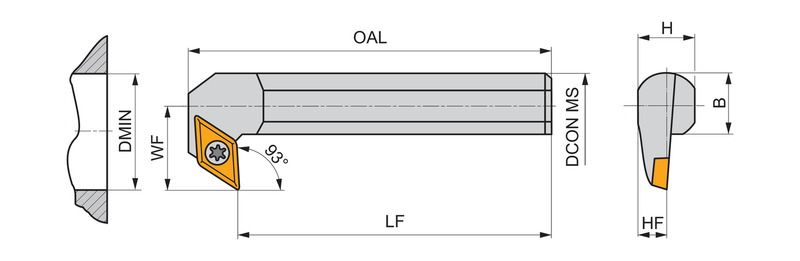

Dimensions
Overall Length — in (OAL)10.551"
Overall Length — mm (OAL)268.0 mm
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)2.087"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756647
EAN3603602920133
File Type Download
S32S-SDZCR 11-93-A — 3D Model STP Download
S32S-SDZCR 11-93-A — Line Drawing PDF Download
