S32U-SDUCL 11-A
S32U-SDUCL 11-A
S32U-SDUCL 11-A

S32U-SDUCL 11-A

UGC DOR6756654
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

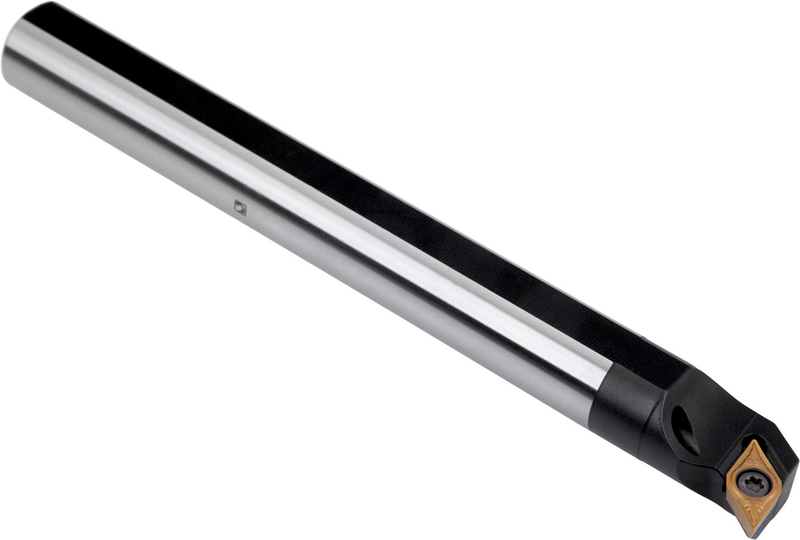

Barre d'alésage à vis pour plaquette positive en forme de losange à 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO DC.. 11T3.. ), coupe à gauche 93° avec queue déportée, en acier sans trou de refroidissement, diamètre 32 mm x 350 mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S32U-SDUCL 11-A
Product Number6756654
Product FamilySDUC(RL) INT

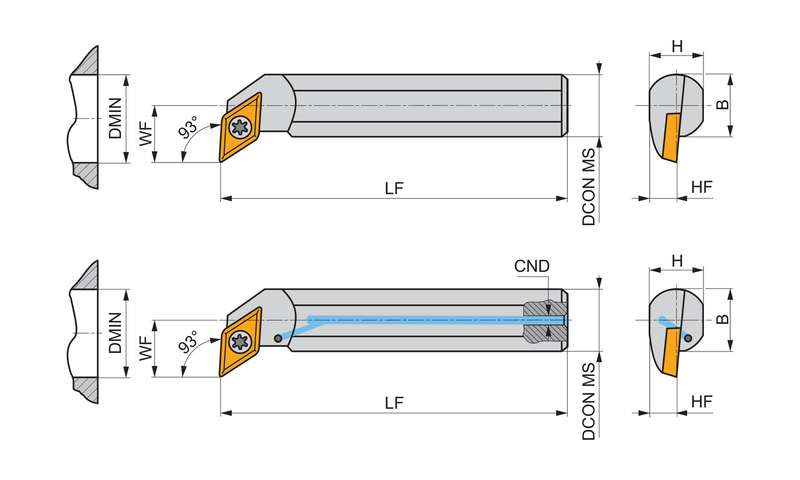

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756654
EAN3603602920201
File Type Download
S32U-SDUCL 11-A — 3D Model STP Download
S32U-SDUCL 11-A — Line Drawing PDF Download
