CTAPR 2525 M 16
CTAPR 2525 M 16
CTAPR 2525 M 16

CTAPR 2525 M 16

UGC DOR6756679
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$171.00 CAD - $171.00 CAD
$171.00 CAD
$171.00 CAD - $171.00 CAD
$171.00 CAD

Vendu en lots de : 1

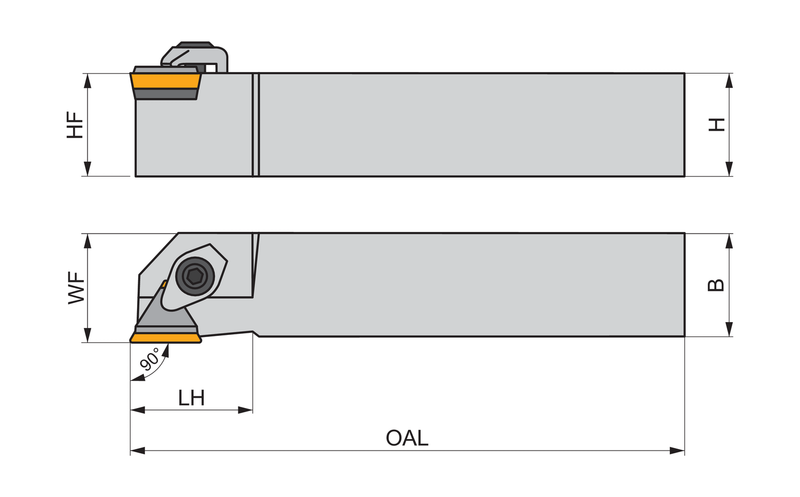

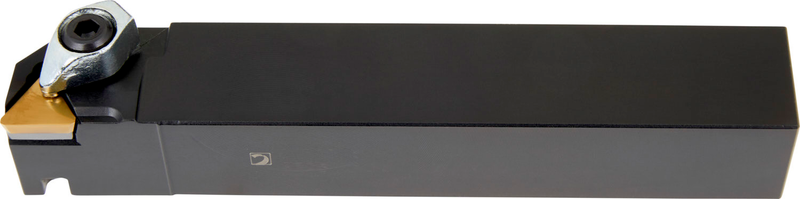

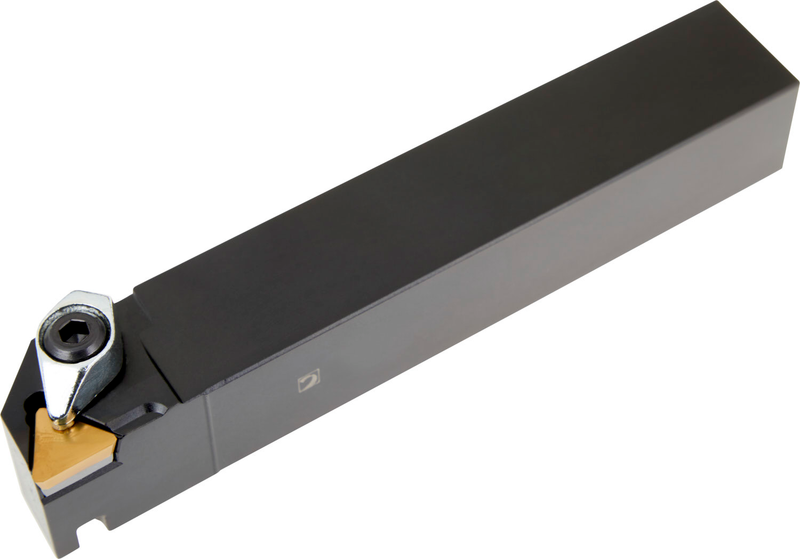

Outil de tournage à bride supérieure pour l'accueil d'un insert triangulaire positif avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 3,18 mm (désignation ISO TP.. 1603... ), coupe à droite à 90° avec queue droite, hauteur d'outil 25 mm x largeur 25 mm x longueur 150 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CTAPR 2525 M 16
Product Number6756679
Product FamilyCTAP(LR) EXT
Dimensions
Functional Length — mm (LF)150.0 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756679
EAN3603602920454
File Type Download
CTAPR 2525 M 16 — 3D Model STP Download
CTAPR 2525 M 16 — Line Drawing PDF Download
