PTGNR 2525 M 16
PTGNR 2525 M 16
PTGNR 2525 M 16

PTGNR 2525 M 16

UGC DOR6756681
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

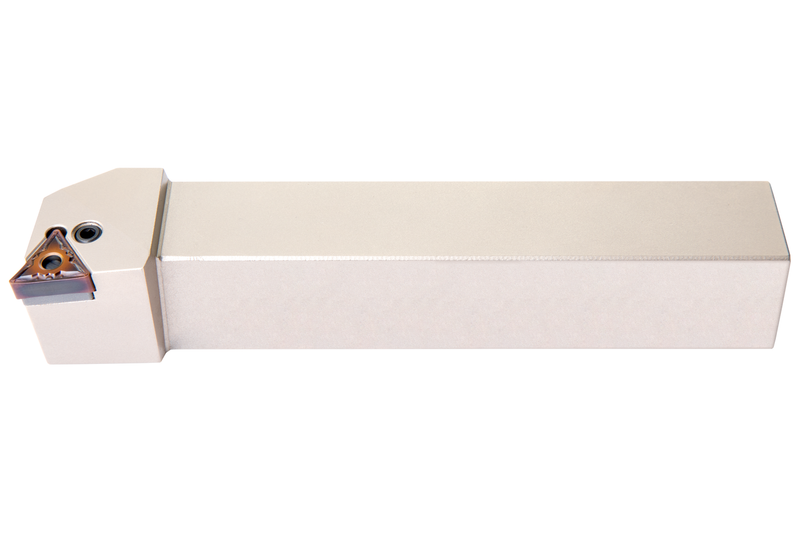

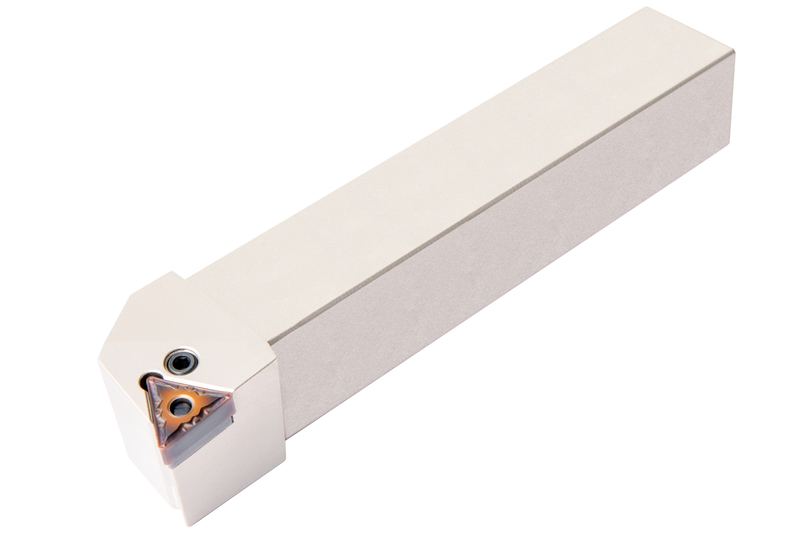

Outil de tournage à levier pour plaquette négative triangulaire avec cercle inscrit de 9,525 mm de diamètre, 4,76 mm d'épaisseur (désignation ISO TN.. 1604.. ), coupe latérale à droite à 90° avec queue déportée, 25 mm de hauteur d'outil x 25 mm de largeur x 150 mm de longueur pour tournage conique et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTGNR 2525 M 16
Product Number6756681
Product FamilyPTGN(RL) EXT

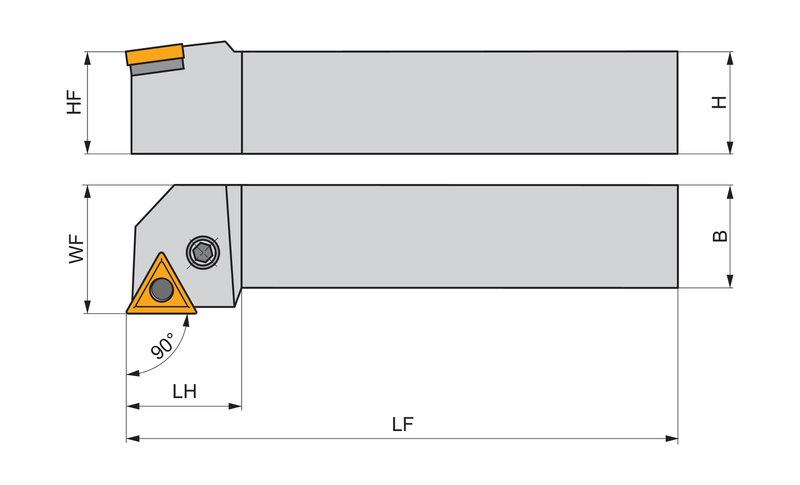

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756681
EAN3603602920478
File Type Download
PTGNR 2525 M 16 — 3D Model STP Download
PTGNR 2525 M 16 — 2D Model DXF Download
PTGNR 2525 M 16 — Line Drawing PDF Download
