PTGNR 2525 M 22
PTGNR 2525 M 22
PTGNR 2525 M 22

PTGNR 2525 M 22

UGC DOR6756682
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

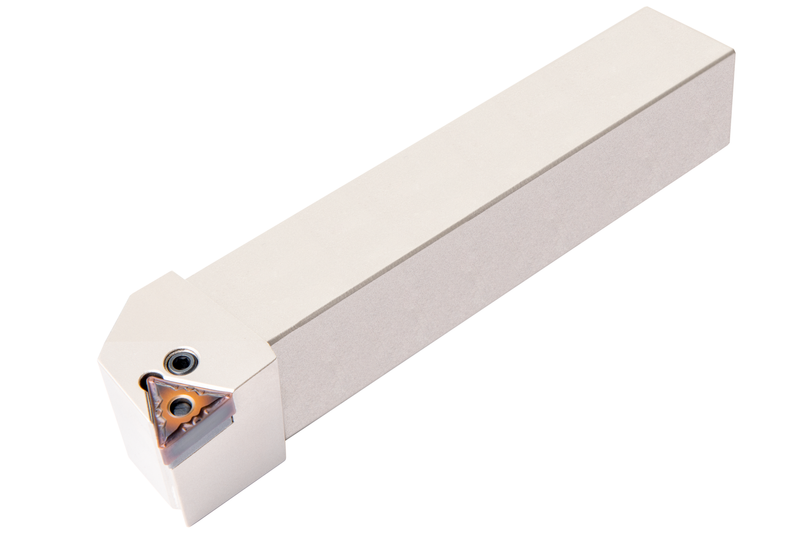

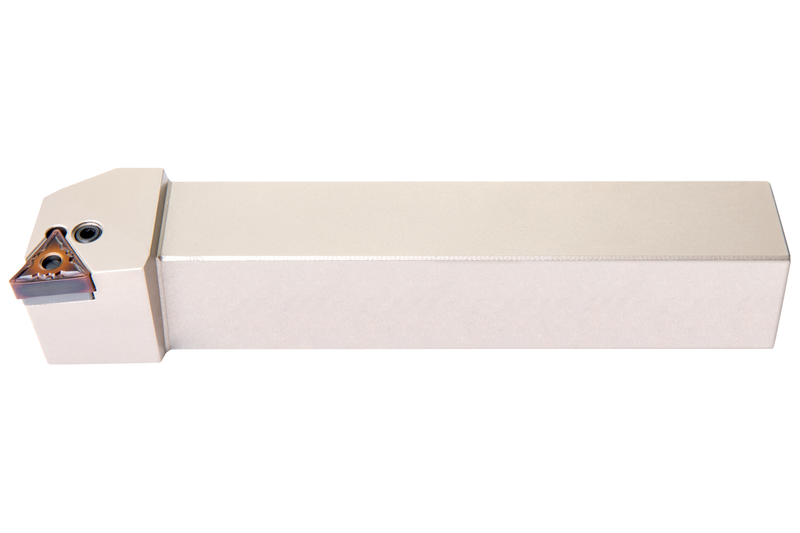

Porte-outil à levier pour insert négatif triangulaire de diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO TN.. 2204..), coupe latérale à droite de 90° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTGNR 2525 M 22
Product Number6756682
Product FamilyPTGN(RL) EXT

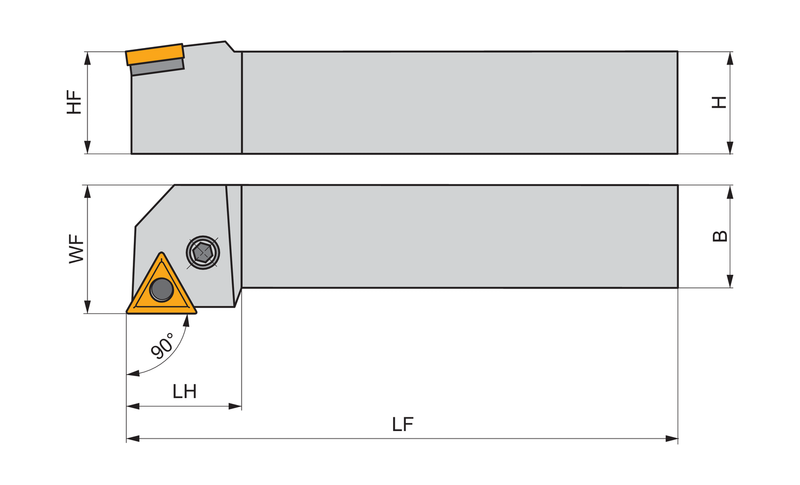

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756682
EAN3603602920485
File Type Download
PTGNR 2525 M 22 — 3D Model STP Download
PTGNR 2525 M 22 — 2D Model DXF Download
PTGNR 2525 M 22 — Line Drawing PDF Download
