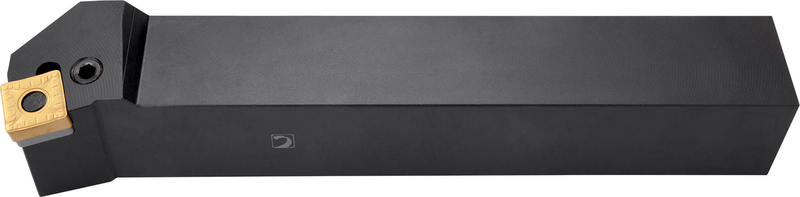

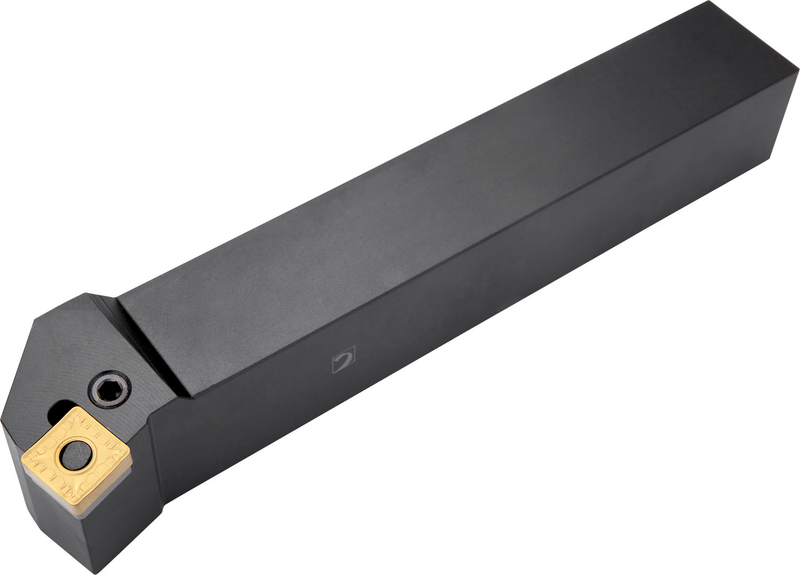

PSKNR 2525 M 12
PSKNR 2525 M 12
PSKNR 2525 M 12

PSKNR 2525 M 12

UGC DOR6756688
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

Outil de chariotage à levier pour plaquette carrée négative, diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO SN.. 1204.. ), coupe à droite 75° avec queue déportée, hauteur de l'outil 25 mm x largeur 25 mm x longueur 150 mm pour chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSKNR 2525 M 12
Product Number6756688
Product FamilyPSKN(RL) EXT

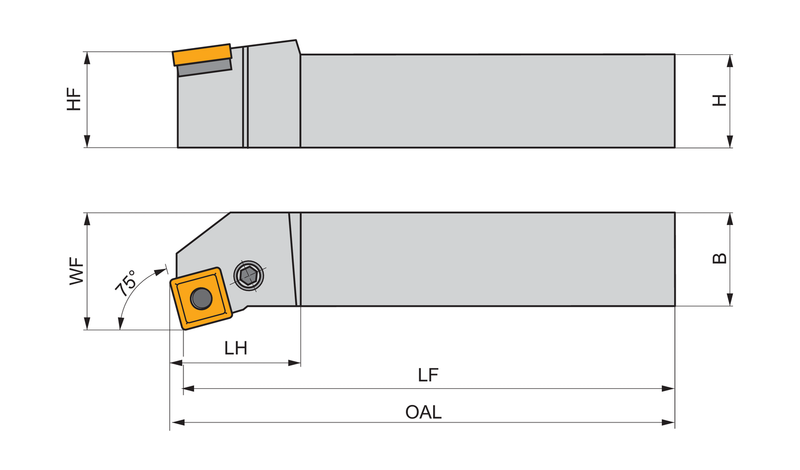

Dimensions
Overall Length — in (OAL)6.028"
Overall Length — mm (OAL)153.1 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756688
EAN3603602920546
File Type Download
PSKNR 2525 M 12 — 3D Model STP Download
PSKNR 2525 M 12 — 2D Model DXF Download
PSKNR 2525 M 12 — Line Drawing PDF Download
