PSDNN 3232 P 19
PSDNN 3232 P 19
PSDNN 3232 P 19

PSDNN 3232 P 19

UGC DOR6756689
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

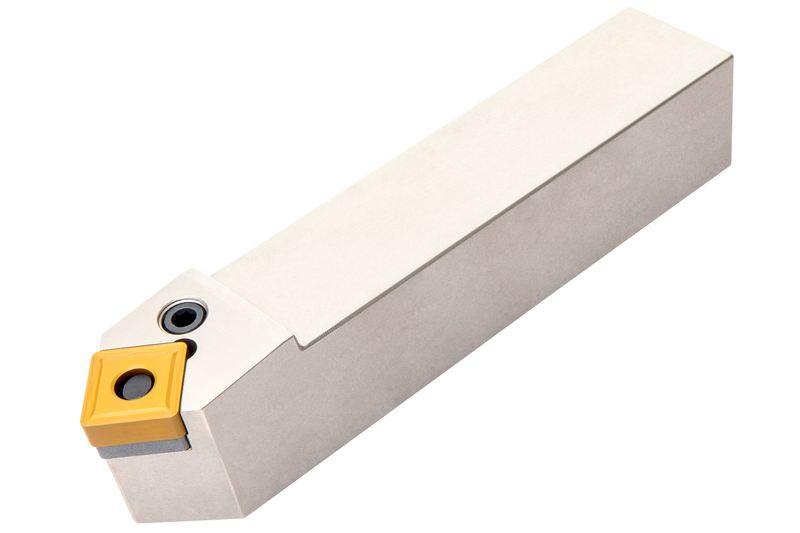

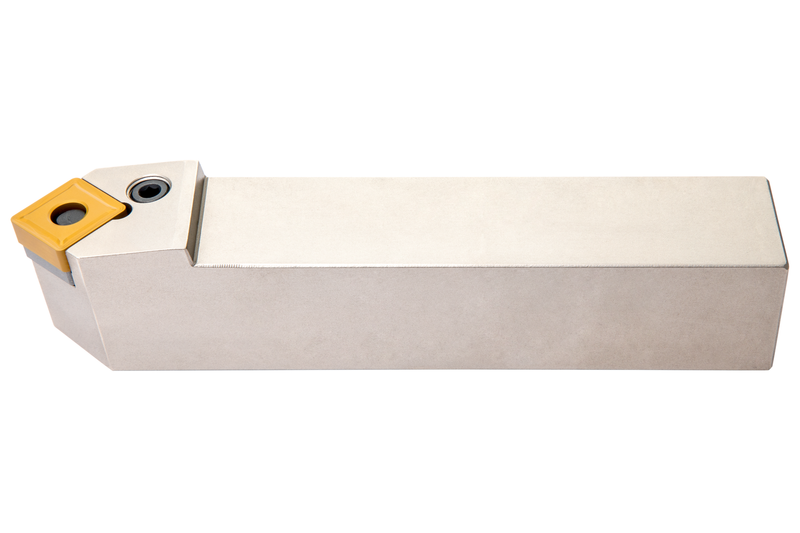

Outil de tournage à levier pour la fixation d'un insert négatif carré d'un diamètre de cercle inscrit de 19,05 mm, de 6,35 mm d'épaisseur (désignation ISO SN.. 1906.. ), main neutre, coupe latérale à 45° avec queue cylindrique, hauteur d'outil de 32 mm x largeur de 32 mm x 170 mm de long pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSDNN 3232 P 19
Product Number6756689
Product FamilyPSDNN EXT

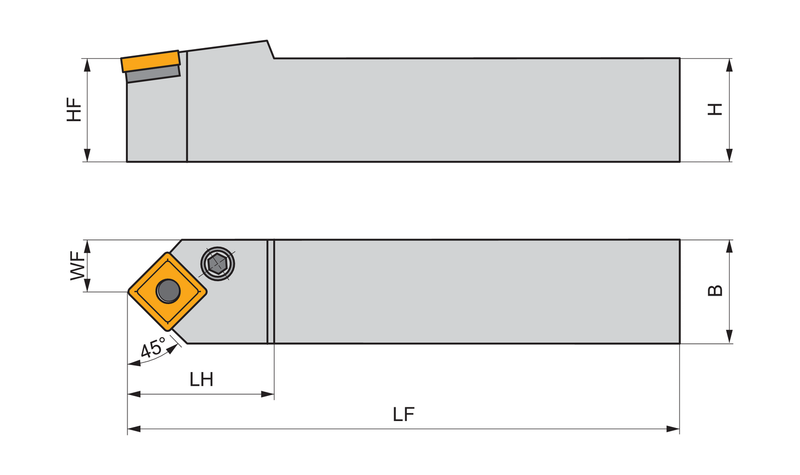

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756689
EAN3603602920553
File Type Download
PSDNN 3232 P 19 — 3D Model STP Download
PSDNN 3232 P 19 — 2D Model DXF Download
PSDNN 3232 P 19 — Line Drawing PDF Download
