12K2R030A12-SLC12-A
12K2R030A12-SLC12-A
12K2R030A12-SLC12-A

12K2R030A12-SLC12-A

UGC DOR6756697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$260.00 CAD - $260.00 CAD
$260.00 CAD
$260.00 CAD - $260.00 CAD
$260.00 CAD

Vendu en lots de : 1

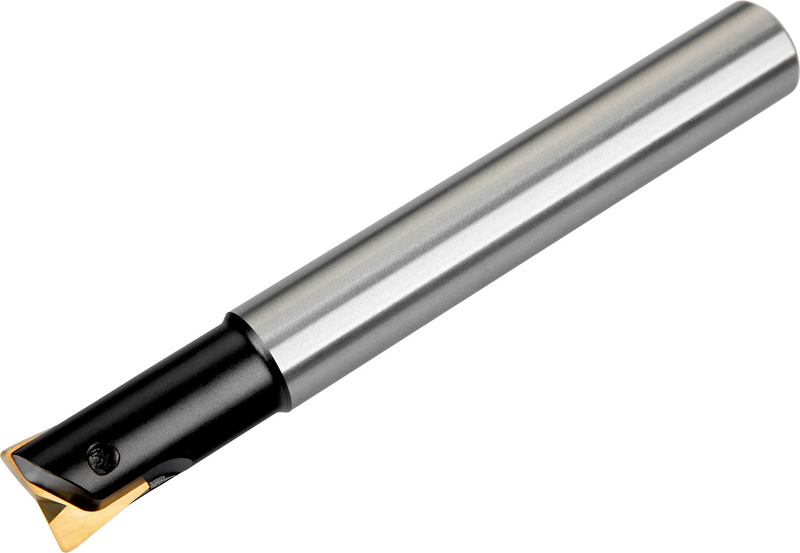

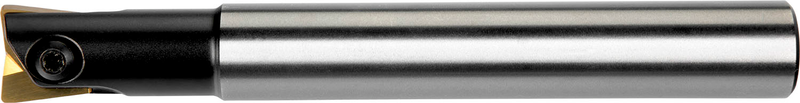

Fraise à copier qui utilise 1 insert simple face LC 12-KP, LC 12-KPF ou LC 12..-RI, diamètre de coupe de 12 mm avec queue cylindrique de 12 mm selon DIN 1835A, longueur utile de 30 mm et longueur totale de 130 mm pour le copiage avec une profondeur de coupe maximale de 1,0-3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12K2R030A12-SLC12-A
Product Number6756697
Product FamilyK2-SLC
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

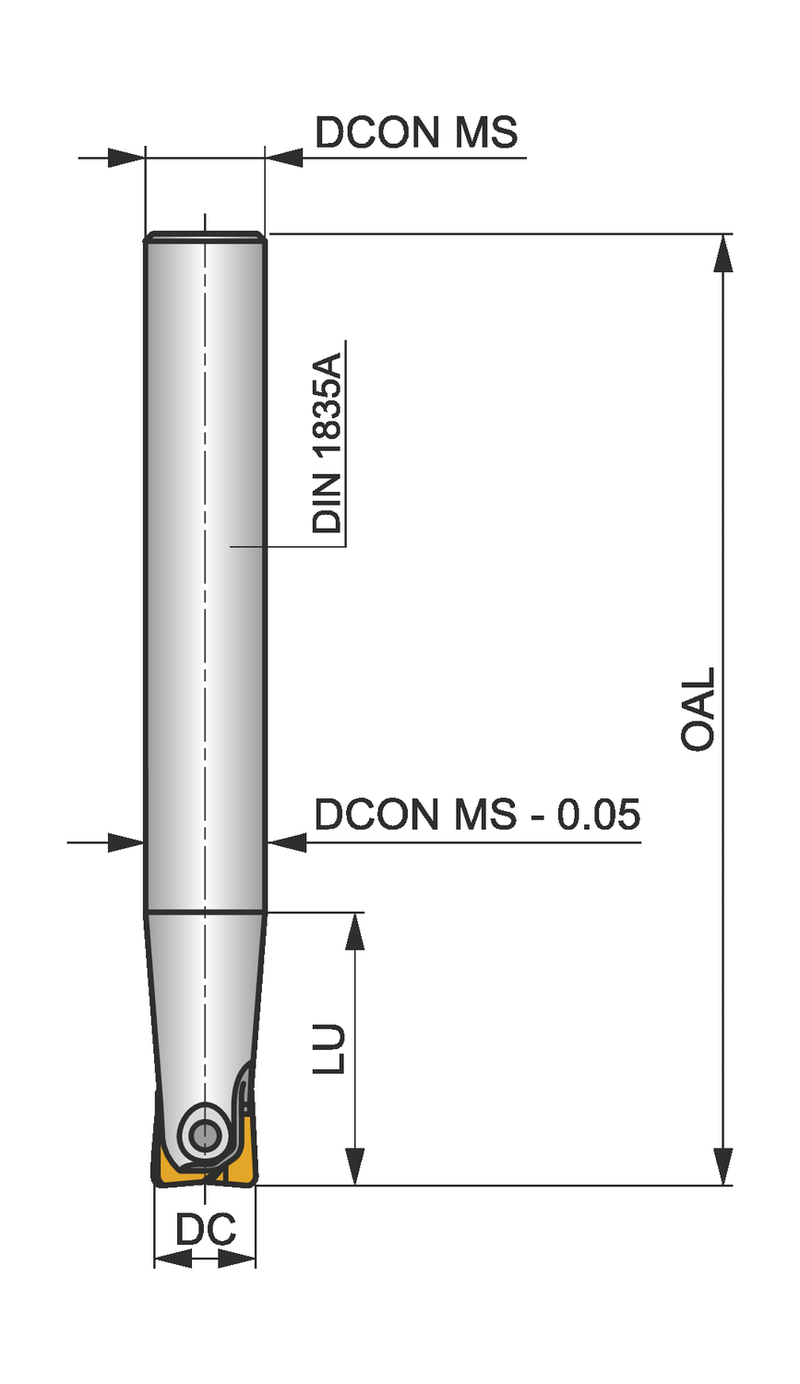

Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SLC
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6756697
EAN3603602920638
File Type Download
12K2R030A12-SLC12-A — 3D Model STP Download
12K2R030A12-SLC12-A — Line Drawing PDF Download
