20K2R045A20-SLC20-A
20K2R045A20-SLC20-A
20K2R045A20-SLC20-A

20K2R045A20-SLC20-A

UGC DOR6756699
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$312.00 CAD - $312.00 CAD
$312.00 CAD
$312.00 CAD - $312.00 CAD
$312.00 CAD

Vendu en lots de : 1

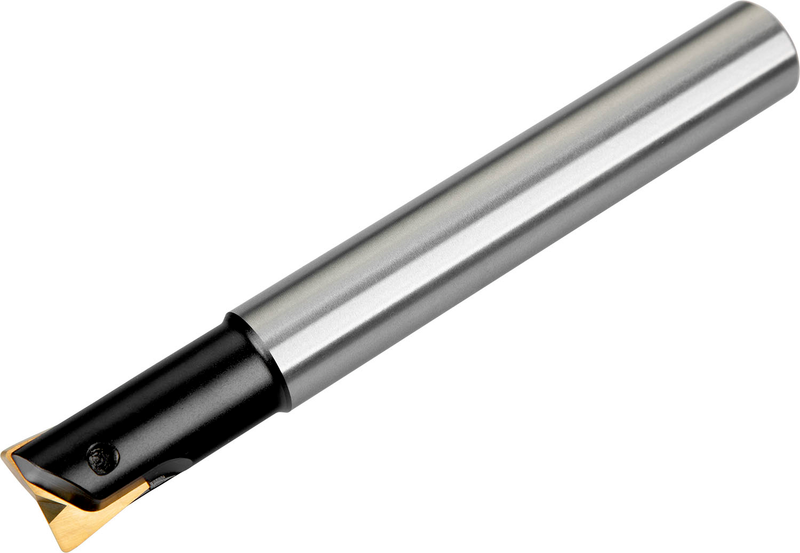

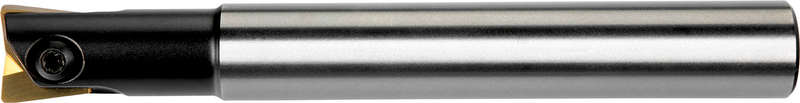

Fraise à copier qui utilise 1 insert simple face LC 20-KP ou LC 20-KPF, diamètre de coupe 20 mm avec queue cylindrique 20 mm selon DIN 1835A, longueur fonctionnelle 45 mm et longueur totale 160 mm pour le fraisage en plongée avec une profondeur de coupe maximale de 1,0-3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20K2R045A20-SLC20-A
Product Number6756699
Product FamilyK2-SLC
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

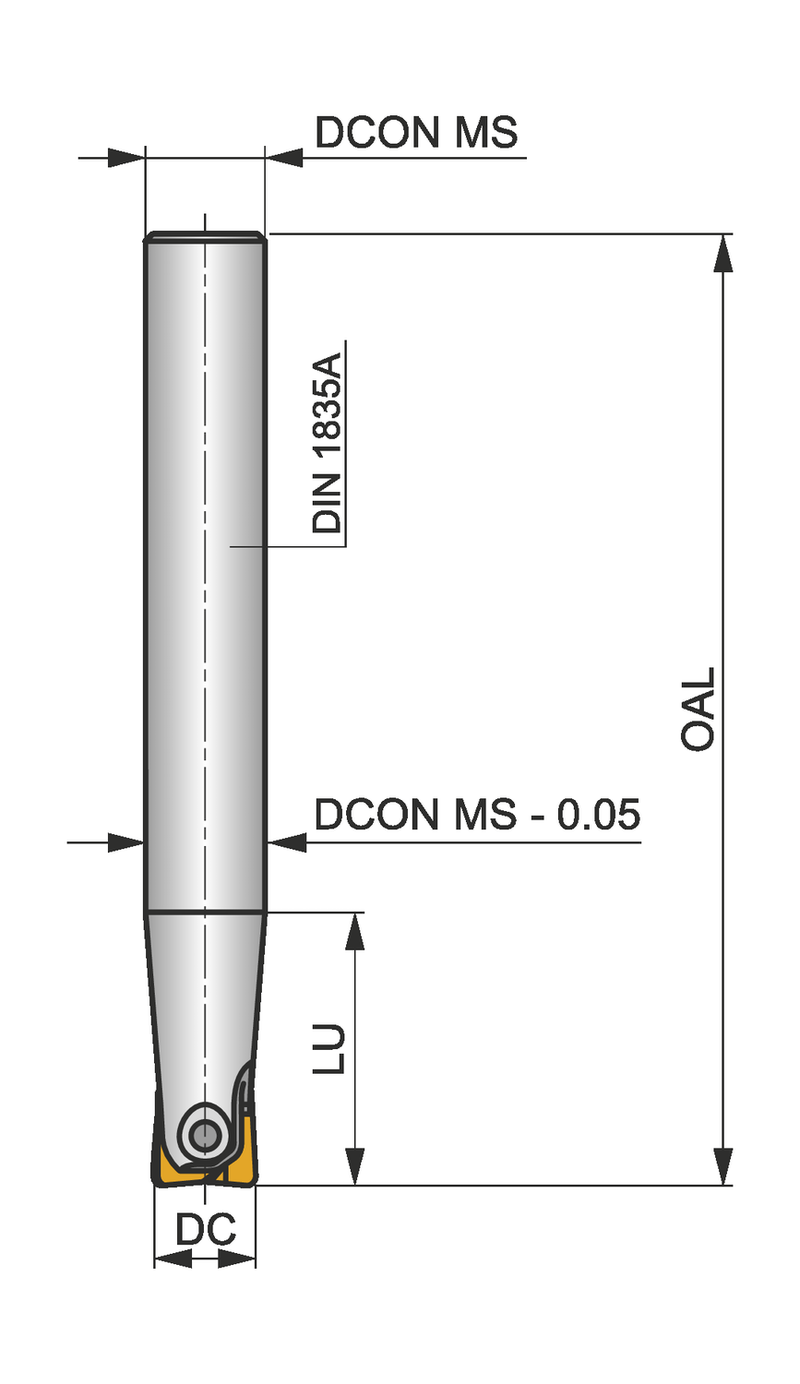

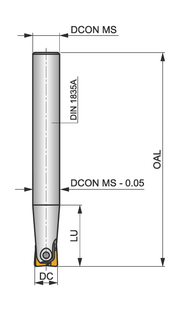

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SLC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756699
EAN3603602920652
File Type Download
20K2R045A20-SLC20-A — 3D Model STP Download
20K2R045A20-SLC20-A — Line Drawing PDF Download
