PSBNR 5050 T 2509
PSBNR 5050 T 2509
PSBNR 5050 T 2509

PSBNR 5050 T 2509

UGC DOR6756706
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

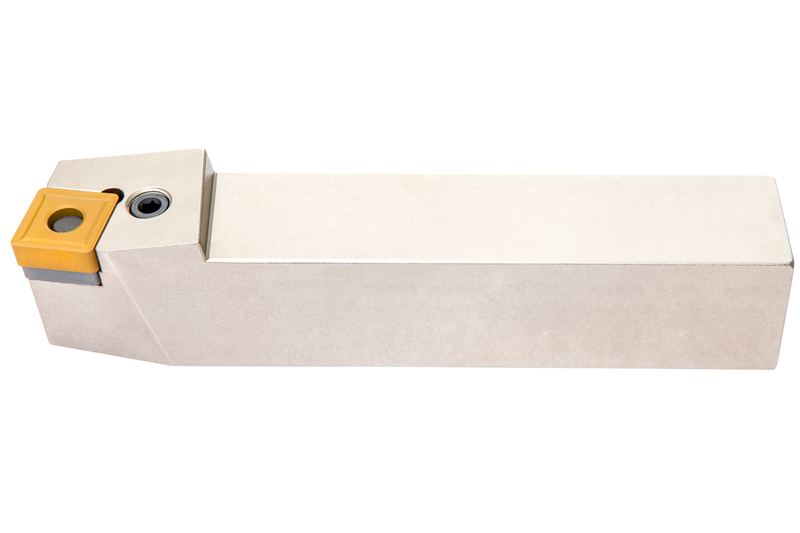

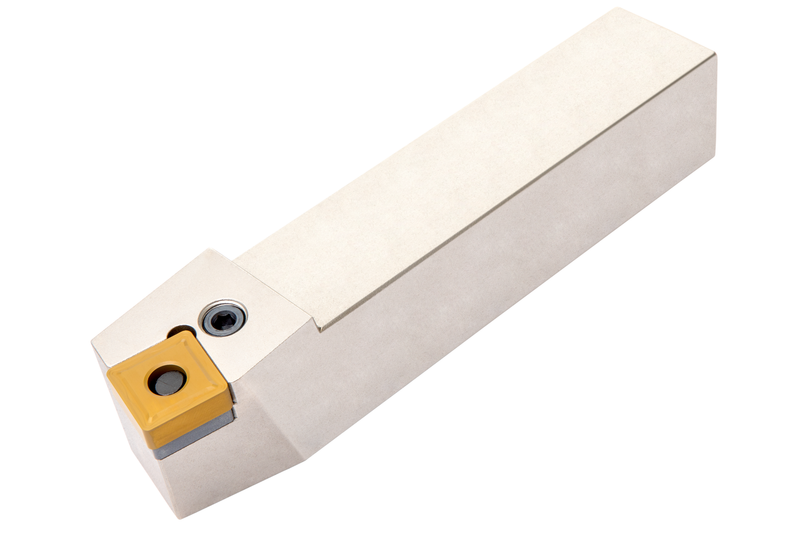

Outil à levier pour insert carré négatif avec un diamètre de cercle inscrit de 25,4 mm, 9,52 mm d'épaisseur (désignation ISO SN.. 2509.. ), coupe latérale droite à 75° avec queue droite, 50 mm de hauteur d'outil x 50 mm de largeur x 300 mm de longueur pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSBNR 5050 T 2509
Product Number6756706
Product FamilyPSBN(RL) EXT

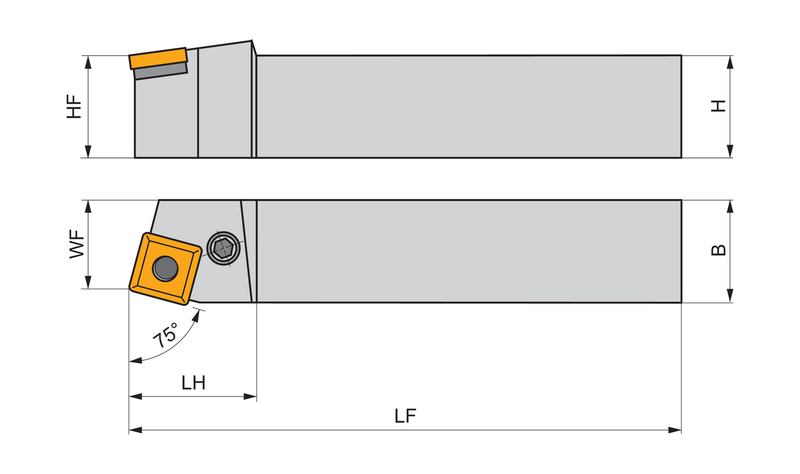

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756706
EAN3603602920720
File Type Download
PSBNR 5050 T 2509 — 3D Model STP Download
PSBNR 5050 T 2509 — 2D Model DXF Download
PSBNR 5050 T 2509 — Line Drawing PDF Download
