PSKNR 5050 T 2509
PSKNR 5050 T 2509
PSKNR 5050 T 2509

PSKNR 5050 T 2509

UGC DOR6756708
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

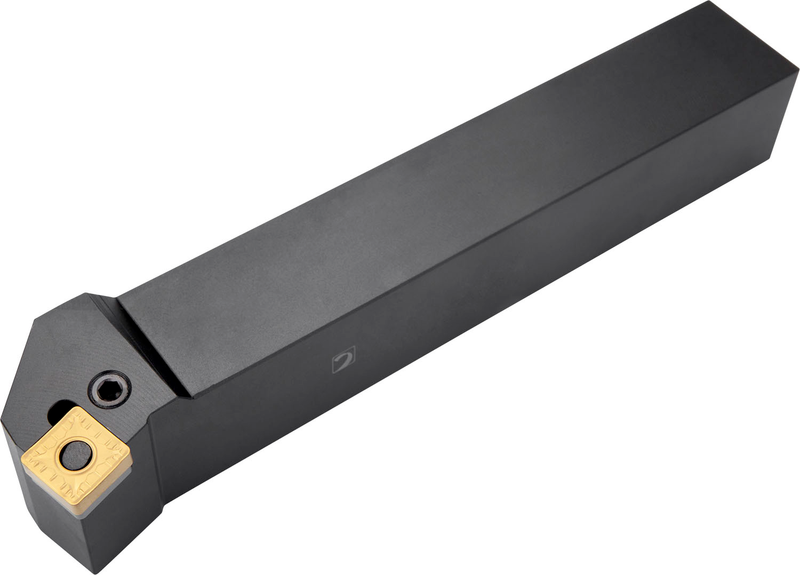

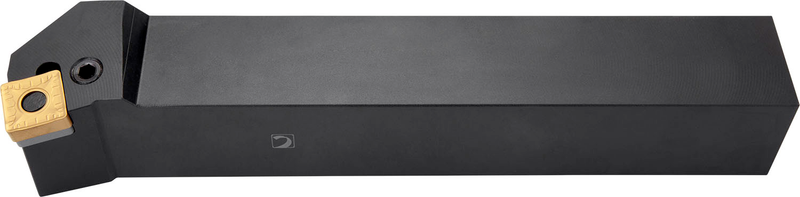

Outil de tournage à levier pour plaquette carrée négative avec un cercle inscrit de 25,4 mm de diamètre, 9,52 mm d'épaisseur (désignation ISO SN.. 2509.. ), coupe à droite à 75° avec queue déportée, hauteur de l'outil 50 mm x largeur 50 mm x longueur 300 mm pour tournage frontal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSKNR 5050 T 2509
Product Number6756708
Product FamilyPSKN(RL) EXT

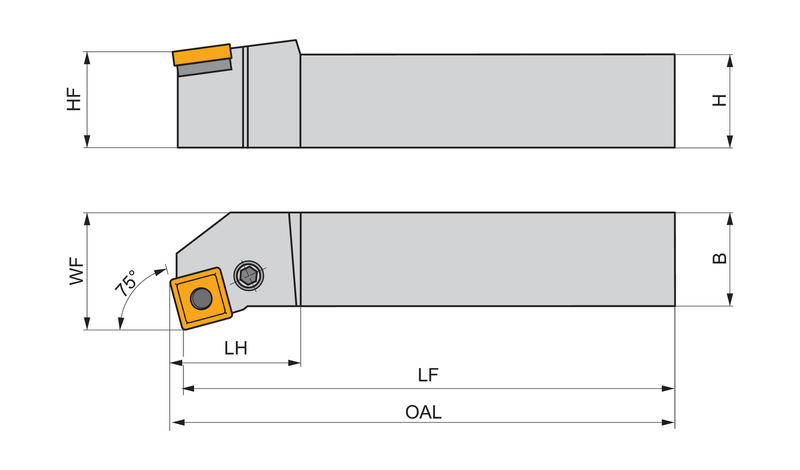

Dimensions
Overall Length — in (OAL)12.067"
Overall Length — mm (OAL)306.5 mm
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756708
EAN3603602920744
File Type Download
PSKNR 5050 T 2509 — 3D Model STP Download
PSKNR 5050 T 2509 — 2D Model DXF Download
PSKNR 5050 T 2509 — Line Drawing PDF Download
