10K2R060A16-SRC10-A
10K2R060A16-SRC10-A
10K2R060A16-SRC10-A

10K2R060A16-SRC10-A

UGC DOR6756719
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$251.00 CAD - $251.00 CAD
$251.00 CAD
$251.00 CAD - $251.00 CAD
$251.00 CAD

Vendu en lots de : 1

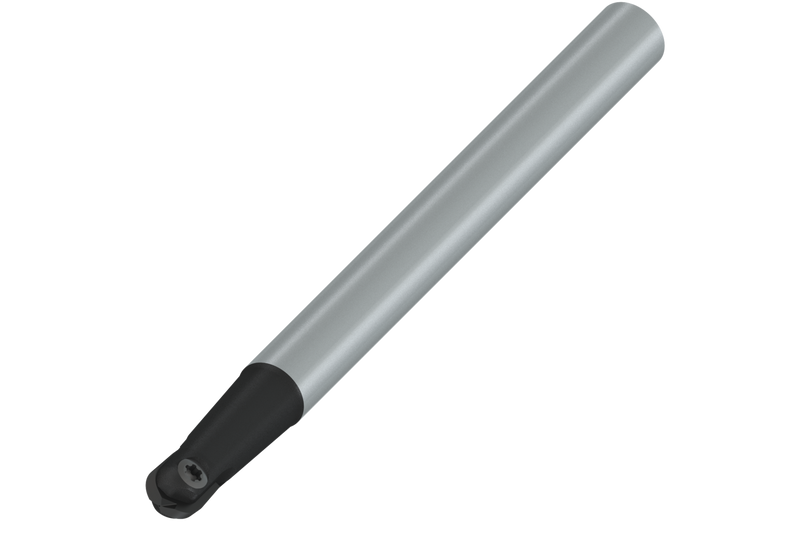

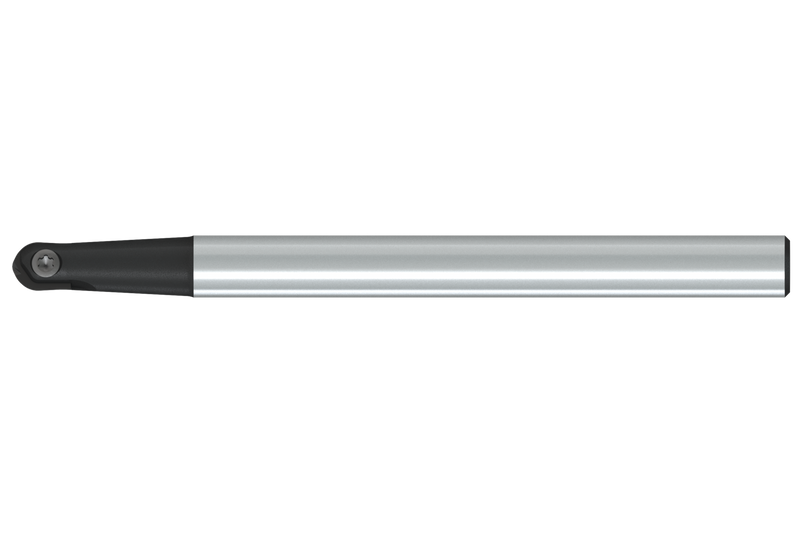

Fraise à copier qui utilise 1 plaquette simple face RC 10, RC 10-F, LC 10-KP ou LC 10-KPF, diamètre de coupe de 10mm avec queue cylindrique de 16mm selon DIN 1835A, longueur fonctionnelle de 19,5mm et longueur totale de 150mm pour le fraisage à copier avec une profondeur de coupe maximale de 0,6-3,2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)10K2R060A16-SRC10-A
Product Number6756719
Product FamilyK2-SRC

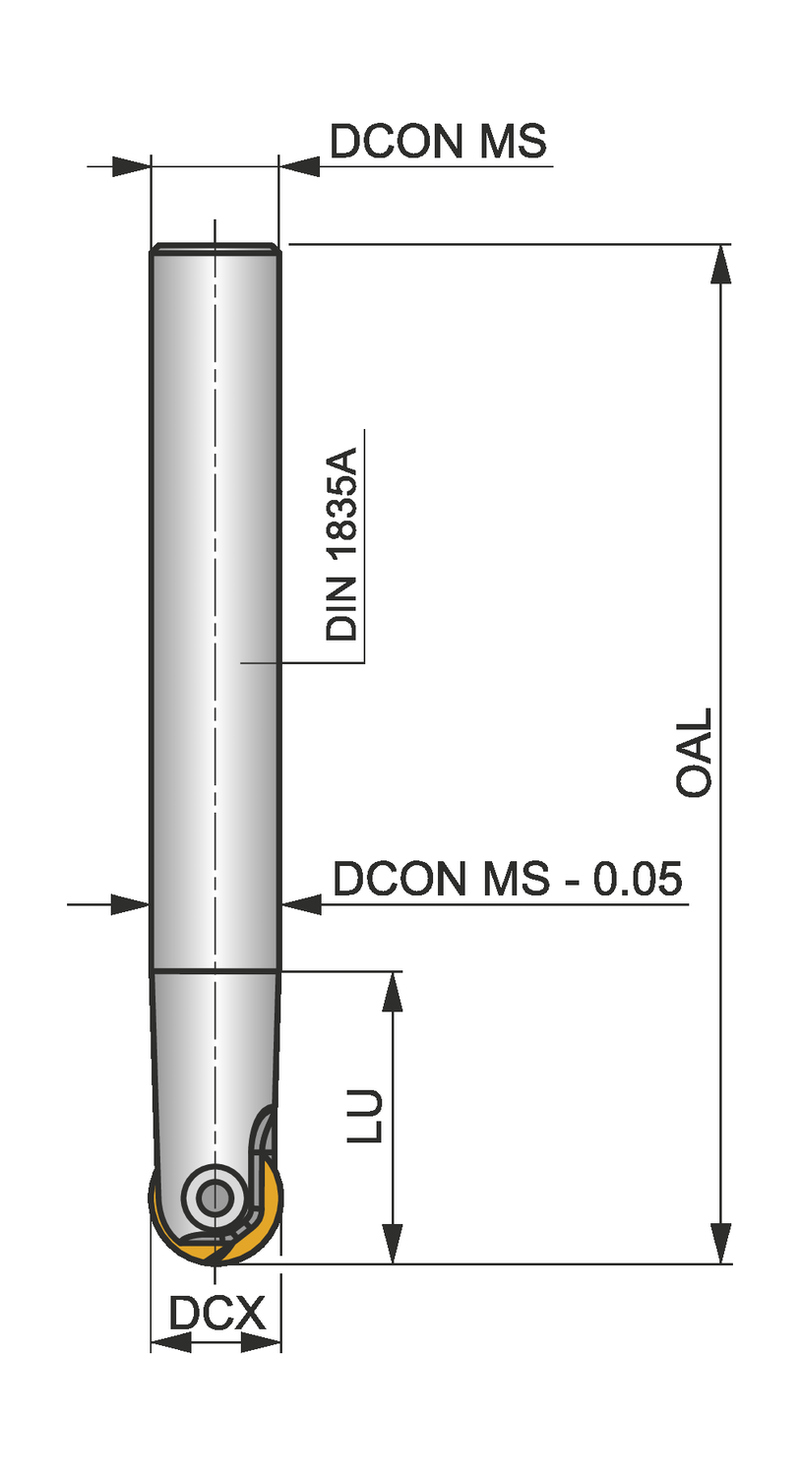

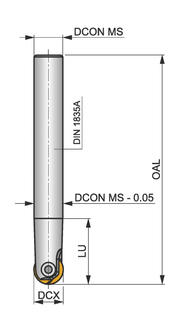

Dimensions
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)19.5 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756719
EAN3603602920850
File Type Download
10K2R060A16-SRC10-A — 3D Model STP Download
10K2R060A16-SRC10-A — Line Drawing PDF Download
