16K2R065A20-SRC16-A
16K2R065A20-SRC16-A
16K2R065A20-SRC16-A

16K2R065A20-SRC16-A

UGC DOR6756721
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$274.00 CAD - $274.00 CAD
$274.00 CAD
$274.00 CAD - $274.00 CAD
$274.00 CAD

Vendu en lots de : 1

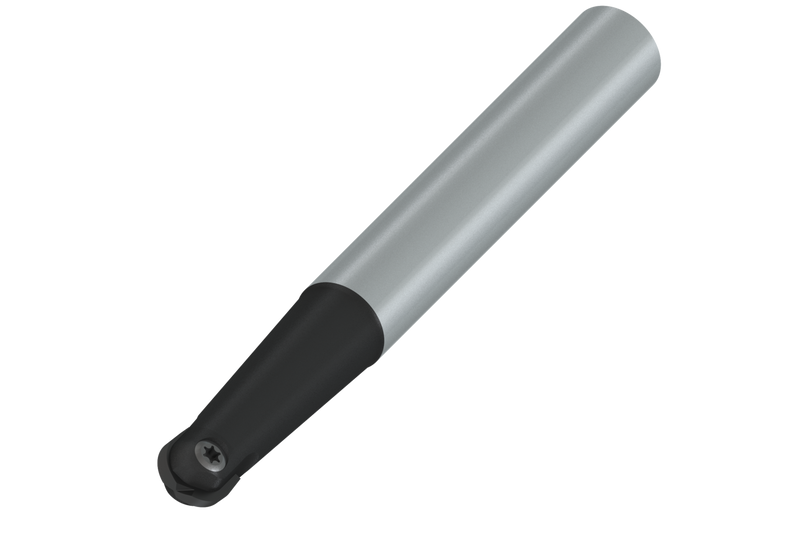

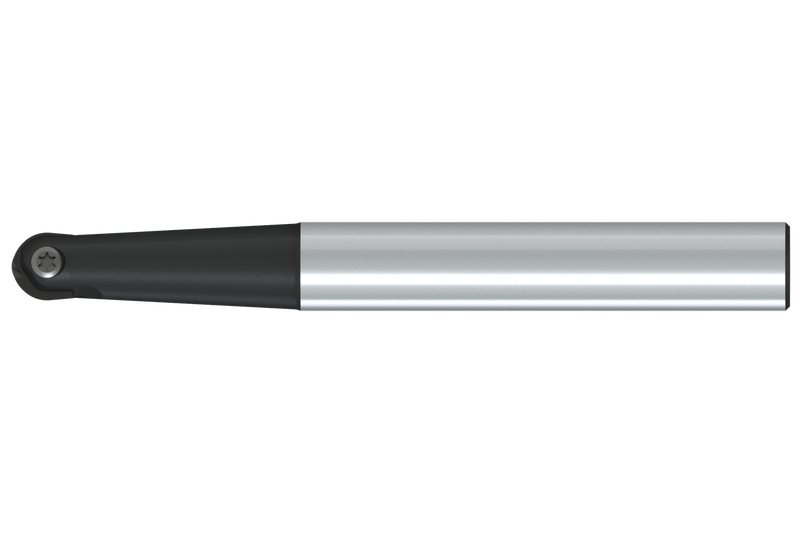

Fraise à copier qui utilise 1 insert simple face RC 16 ou RC 16-F, diamètre de coupe 16 mm avec queue cylindrique de 20 mm selon DIN 1835A, longueur fonctionnelle de 31,5 mm et longueur totale de 175 mm pour le fraisage par copiage avec une profondeur de coupe maximale de 0,6 à 3,2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16K2R065A20-SRC16-A
Product Number6756721
Product FamilyK2-SRC

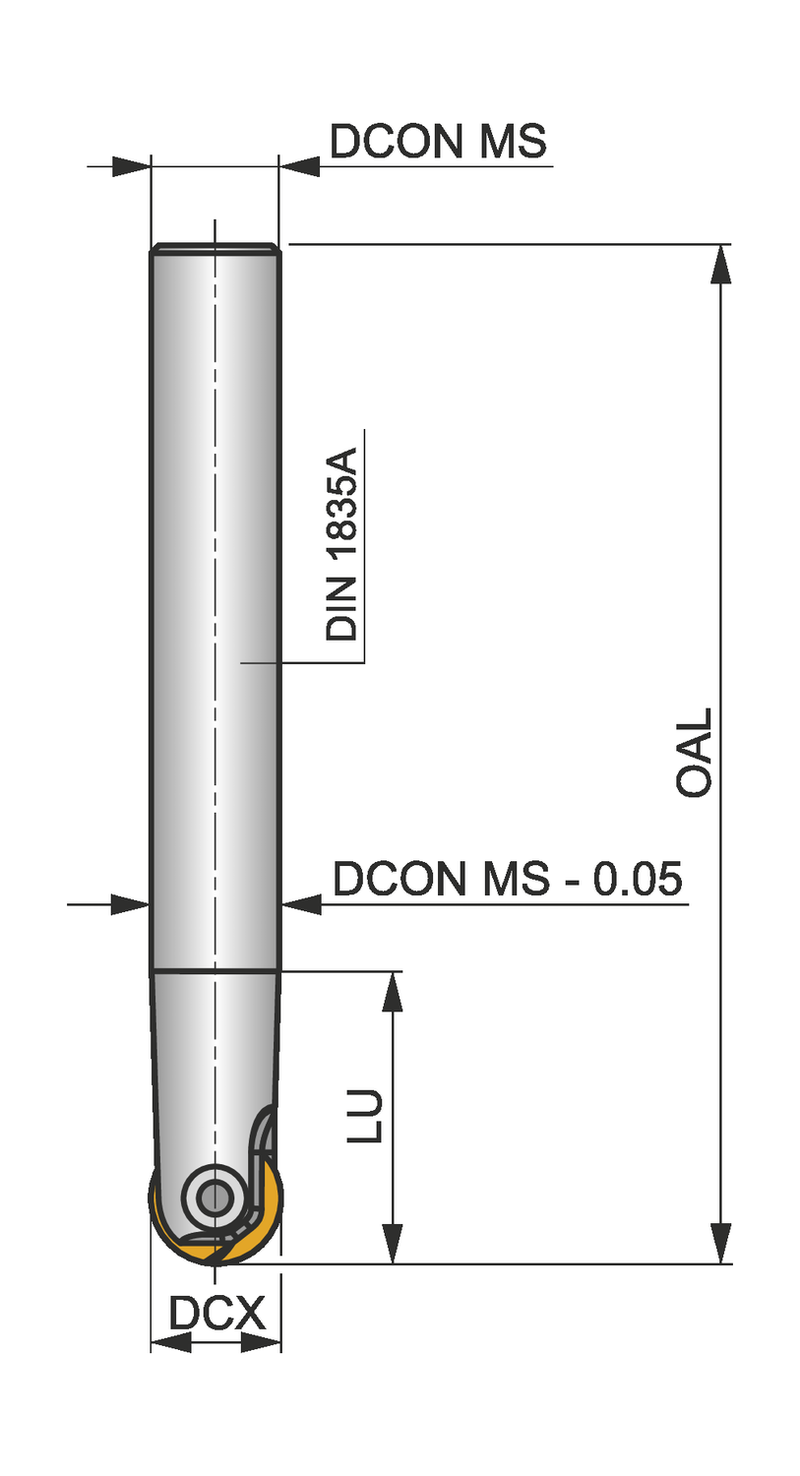

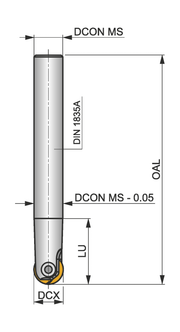

Dimensions
Overall Length — in (OAL)6.89"
Overall Length — mm (OAL)175.0 mm
Usable Length — mm (LU)31.5 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756721
EAN3603602920874
File Type Download
16K2R065A20-SRC16-A — 3D Model STP Download
16K2R065A20-SRC16-A — Line Drawing PDF Download
