PSSNL 3232 P 19
PSSNL 3232 P 19
PSSNL 3232 P 19

PSSNL 3232 P 19

UGC DOR6756738
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

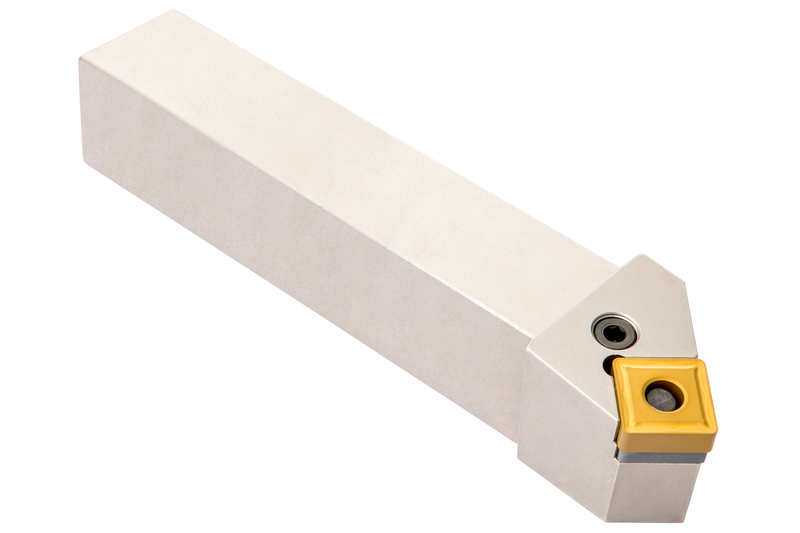

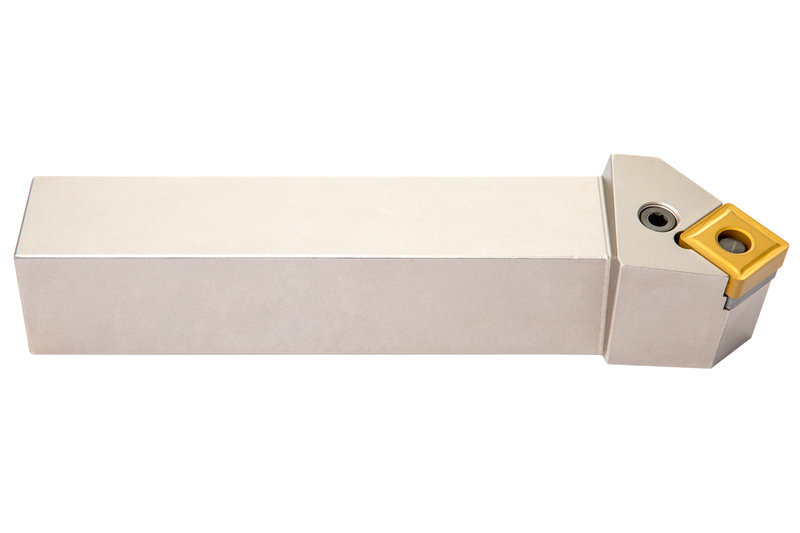

Outil de tournage à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 19,05mm, 6,35mm d'épaisseur (désignation ISO SN.. 1906.. ), coupe latérale à gauche à 45° avec un corps déporté, hauteur d'outil de 32mm x largeur de 32mm x longueur de 170mm pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, le tournage frontal sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNL 3232 P 19
Product Number6756738
Product FamilyPSSN(RL) EXT

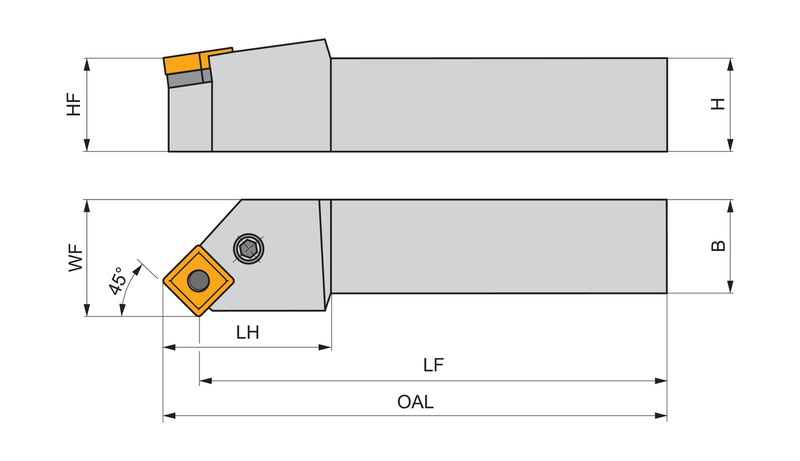

Dimensions
Overall Length — in (OAL)7.185"
Overall Length — mm (OAL)182.5 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756738
EAN3603602921048
File Type Download
PSSNL 3232 P 19 — 3D Model STP Download
PSSNL 3232 P 19 — 2D Model DXF Download
PSSNL 3232 P 19 — Line Drawing PDF Download
