PCLNL 3225 P 12
PCLNL 3225 P 12
PCLNL 3225 P 12

PCLNL 3225 P 12

UGC DOR6756740
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

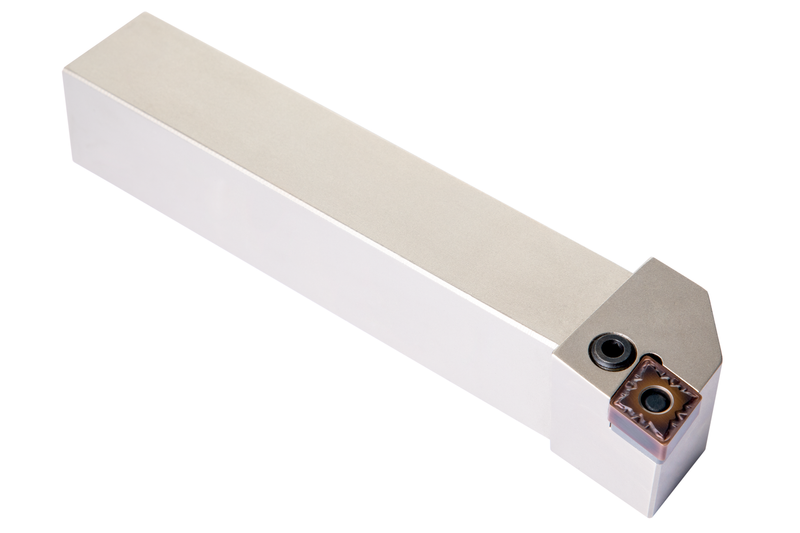

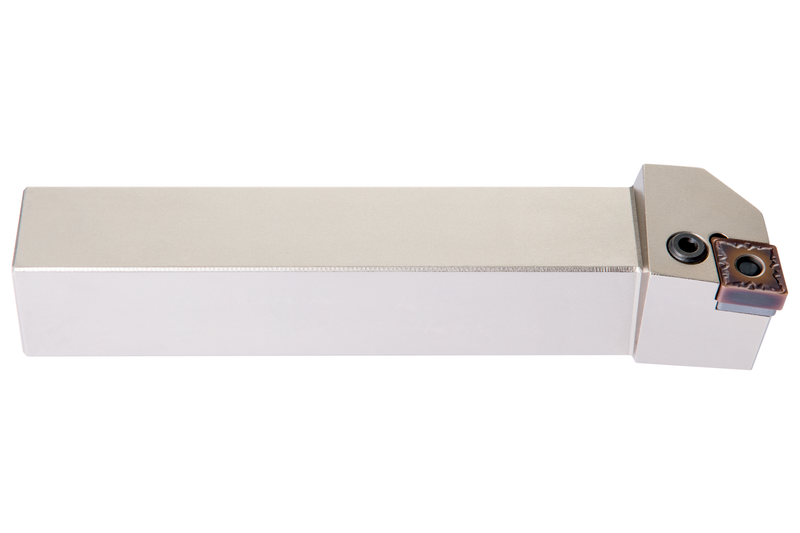

Porte-outil à levier pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe latérale et frontale gauche de 95° avec corps déporté, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour chariotage conique, chariotage et dressage avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCLNL 3225 P 12
Product Number6756740
Product FamilyPCLN(RL) EXT

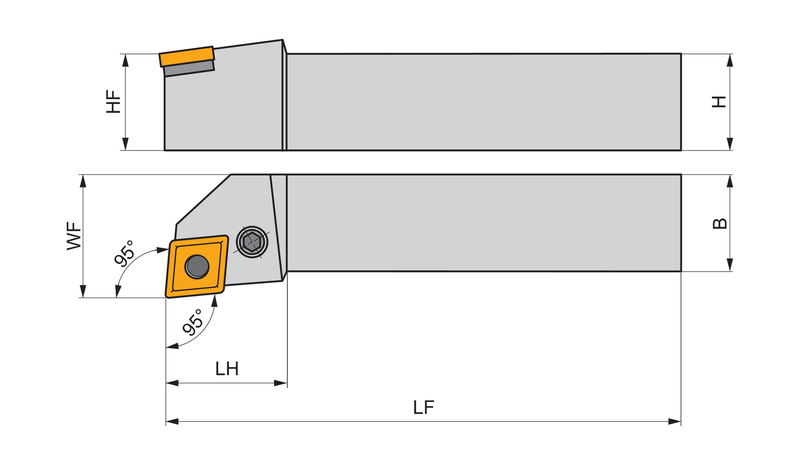

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756740
EAN3603602921062
File Type Download
PCLNL 3225 P 12 — 3D Model STP Download
PCLNL 3225 P 12 — 2D Model DXF Download
PCLNL 3225 P 12 — Line Drawing PDF Download
