PCBNL 3232 P 19
PCBNL 3232 P 19
PCBNL 3232 P 19

PCBNL 3232 P 19

UGC DOR6756742
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

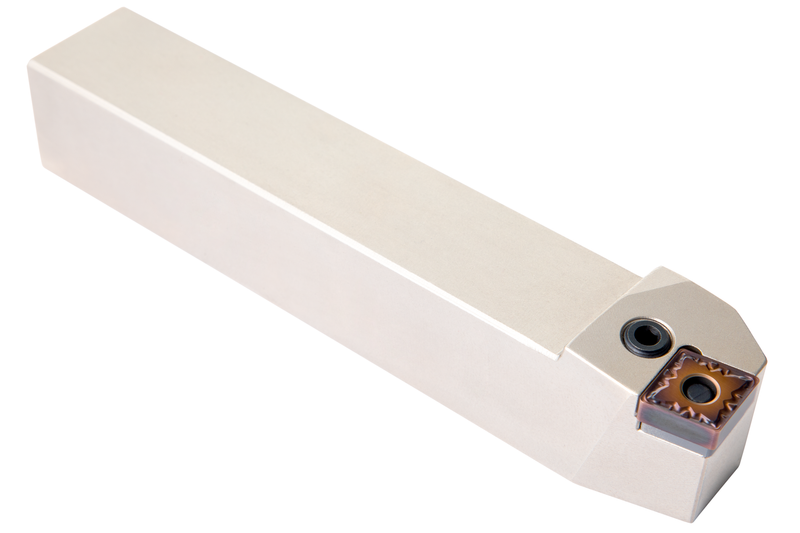

Outil de chariotage à levier pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO CN.. 1906.. ), coupe latérale à gauche de 75° avec queue droite, hauteur d'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour tournage conique et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNL 3232 P 19
Product Number6756742
Product FamilyPCBN(RL) EXT

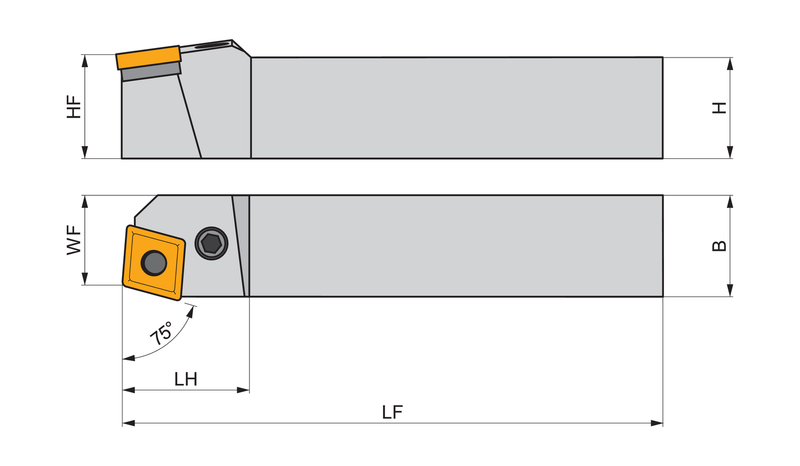

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756742
EAN3603602921086
File Type Download
PCBNL 3232 P 19 — 3D Model STP Download
PCBNL 3232 P 19 — 2D Model DXF Download
PCBNL 3232 P 19 — Line Drawing PDF Download
