PDJNR 2020 K 11
PDJNR 2020 K 11
PDJNR 2020 K 11

PDJNR 2020 K 11

UGC DOR6756750
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

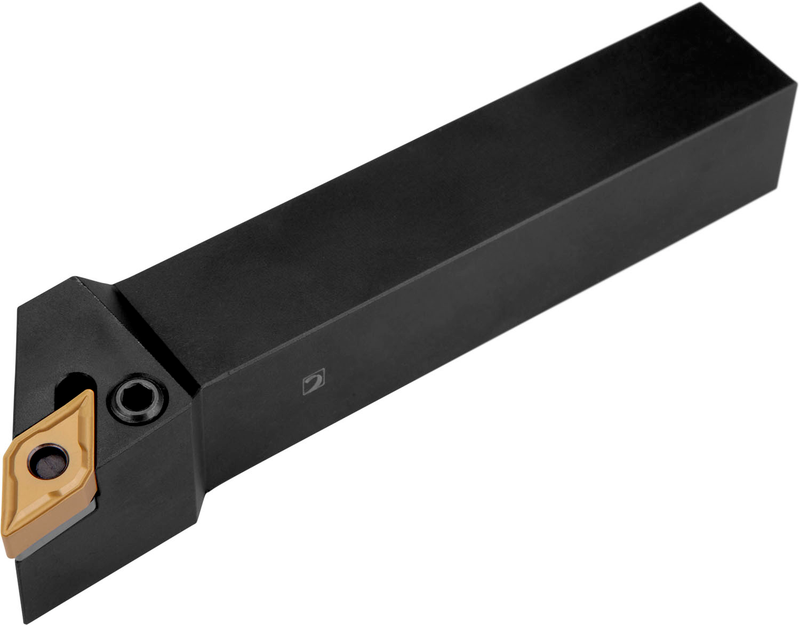

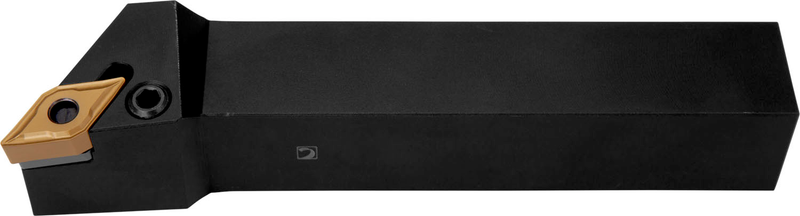

Porte-outil à levier pour plaquette négative rhomboïdale de 55° avec un cercle inscrit de 9,525 mm de diamètre et de 4,76 mm d'épaisseur (désignation ISO DN.. 1104..), coupe latérale à droite de 93° avec corps déporté, hauteur de l'outil 20 mm x largeur 20 mm x longueur 125 mm pour le chariotage conique, le chariotage de contournement unidirectionnel et multidirectionnel et le chariotage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDJNR 2020 K 11
Product Number6756750
Product FamilyPDJN(RL) EXT

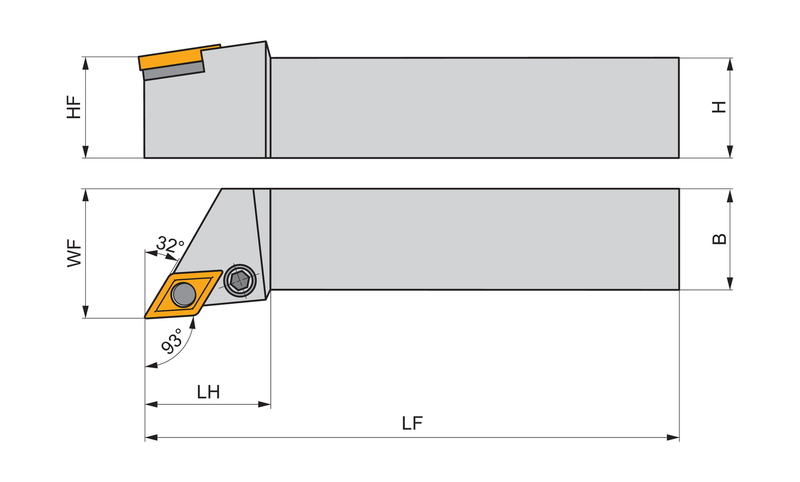

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756750
EAN3603602921161
File Type Download
PDJNR 2020 K 11 — 3D Model STP Download
PDJNR 2020 K 11 — 2D Model DXF Download
PDJNR 2020 K 11 — Line Drawing PDF Download
