PDNNL 2020 K 11
PDNNL 2020 K 11
PDNNL 2020 K 11

PDNNL 2020 K 11

UGC DOR6756753
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

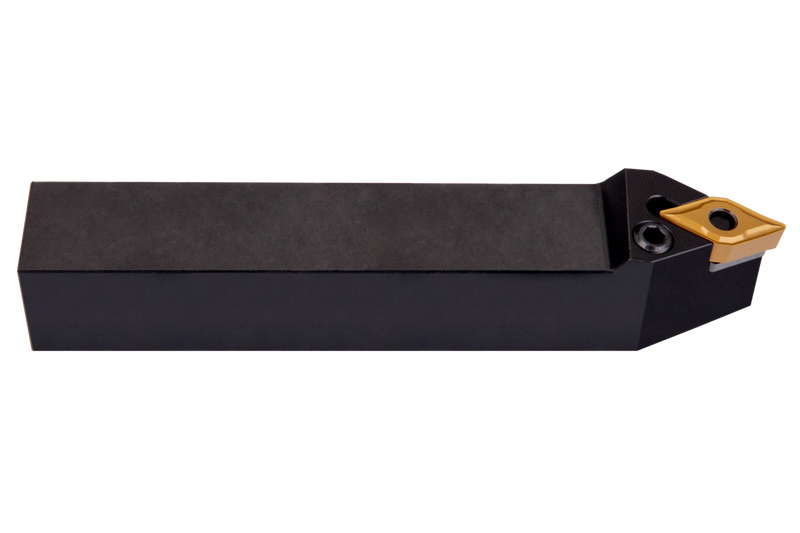

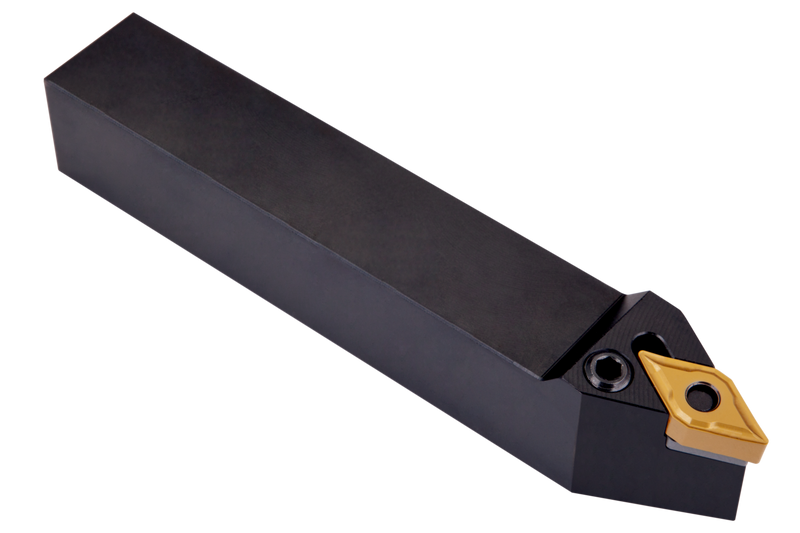

Outil de tournage à levier pour plaquette négative en losange 55° avec cercle inscrit de 9,525mm de diamètre, 4,76mm d'épaisseur (désignation ISO DN.. 1104.. ), coupe à gauche 62°30' avec queue droite, hauteur d'outil 20mm x largeur 20mm x longueur 125mm pour le tournage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNL 2020 K 11
Product Number6756753
Product FamilyPDNN(RL) EXT

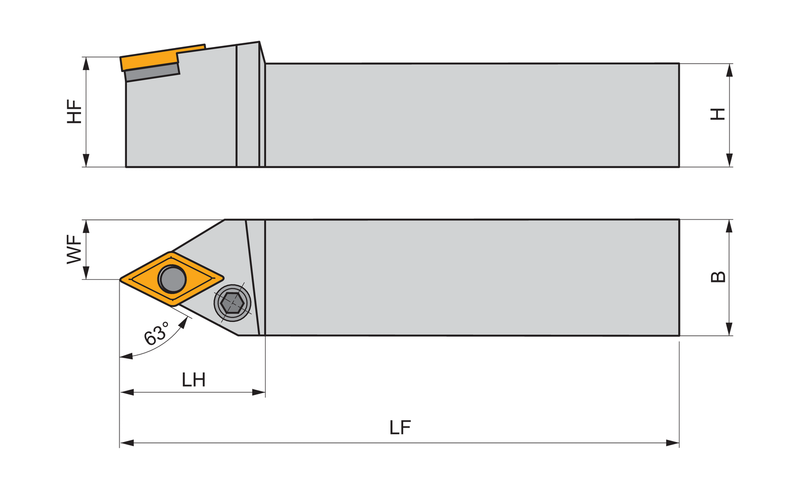

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756753
EAN3603602921192
File Type Download
PDNNL 2020 K 11 — 3D Model STP Download
PDNNL 2020 K 11 — 2D Model DXF Download
PDNNL 2020 K 11 — Line Drawing PDF Download
