PDNNL 2525 M 11
PDNNL 2525 M 11
PDNNL 2525 M 11

PDNNL 2525 M 11

UGC DOR6756754
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

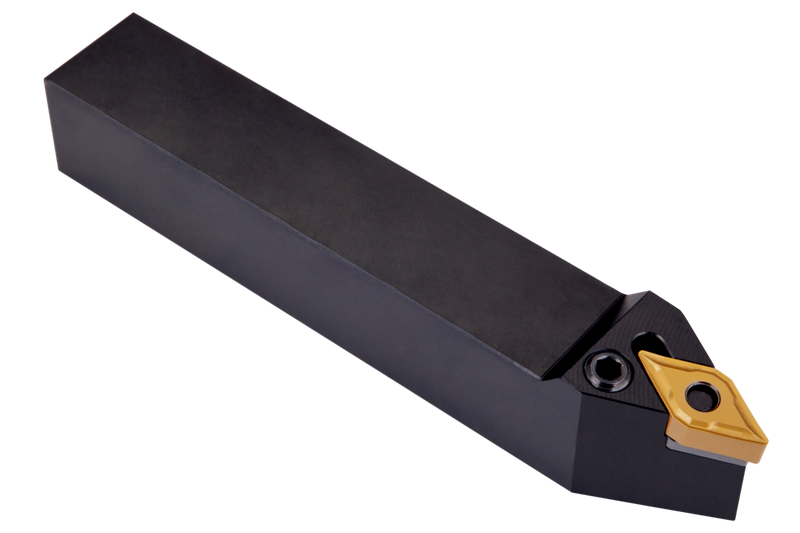

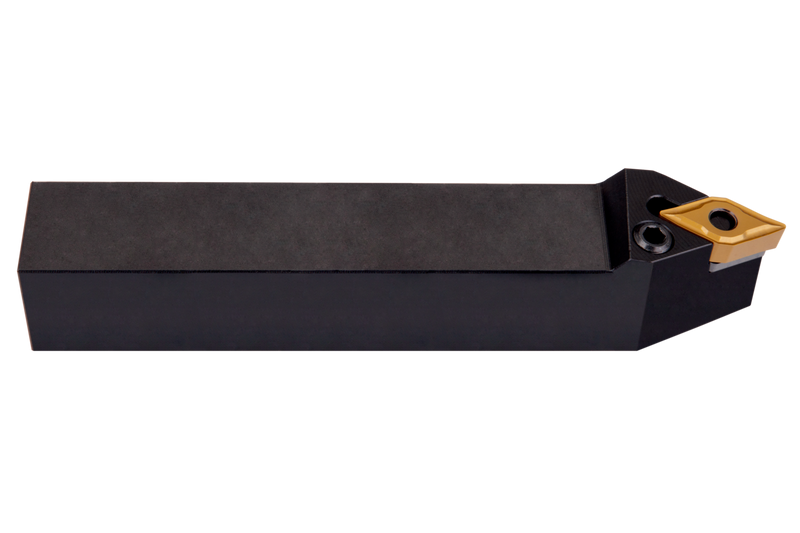

Outil de tournage à levier pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO DN.. 1104.. ), coupe à gauche 62°30' avec queue droite, hauteur de l'outil 25 mm x largeur 25 mm x longueur 150 mm pour tournage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNL 2525 M 11
Product Number6756754
Product FamilyPDNN(LR) EXT

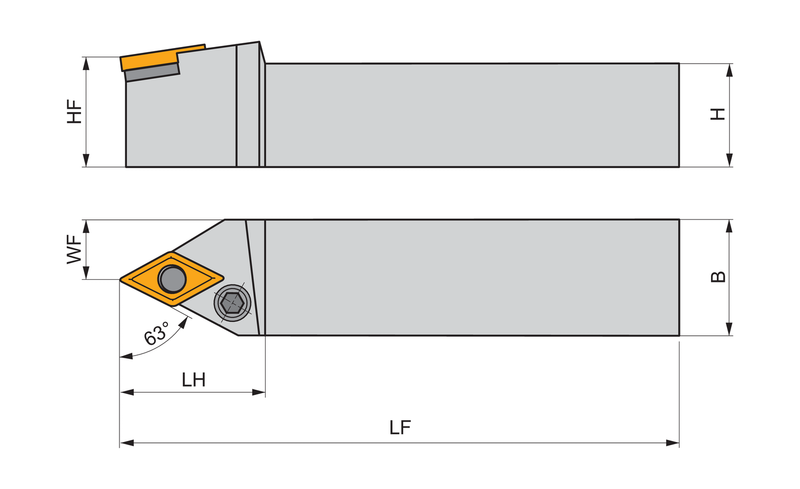

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756754
EAN3603602921208
File Type Download
PDNNL 2525 M 11 — 3D Model STP Download
PDNNL 2525 M 11 — 2D Model DXF Download
PDNNL 2525 M 11 — Line Drawing PDF Download
