PDNNR 2020 K 11
PDNNR 2020 K 11
PDNNR 2020 K 11

PDNNR 2020 K 11

UGC DOR6756755
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

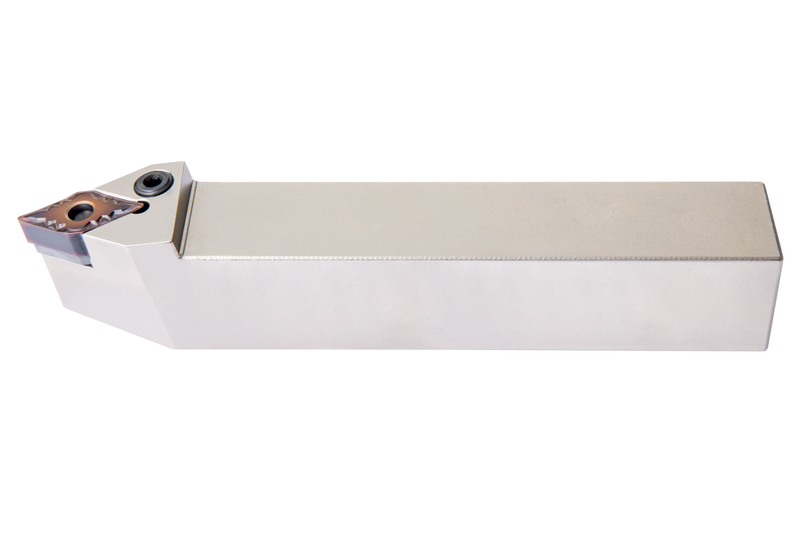

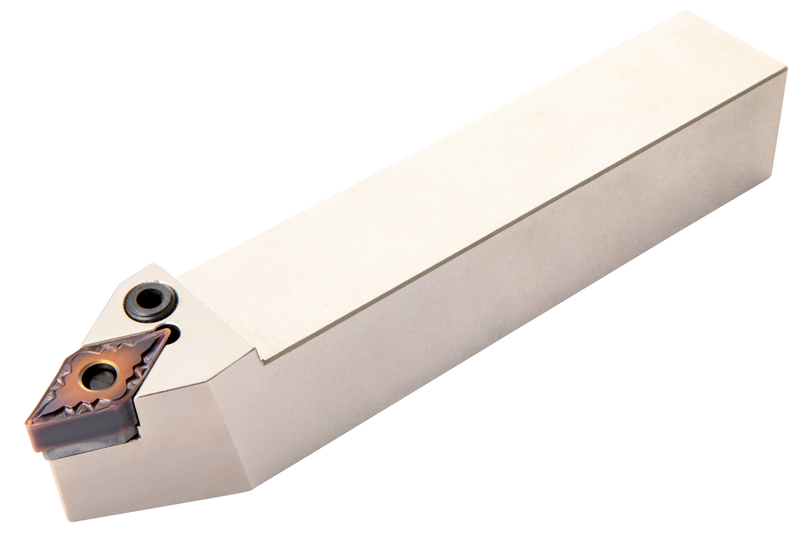

Outil de chariotage à levier pour une plaquette négative en losange 55° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm (désignation ISO DN... 1104...), coupe latérale droite de 62°30' avec queue droite, hauteur d'outil 20 mm x largeur 20 mm x longueur 125 mm pour le chariotage en copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNR 2020 K 11
Product Number6756755
Product FamilyPDNN(RL) EXT

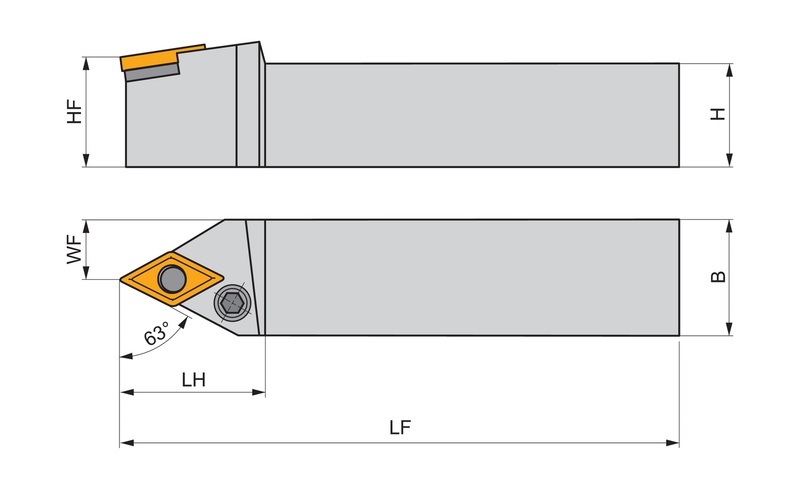

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756755
EAN3603602921215
File Type Download
PDNNR 2020 K 11 — 3D Model STP Download
PDNNR 2020 K 11 — 2D Model DXF Download
PDNNR 2020 K 11 — Line Drawing PDF Download
