PDNNR 2525 M 11
PDNNR 2525 M 11
PDNNR 2525 M 11

PDNNR 2525 M 11

UGC DOR6756756
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

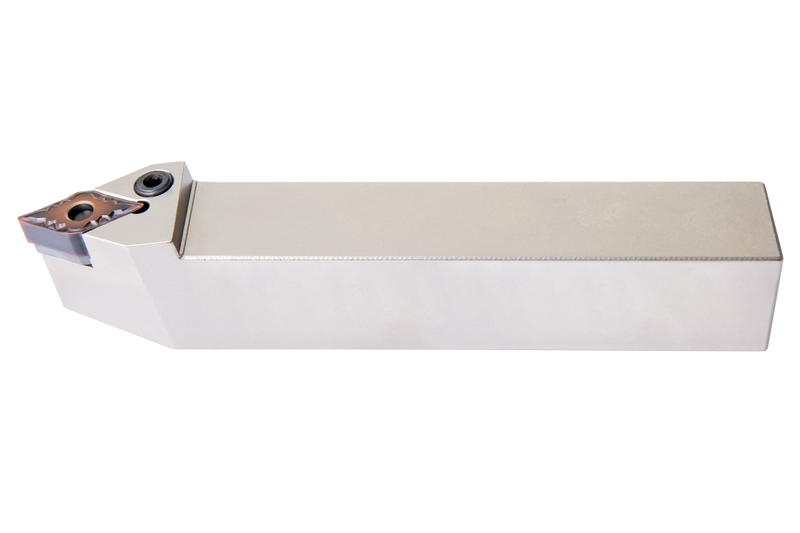

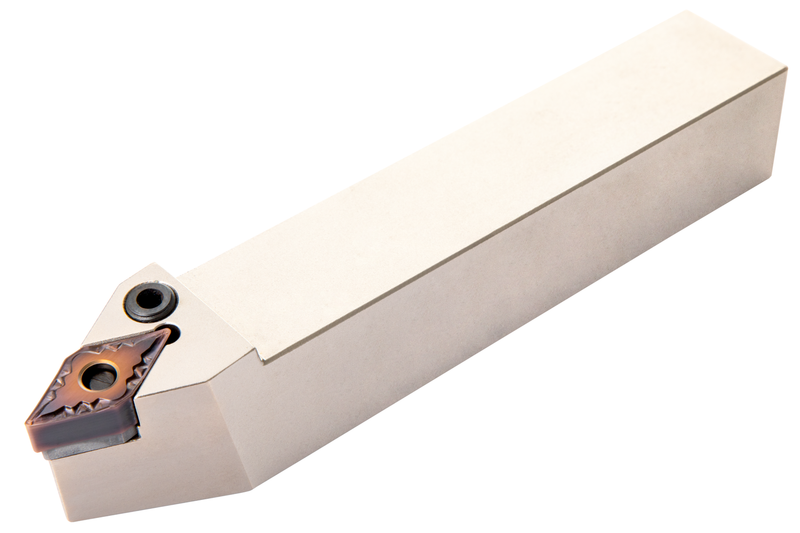

Porte-outil à levier pour plaquette négative de forme rhomboïdale 55° avec un cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO DN.. 1104..), à droite 62°30' d'angle de coupe latérale avec un corps droit, hauteur de l'outil 25mm x largeur 25mm x 150mm de long pour le copiage simple et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNR 2525 M 11
Product Number6756756
Product FamilyPDNN(RL) EXT

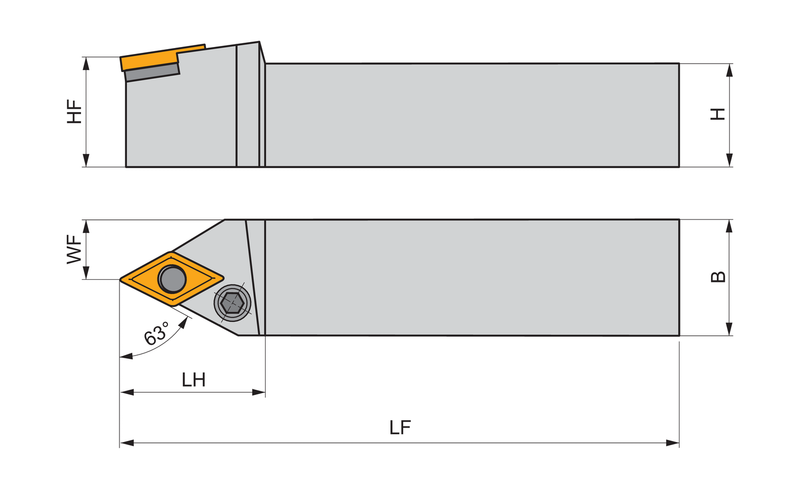

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756756
EAN3603602921222
File Type Download
PDNNR 2525 M 11 — 3D Model STP Download
PDNNR 2525 M 11 — 2D Model DXF Download
PDNNR 2525 M 11 — Line Drawing PDF Download
