MVJNR 2020 K 16-A
MVJNR 2020 K 16-A
MVJNR 2020 K 16-A

MVJNR 2020 K 16-A

UGC DOR6756763
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$190.00 CAD - $190.00 CAD
$190.00 CAD
$190.00 CAD - $190.00 CAD
$190.00 CAD

Vendu en lots de : 1

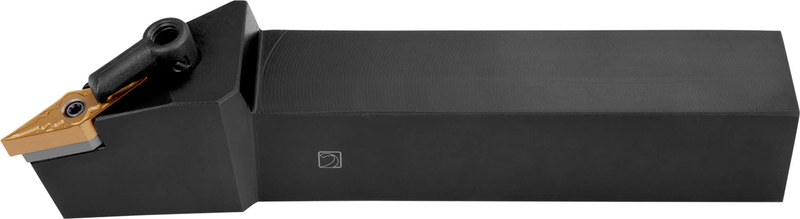

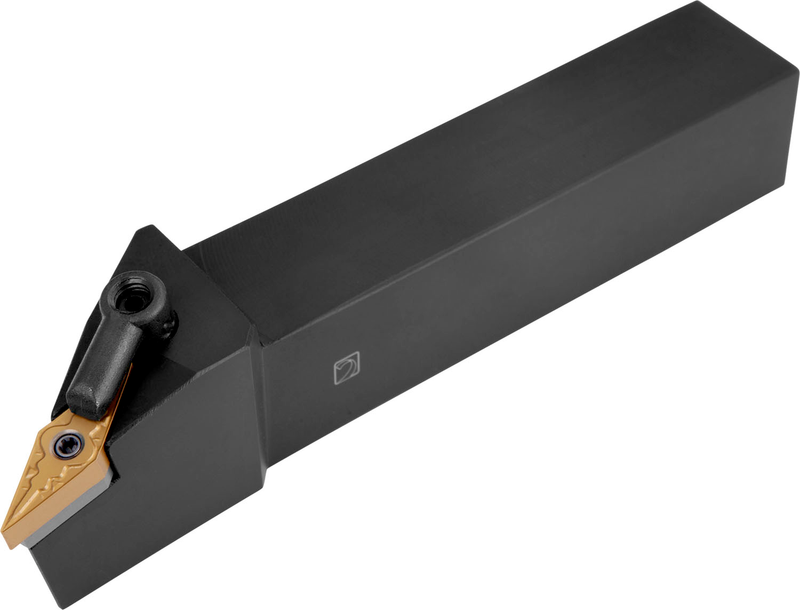

Outil de tournage multi-blocage pour insert négatif en losange à 35° avec un diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur (désignation ISO VN.. 1604.. ), coupe à droite à 93° avec un corps déporté, hauteur d'outil de 20 mm x largeur de 20 mm x 125 mm de long pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)MVJNR 2020 K 16-A
Product Number6756763
Product FamilyMVJN(RL) EXT

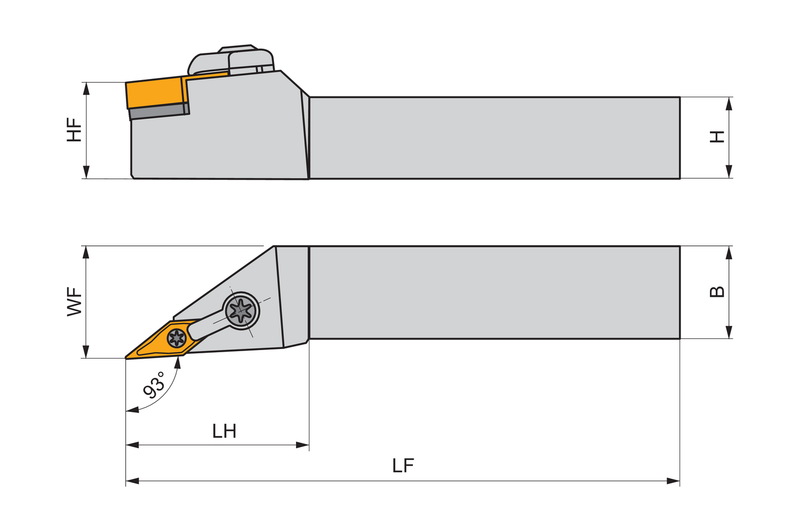

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756763
EAN3603602921291
File Type Download
MVJNR 2020 K 16-A — Line Drawing PDF Download
