MVJNR 2525 M 16-A
MVJNR 2525 M 16-A
MVJNR 2525 M 16-A

MVJNR 2525 M 16-A

UGC DOR6756764
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

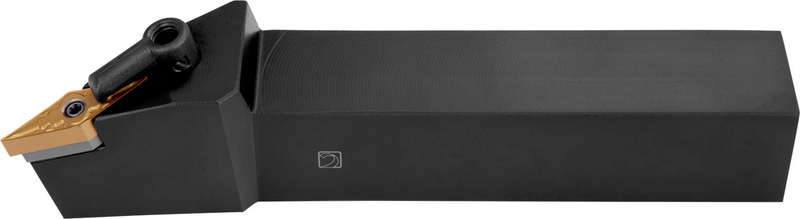

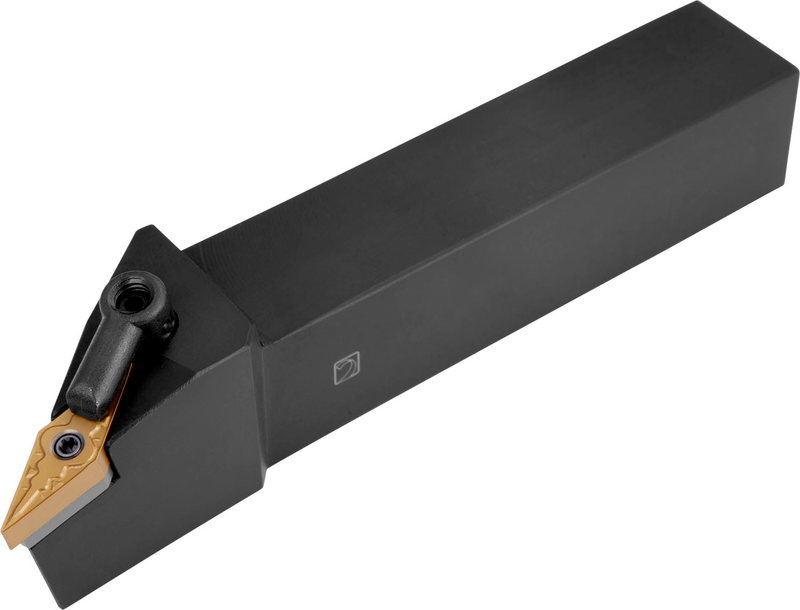

Outil de tournage multi-blocs pour insert négatif en losange de 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VN.. 1604.. ), coupe à droite 93° avec un corps déporté, hauteur d'outil 25mm x largeur 25mm x longueur 150mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)MVJNR 2525 M 16-A
Product Number6756764
Product FamilyMVJN(RL) EXT

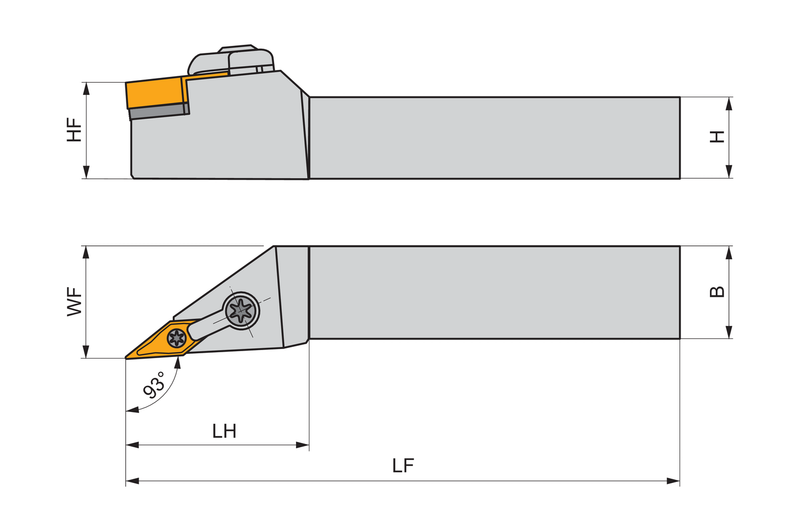

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756764
EAN3603602921307
File Type Download
MVJNR 2525 M 16-A — Line Drawing PDF Download
