SCLCL 1616 H 09
SCLCL 1616 H 09
SCLCL 1616 H 09

SCLCL 1616 H 09

UGC DOR6756768
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

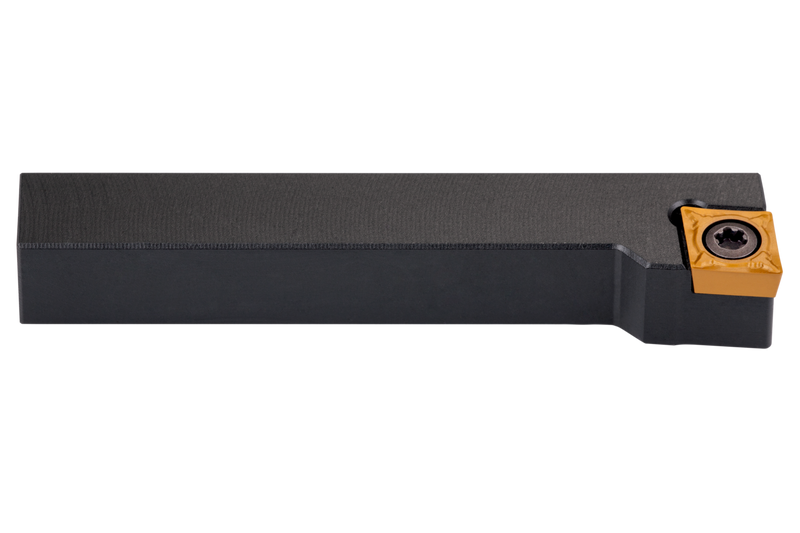

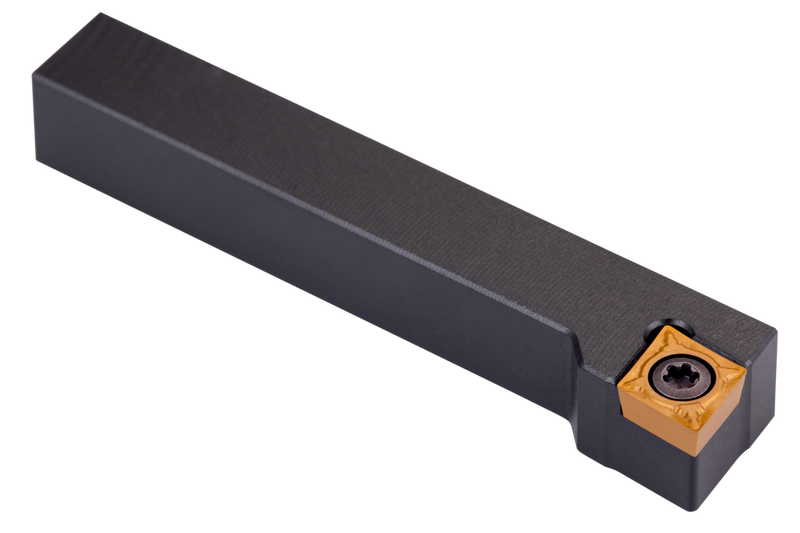

Outil de tournage à levier pour plaquette positive rhomboïde à 80° avec un cercle inscrit de 9,525 mm de diamètre, 3,97 mm d'épaisseur (désignation ISO CC.. 09T3.. ), angle d'attaque de 95° à gauche, queue déportée, hauteur 16 mm x largeur 16 mm x longueur 100 mm pour le chanfreinage, le tournage conique, le dressage avec ou sans épaulement et le chariotage avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCLCL 1616 H 09
Product Number6756768
Product FamilyCPPC(RL) EXT

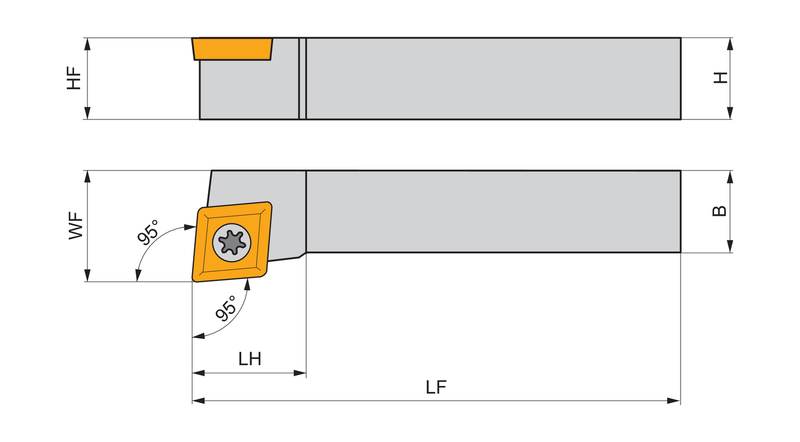

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756768
EAN3603602921345
File Type Download
SCLCL 1616 H 09 — 3D Model STP Download
SCLCL 1616 H 09 — Line Drawing PDF Download
