SIR 2532 S 16
SIR 2532 S 16
SIR 2532 S 16

SIR 2532 S 16

UGC DOR6756775
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$376.00 CAD - $376.00 CAD
$376.00 CAD
$376.00 CAD - $376.00 CAD
$376.00 CAD

Vendu en lots de : 1

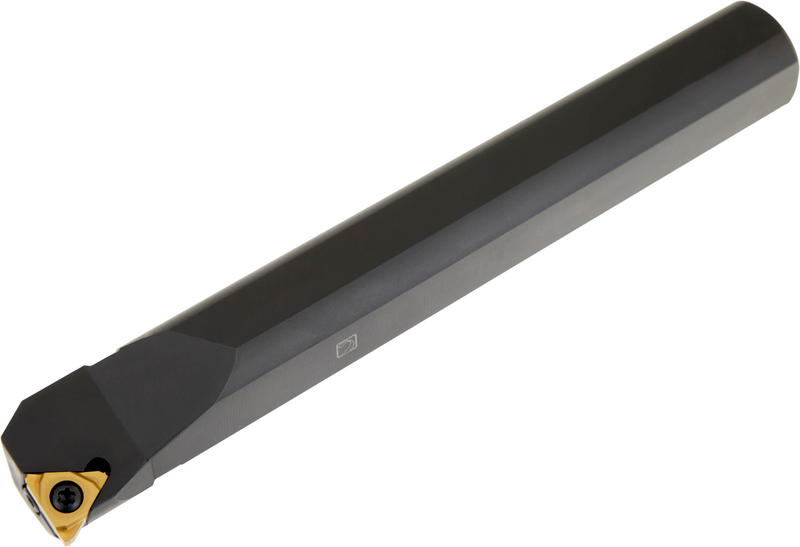

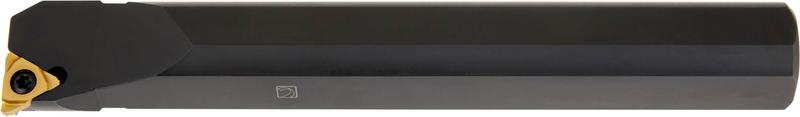

Barre d'alésage à fileter à plaquette vissée avec angle d'hélice de 1,5° pour la fixation d'un insert triangulaire d'un diamètre de cercle inscrit de 9,525 mm (désignation TN 16NR...), version standard droite avec queue cylindrique en acier sans trou d'arrosage, diamètre 32 mm et longueur totale 250 mm pour le filetage intérieur, la réalisation de gorges pour circlips et de gorges pour joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR 2532 S 16
Product Number6756775
Product FamilySI(LR)

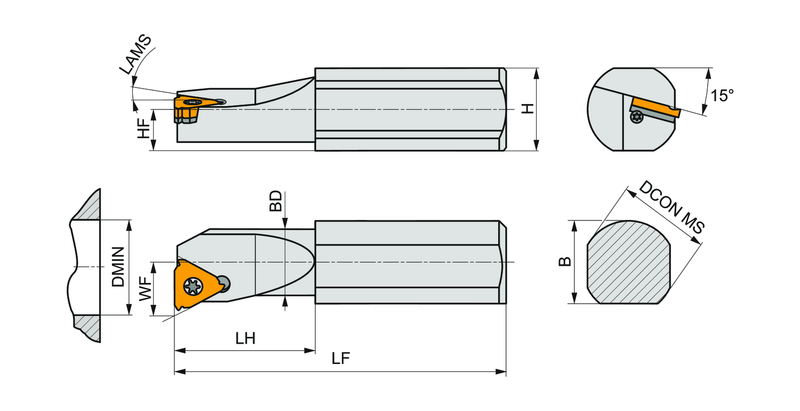

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)0.984 mm
Min. Bore Dia. — in (DMIN)1.417"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756775
EAN3603602921413
File Type Download
SIR 2532 S 16 — 3D Model STP Download
SIR 2532 S 16 — 2D Model DXF Download
SIR 2532 S 16 — Line Drawing PDF Download
