SSDCN 1616 H 09
SSDCN 1616 H 09
SSDCN 1616 H 09

SSDCN 1616 H 09

UGC DOR6756802
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

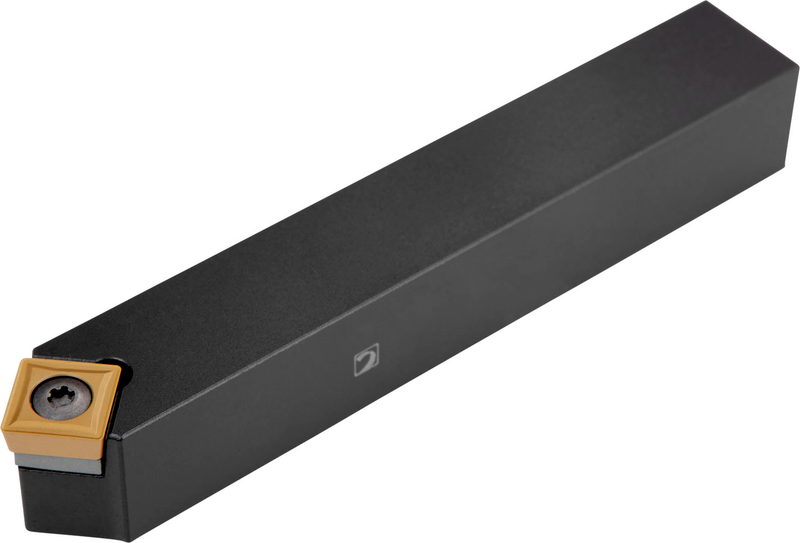

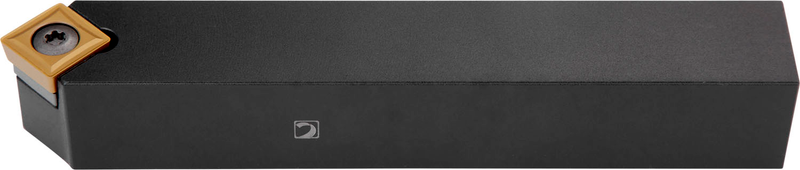

Outil de tournage à bride à vis pour insert positif carré avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO SC.. 09T3..), main neutre, coupe latérale à 45° avec queue droite, hauteur d'outil de 16 mm x largeur de 16 mm x longueur de 100 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SSDCN 1616 H 09
Product Number6756802
Product FamilySSDCN EXT

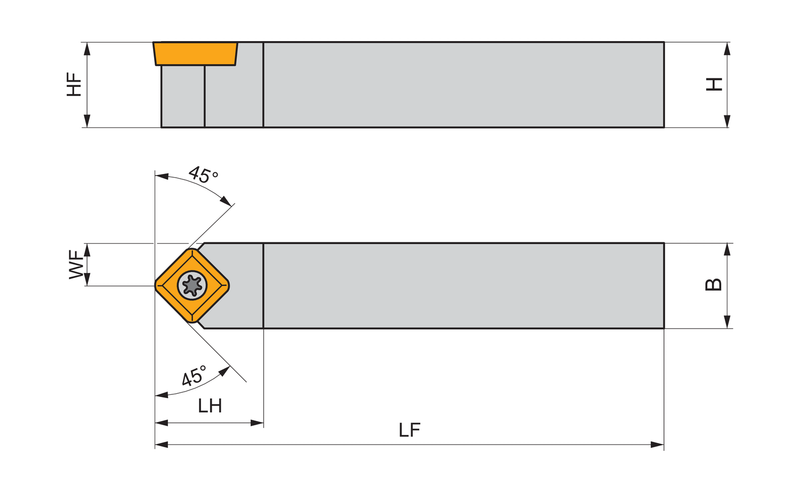

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756802
EAN3603602921680
File Type Download
SSDCN 1616 H 09 — 3D Model STP Download
SSDCN 1616 H 09 — Line Drawing PDF Download
