SDNCN 1616 H 11
SDNCN 1616 H 11
SDNCN 1616 H 11

SDNCN 1616 H 11

UGC DOR6756803
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

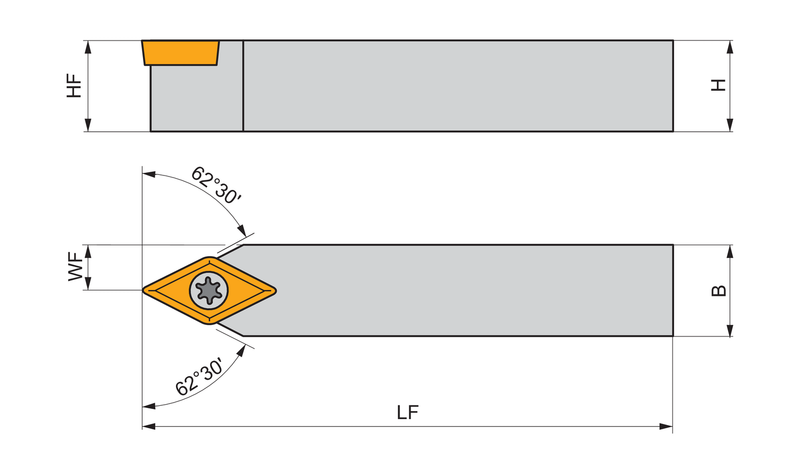

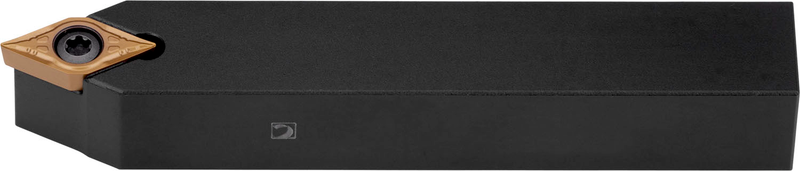

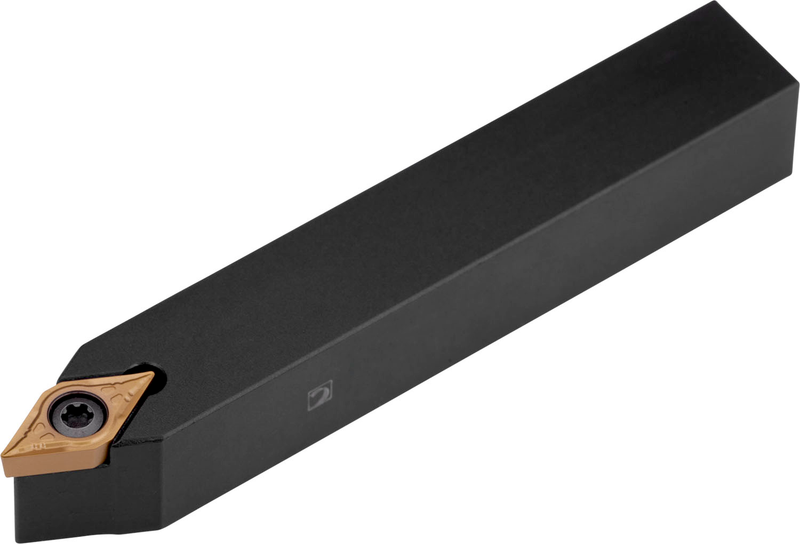

Outil de tournage à levier pour plaquette positive rhomboïde à 55° avec un cercle inscrit de 9,525 mm de diamètre et de 3,97 mm d'épaisseur (désignation ISO DC.. 11T3.. ), outil neutre, angle de coupe latéral de 62°30' avec queue droite, 16 mm de hauteur x 16 mm de largeur x 100 mm de longueur pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDNCN 1616 H 11
Product Number6756803
Product FamilySDNCN EXT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756803
EAN3603602921697
File Type Download
SDNCN 1616 H 11 — 3D Model STP Download
SDNCN 1616 H 11 — Line Drawing PDF Download
