SRDCN 1616 H 06
SRDCN 1616 H 06
SRDCN 1616 H 06

SRDCN 1616 H 06

UGC DOR6756811
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

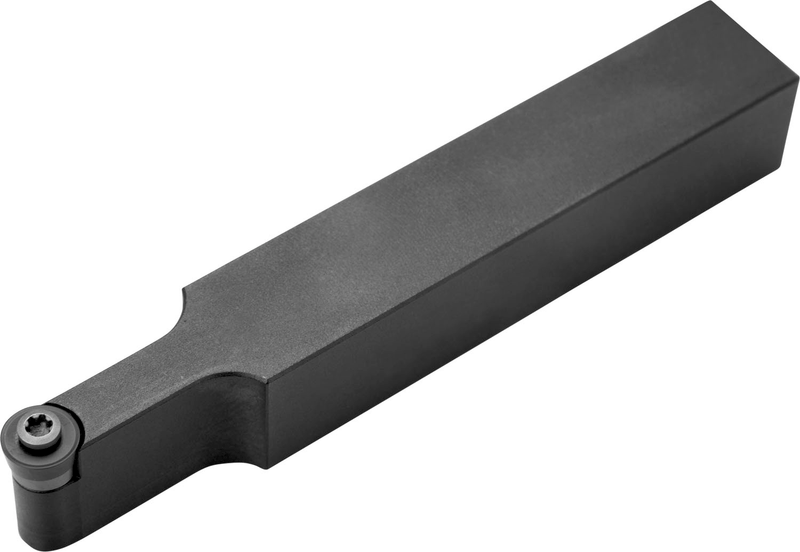

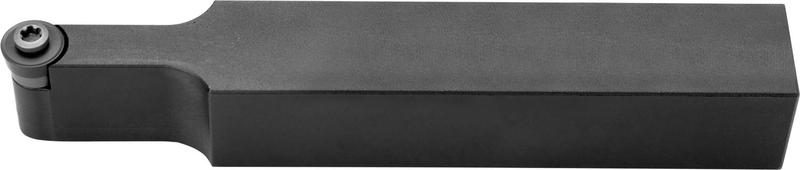

Outil de tournage à levier de serrage pour une plaquette ronde positive de 6 mm de diamètre, 2,38 mm d'épaisseur (désignation ISO RC.. 0602MO), de main neutre, pour chariotage, dressage et copiage à la contre-pointe, hauteur d'outil de 16 mm x largeur de 16 mm x longueur de 100 mm, pour le tournage conique, le copiage monodirectionnel et multidirectionnel, et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 1616 H 06
Product Number6756811
Product FamilySRDCN EXT

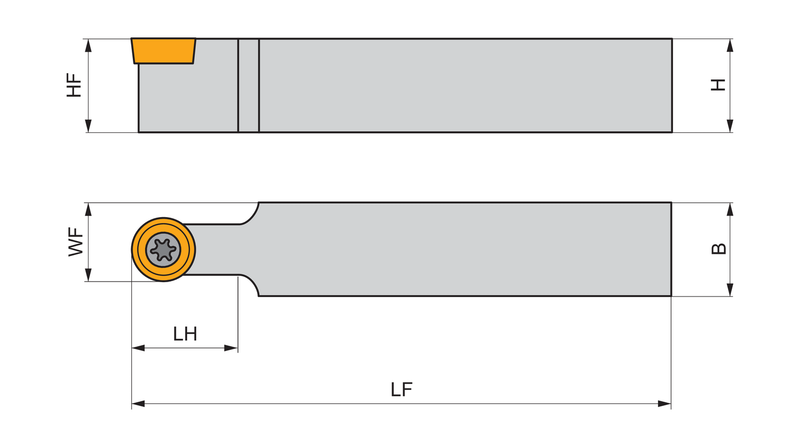

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756811
EAN3603602921772
File Type Download
SRDCN 1616 H 06 — 3D Model STP Download
SRDCN 1616 H 06 — Line Drawing PDF Download
