63A05R-S45OD06D
63A05R-S45OD06D
63A05R-S45OD06D

63A05R-S45OD06D

UGC DOR6756816
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$816.00 CAD - $816.00 CAD
$816.00 CAD
$816.00 CAD - $816.00 CAD
$816.00 CAD

Vendu en lots de : 1

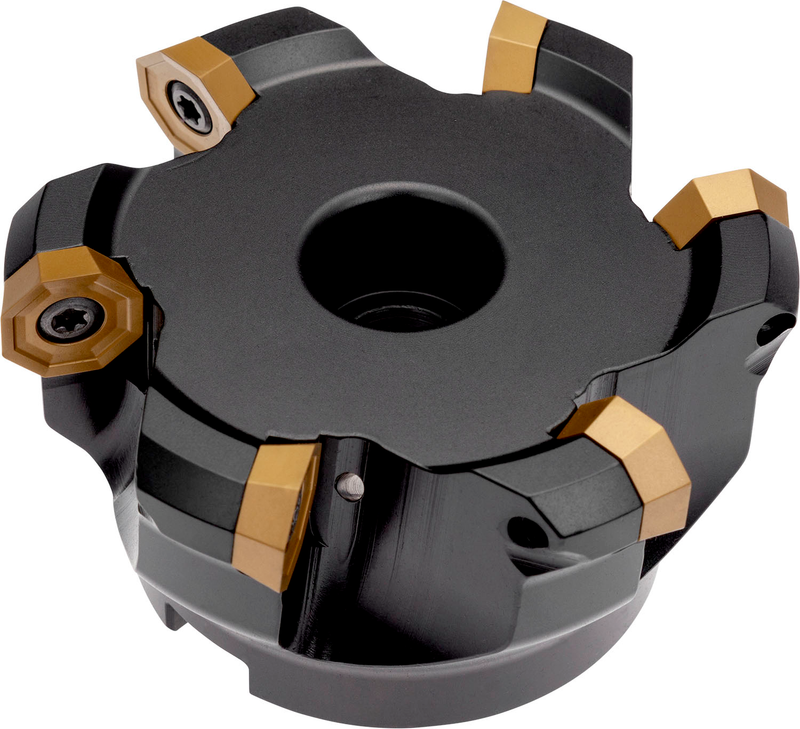

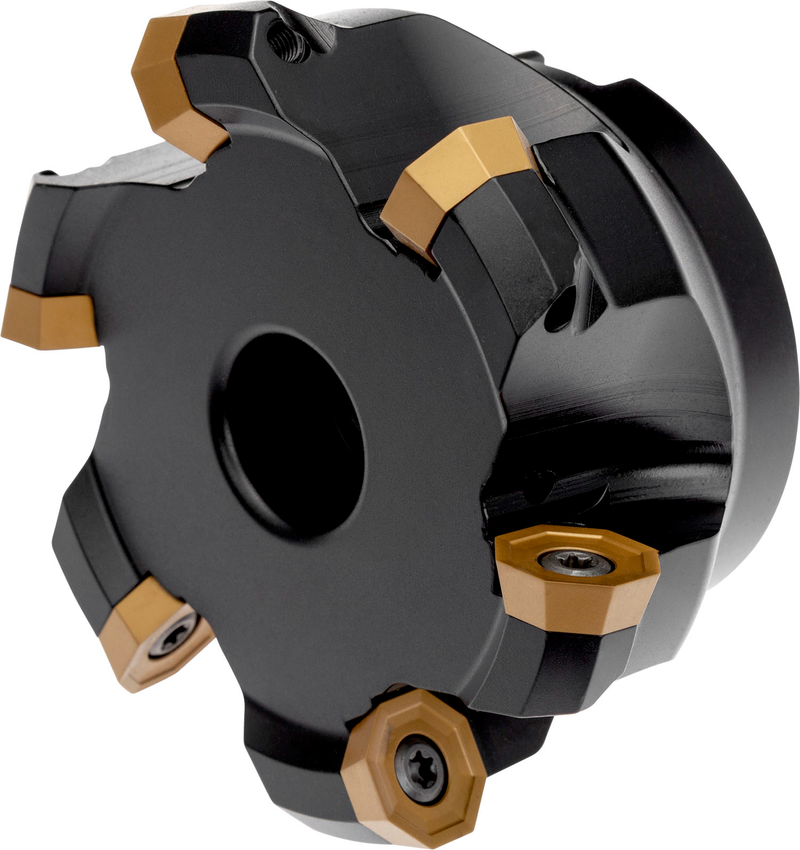

Fraise à surfacer à géométrie positive/négative utilisant 5 plaquettes simple-face OD.. 0605ZZ.. ou RP.. 1505MO.., diamètre de coupe 63 à maximum 72,5 mm avec un angle d'attaque de 45° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage par l'intérieur et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,1 (8,6) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A05R-S45OD06D
Product Number6756816
Product FamilySOD06D
Insert Geometry
Depth of Cut Max — mm (APMX)3.1 mm

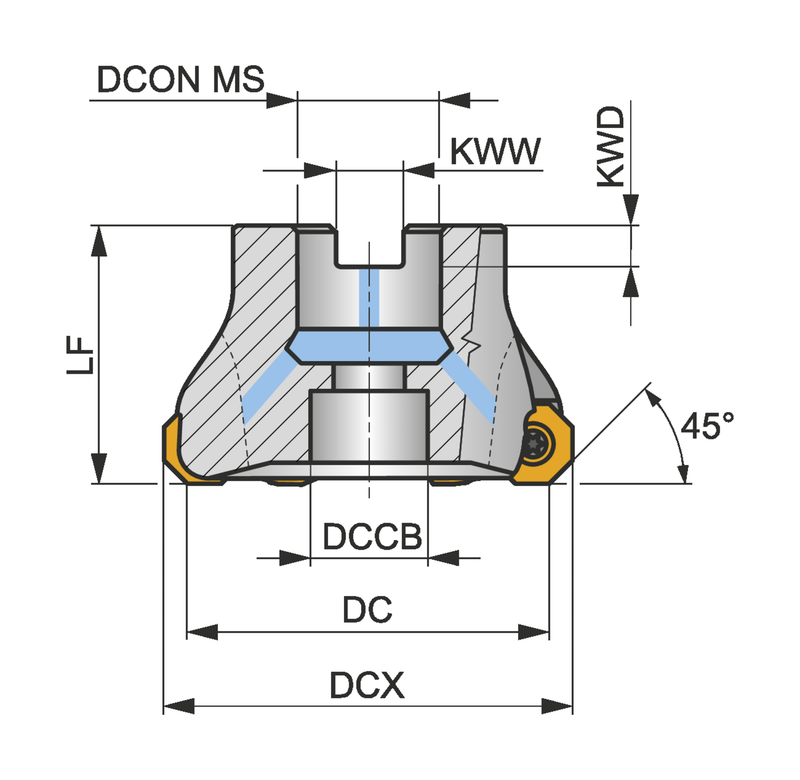

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSOD06D
ShankFraise à surfacer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6756816
EAN3603602921826
File Type Download
63A05R-S45OD06D — 3D Model STP Download
63A05R-S45OD06D — 2D Model DXF Download
63A05R-S45OD06D — Line Drawing PDF Download
