80A06R-S45OD06D
80A06R-S45OD06D
80A06R-S45OD06D

80A06R-S45OD06D

UGC DOR6756817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,048.00 CAD - $1,048.00 CAD
$1,048.00 CAD
$1,048.00 CAD - $1,048.00 CAD
$1,048.00 CAD

Vendu en lots de : 1

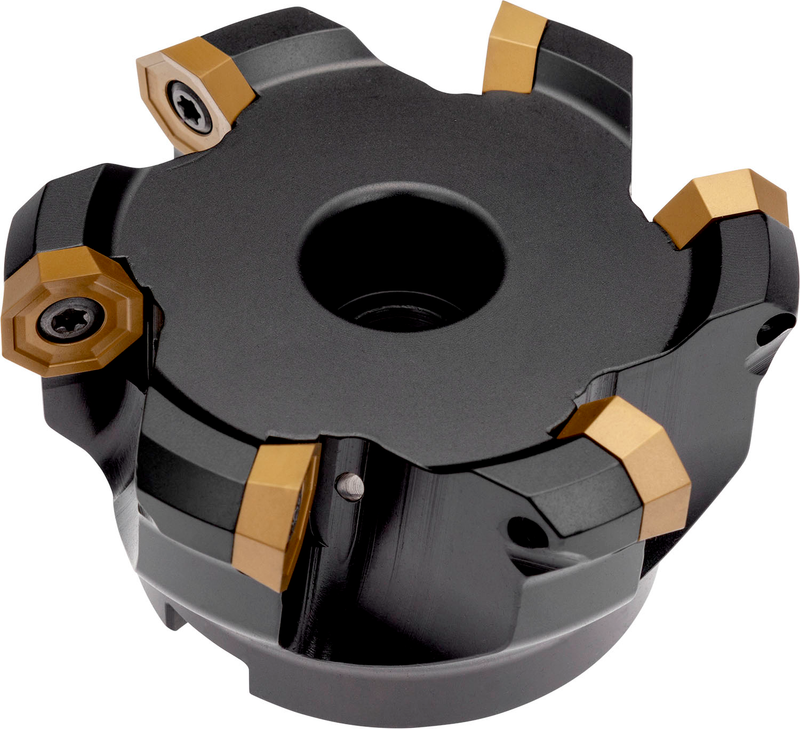

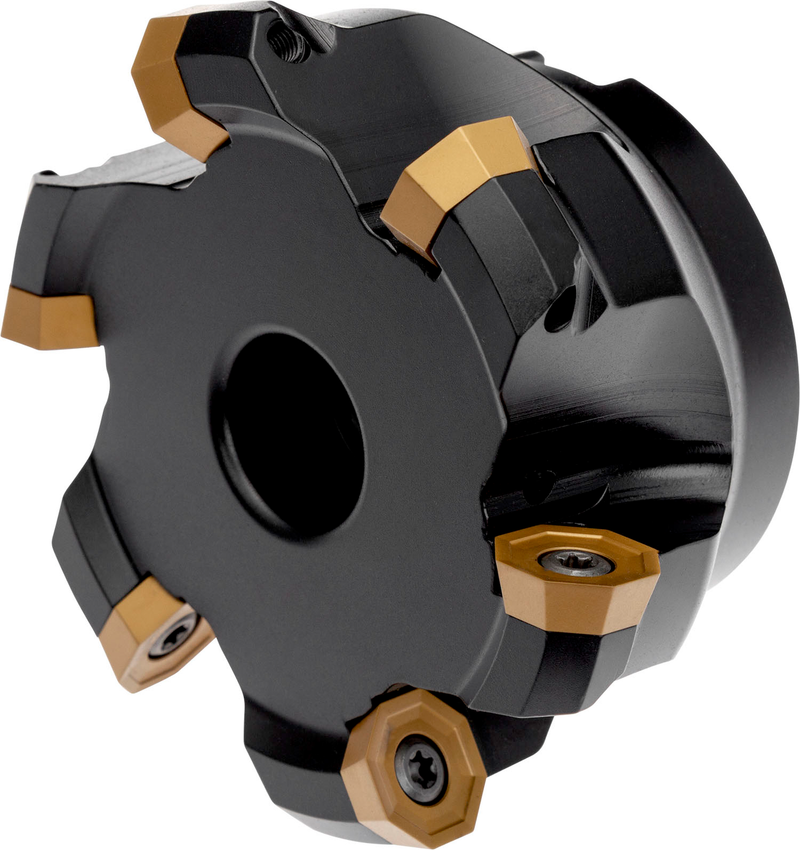

Fraise à surfacer avec géométrie positive/négative utilisant 6 plaquettes simple face OD... 0605ZZ... ou RP... 1505MO..., diamètre de coupe 80 à 89,5 mm maximum, avec angle d'attaque de 45° et alésage de connexion de 27 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,1 (8,6) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A06R-S45OD06D
Product Number6756817
Product FamilySOD06D
Insert Geometry
Depth of Cut Max — mm (APMX)3.1 mm

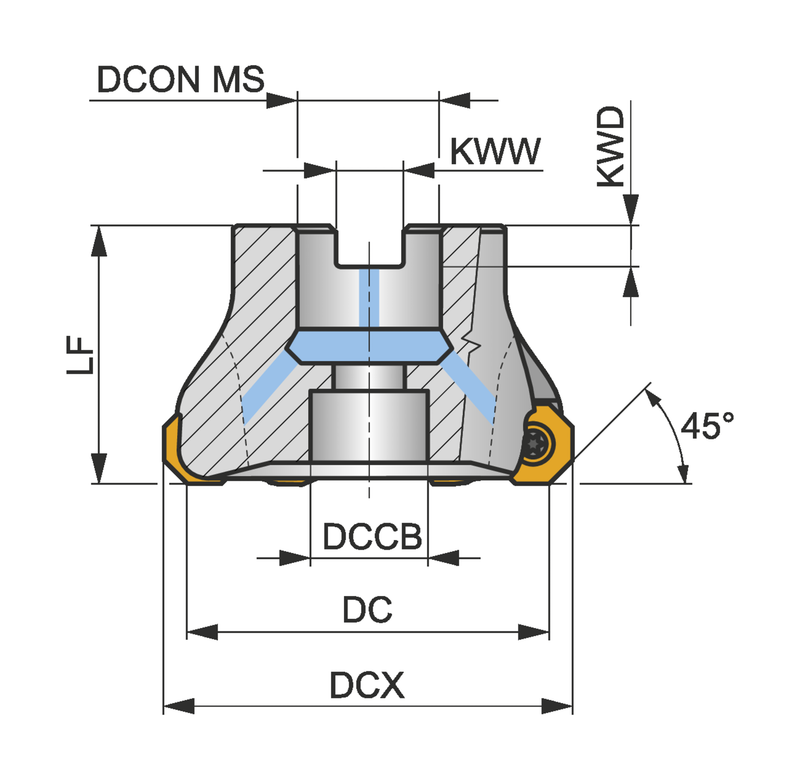

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSOD06D
ShankFraise deux tailles DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6756817
EAN3603602921833
File Type Download
80A06R-S45OD06D — 3D Model STP Download
80A06R-S45OD06D — 2D Model DXF Download
80A06R-S45OD06D — Line Drawing PDF Download
