100A07R-S45OD06D
100A07R-S45OD06D
100A07R-S45OD06D

100A07R-S45OD06D

UGC DOR6756818
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD

Vendu en lots de : 1

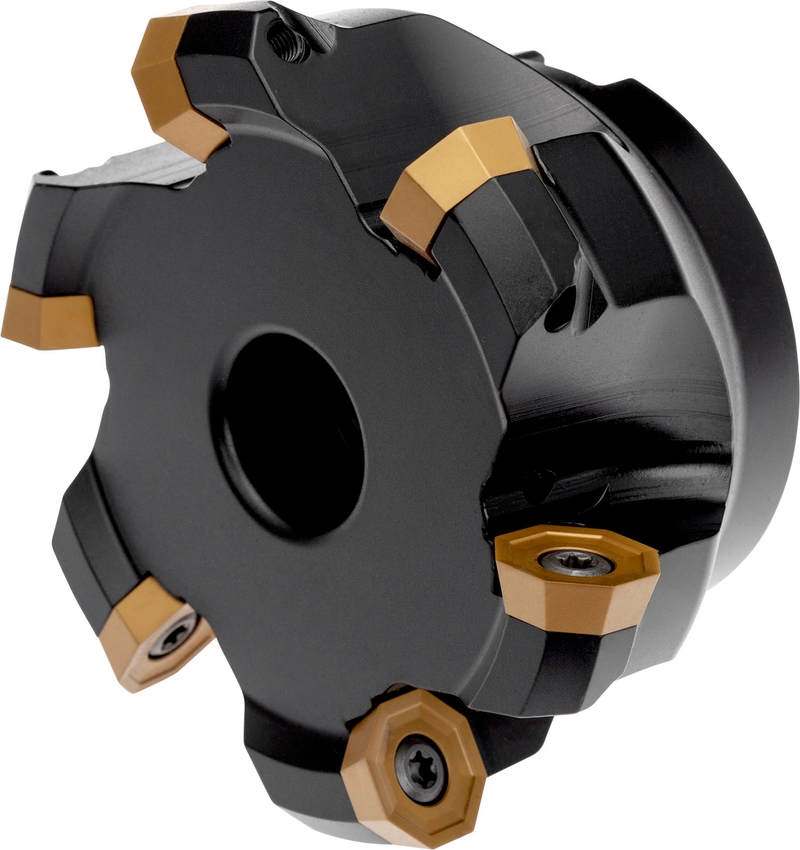

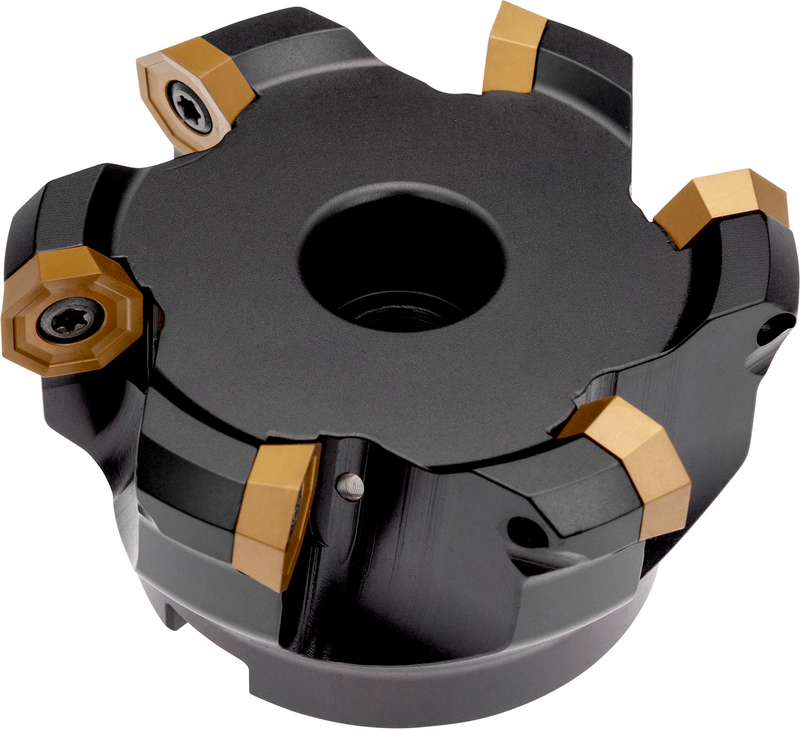

Fraise à surfacer à géométrie positive/négative qui utilise 7 plaquettes simple face OD.. 0605ZZ.. ou RP.. 1505MO.., diamètre de coupe de 100 à 109,5mm maximum avec un angle d'attaque de 45° et un alésage de connexion de 32mm selon DIN 8030-A, une longueur de dépassement de 50mm, un arrosage interne et un pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,1 (8,6)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A07R-S45OD06D
Product Number6756818
Product FamilySOD06D

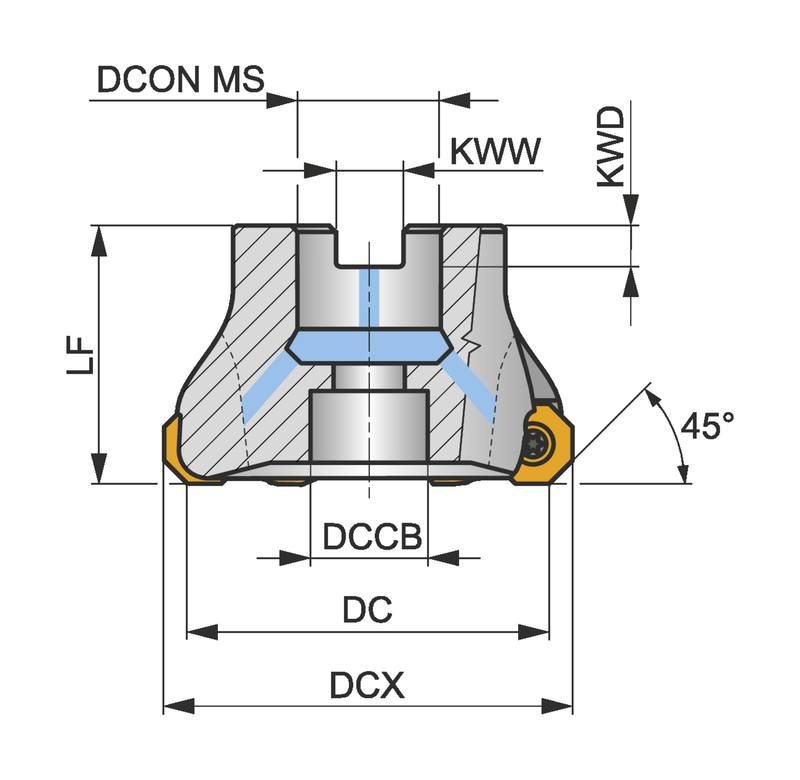

Insert Geometry
Depth of Cut Max — mm (APMX)3.1 mm
Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSOD06D
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6756818
EAN3603602921840
File Type Download
100A07R-S45OD06D — 3D Model STP Download
100A07R-S45OD06D — 2D Model DXF Download
100A07R-S45OD06D — Line Drawing PDF Download
