125A08R-S45OD06D
125A08R-S45OD06D
125A08R-S45OD06D

125A08R-S45OD06D

UGC DOR6756819
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,404.00 CAD - $1,404.00 CAD
$1,404.00 CAD
$1,404.00 CAD - $1,404.00 CAD
$1,404.00 CAD

Vendu en lots de : 1

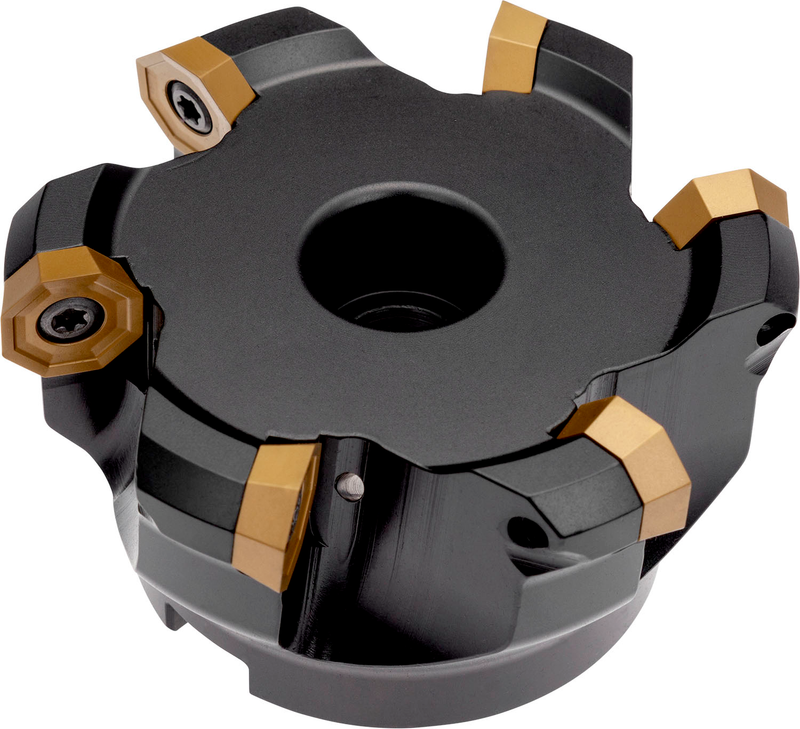

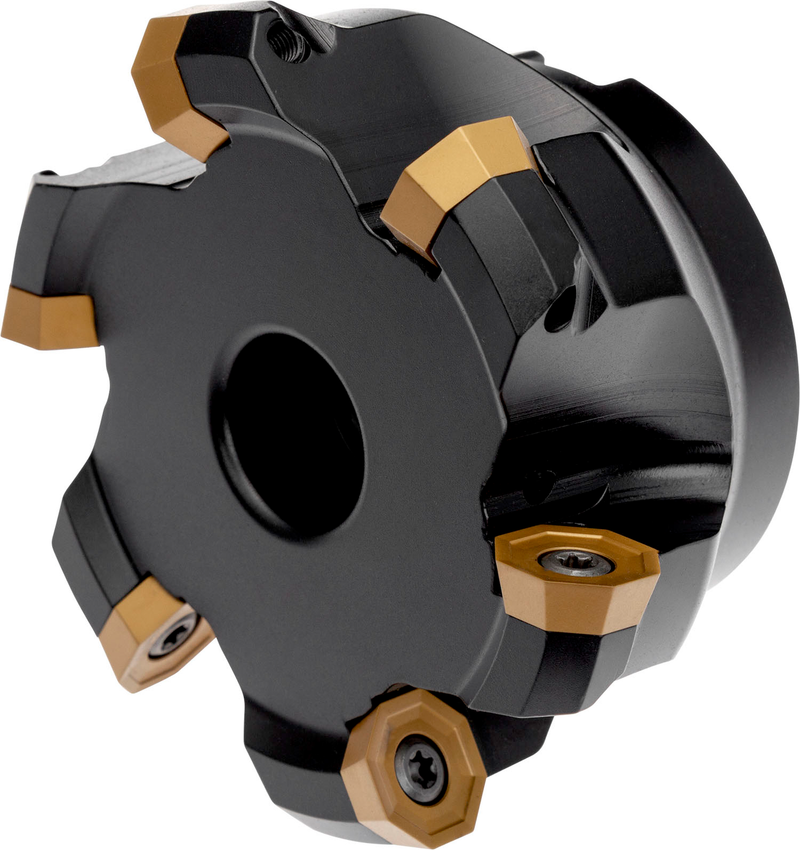

Fraise à surfacer avec géométrie positive/négative utilisant 8 plaquettes simple face OD.. 0605ZZ.. ou RP.. 1505MO.., diamètre de coupe de 125 à 134,5 mm maximum, avec un angle d'attaque de 45° et un alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm, arrosage interne et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,1 (8,6) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A08R-S45OD06D
Product Number6756819
Product FamilySOD06D
Insert Geometry
Depth of Cut Max — mm (APMX)3.1 mm

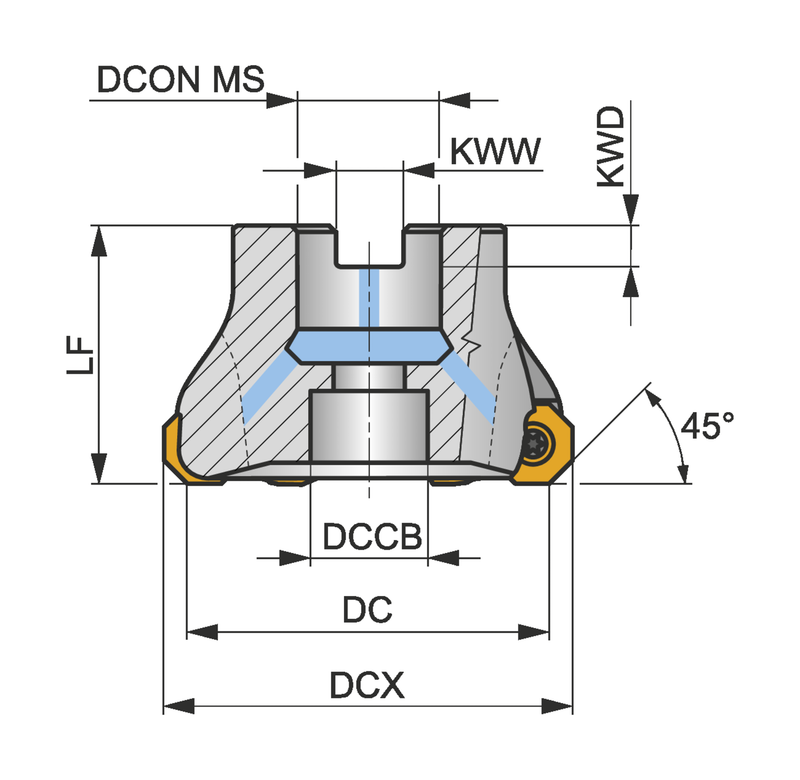

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSOD06D
ShankFraise-scie DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6756819
EAN3603602921857
File Type Download
125A08R-S45OD06D — 3D Model STP Download
125A08R-S45OD06D — 2D Model DXF Download
125A08R-S45OD06D — Line Drawing PDF Download
