160C09R-S45OD06D
160C09R-S45OD06D
160C09R-S45OD06D

160C09R-S45OD06D

UGC DOR6756820
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,739.00 CAD - $1,739.00 CAD
$1,739.00 CAD
$1,739.00 CAD - $1,739.00 CAD
$1,739.00 CAD

Vendu en lots de : 1

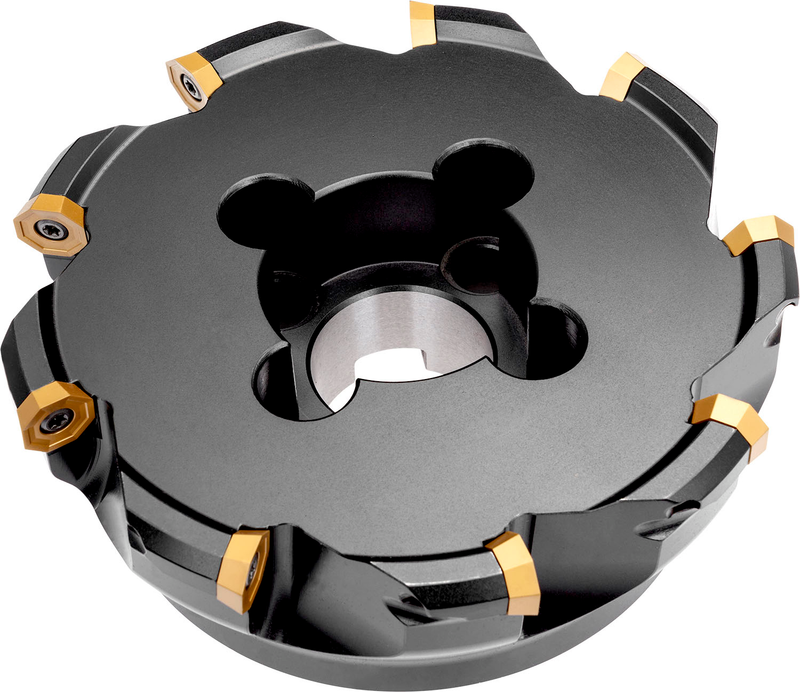

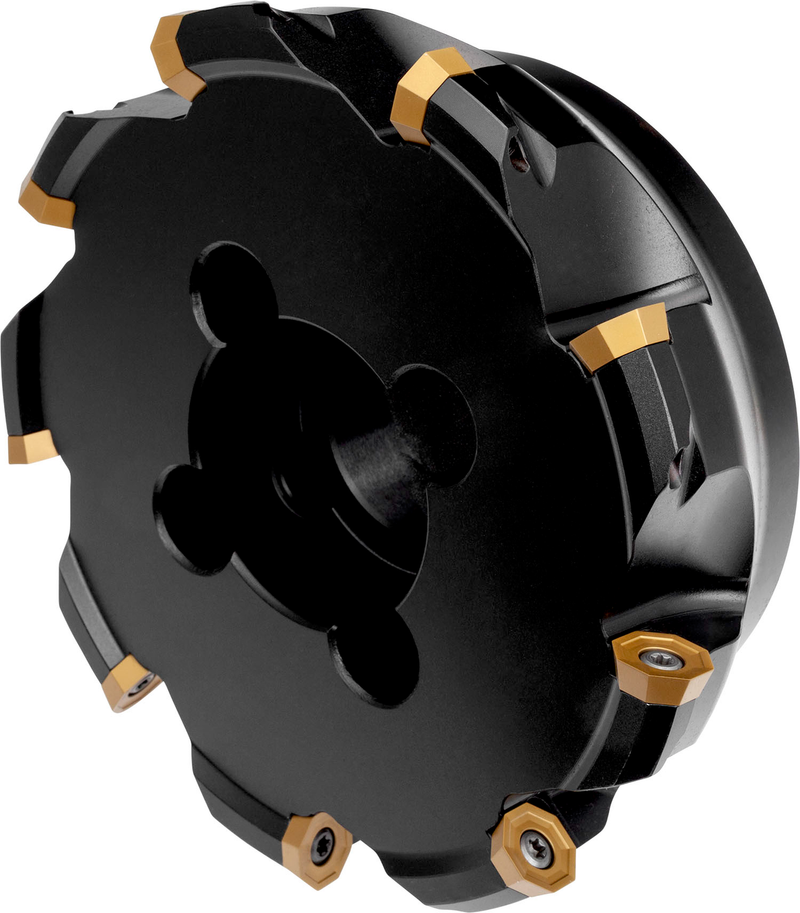

Fraise à surfacer avec une géométrie positive/négative utilisant 9 plaquettes unilatérales OD. 0605ZZ. ou RP. 1505MO. Son diamètre de coupe est de 160 à 169,5 mm maximum, avec un angle d'approche de 45° et un alésage de connexion de 40 mm selon la norme DIN 8030-C, une longueur de saillie de 63 mm et un pas différentiel pour le surfaçage et le chanfreinage, avec une profondeur de coupe maximale de 3,1 (8,6) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C09R-S45OD06D
Product Number6756820
Product FamilySOD06D
Insert Geometry
Depth of Cut Max — mm (APMX)3.1 mm

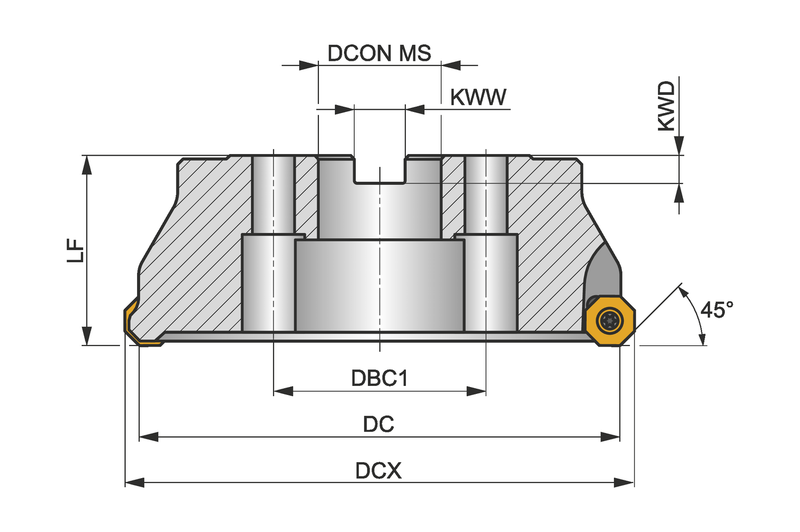

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSOD06D
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Through Coolant No
Reference Numbers
EDP Number6756820
EAN3603602921864
File Type Download
160C09R-S45OD06D — 3D Model STP Download
160C09R-S45OD06D — 2D Model DXF Download
160C09R-S45OD06D — Line Drawing PDF Download
