S20S-SDUCR 11
S20S-SDUCR 11
S20S-SDUCR 11

S20S-SDUCR 11

UGC DOR6756824
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

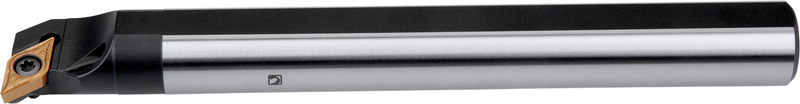

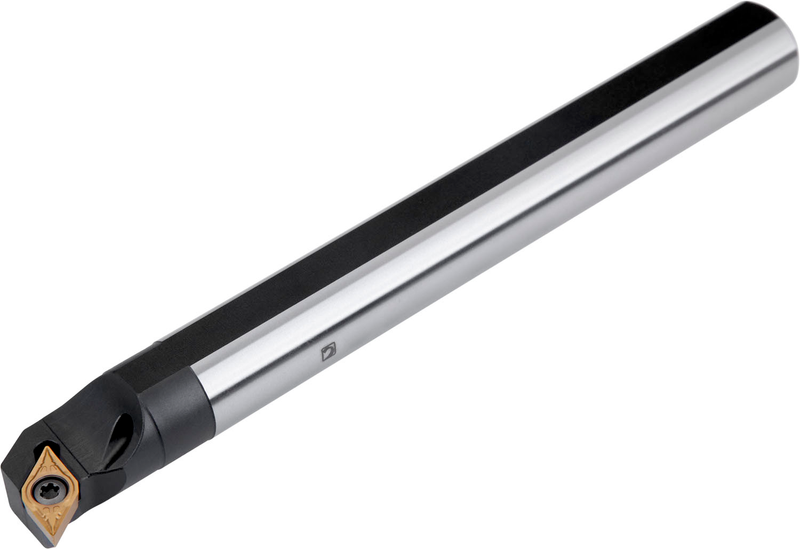

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur 3,97 mm (désignation ISO DC.. 11T3.. ), coupe à droite 93° avec corps déporté, acier sans trou d'arrosage, diamètre 20 mm x 250 mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SDUCR 11
Product Number6756824
Product FamilySDUC(RL) INT

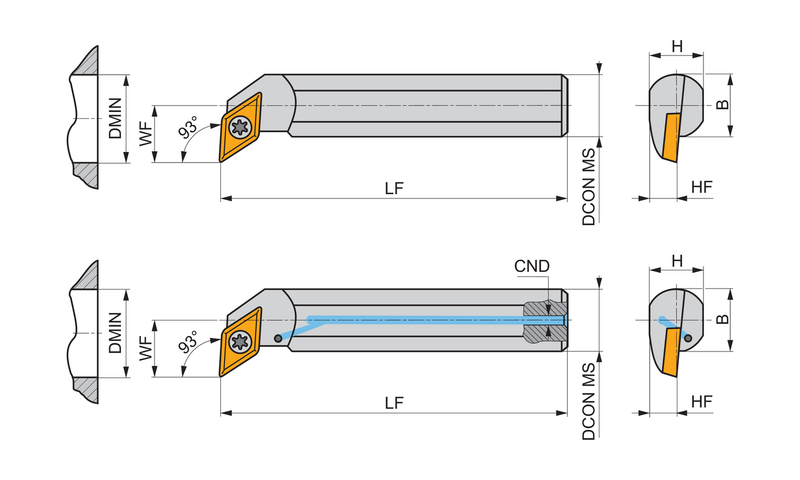

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756824
EAN3603602921901
File Type Download
S20S-SDUCR 11 — 3D Model STP Download
S20S-SDUCR 11 — Line Drawing PDF Download
