S16M-SDZCR 07-93
S16M-SDZCR 07-93
S16M-SDZCR 07-93

S16M-SDZCR 07-93

UGC DOR6756832
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

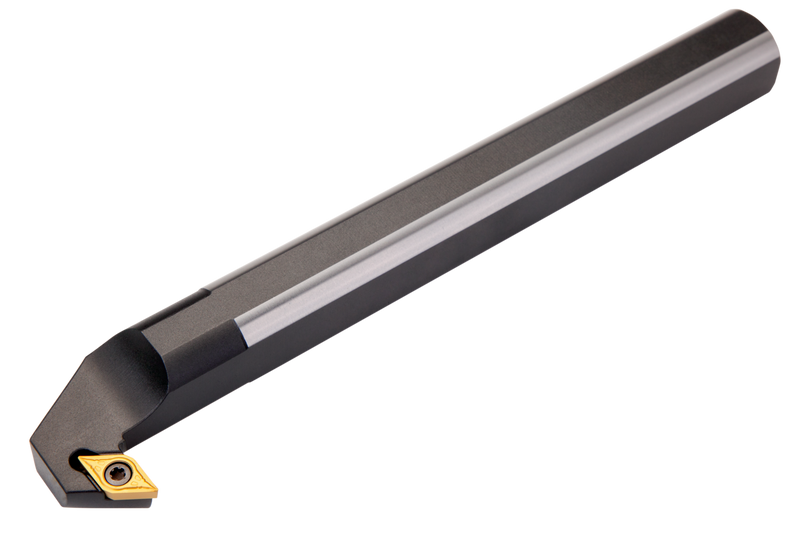

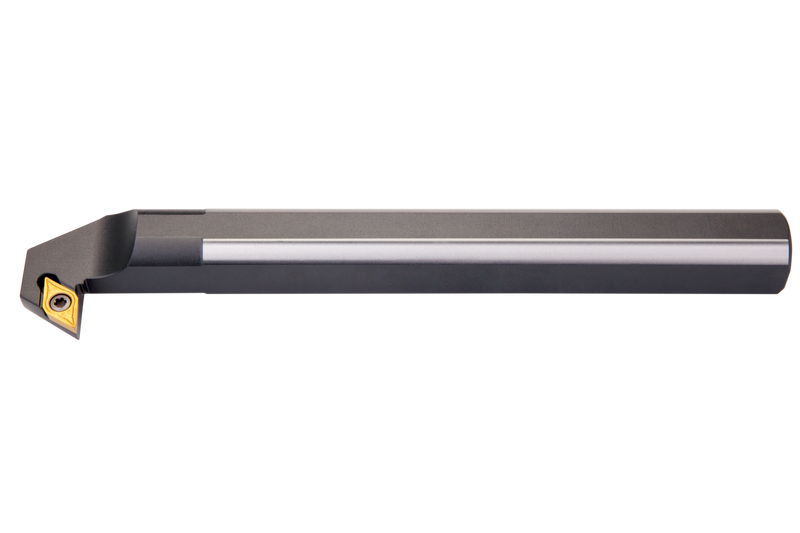

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 6,35 mm, épaisseur 2,38 mm (désignation ISO DC.. 0702.. ), coupe arrière à droite avec queue déportée, en acier sans trou d'arrosage, diamètre 16 mm x longueur 150 mm pour chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S16M-SDZCR 07-93
Product Number6756832
Product FamilySDZC(RL) INT

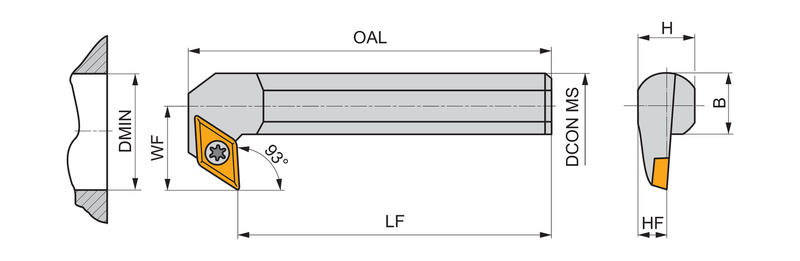

Dimensions
Overall Length — in (OAL)6.417"
Overall Length — mm (OAL)163.0 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)1.063"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756832
EAN3603602921987
File Type Download
S16M-SDZCR 07-93 — 3D Model STP Download
S16M-SDZCR 07-93 — Line Drawing PDF Download
