S25T-SVQCR 16
S25T-SVQCR 16
S25T-SVQCR 16

S25T-SVQCR 16

UGC DOR6756834
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Vendu en lots de : 1

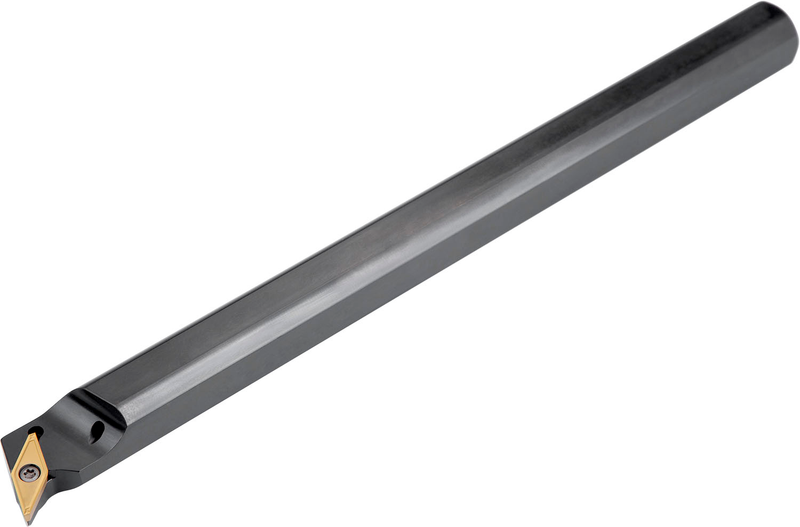

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde de 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604..), à coupe à droite de 107°30' en bout avec tige déportée, en acier sans trou d'arrosage, de 25 mm de diamètre x 300 mm de long pour l'alésage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S25T-SVQCR 16
Product Number6756834
Product FamilySVQB(C)(RL) INT

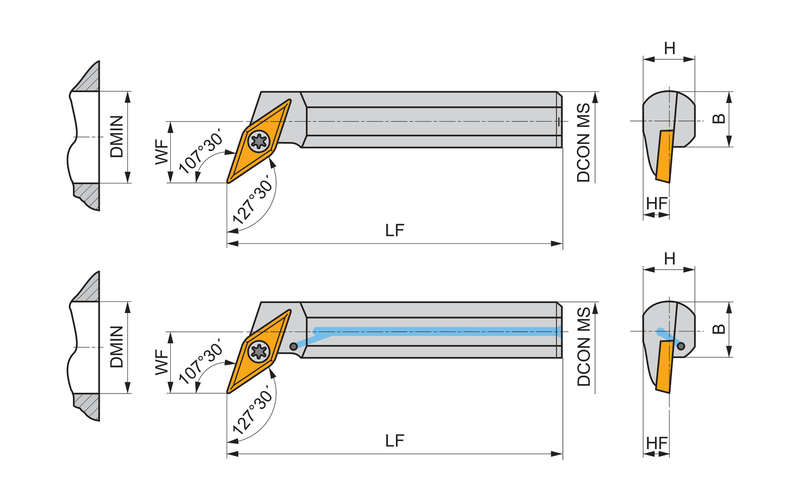

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756834
EAN3603602922007
File Type Download
S25T-SVQCR 16 — 3D Model STP Download
S25T-SVQCR 16 — Line Drawing PDF Download
