S20S-SDQCL 11
S20S-SDQCL 11
S20S-SDQCL 11

S20S-SDQCL 11

UGC DOR6756841
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

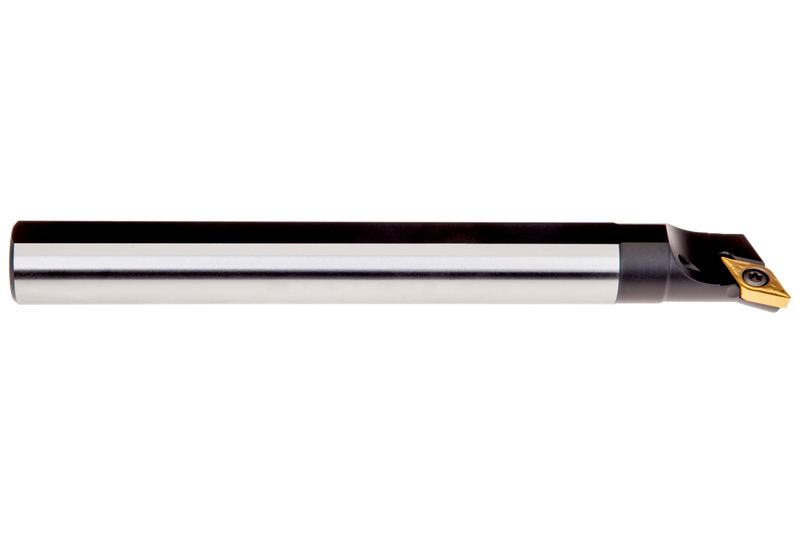

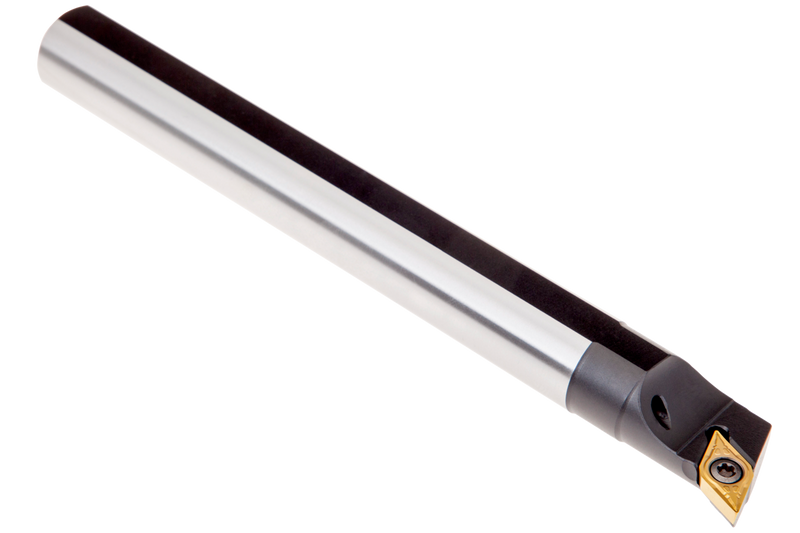

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 9,525 mm, 3,97 mm d'épaisseur (désignation ISO DC.. 11T3.. ), coupe à gauche 107°30' avec queue déportée, acier sans trou d'arrosage, 20 mm de diamètre x 250 mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SDQCL 11
Product Number6756841
Product FamilySDQC(RL) INT

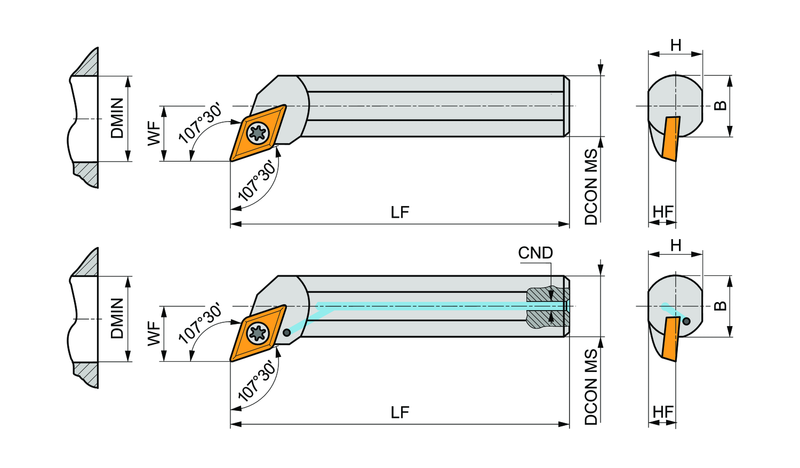

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756841
EAN3603602922076
File Type Download
S20S-SDQCL 11 — 3D Model STP Download
S20S-SDQCL 11 — Line Drawing PDF Download
