S32U-SVUCR 16
S32U-SVUCR 16
S32U-SVUCR 16

S32U-SVUCR 16

UGC DOR6756849
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.00 CAD - $407.00 CAD
$407.00 CAD
$407.00 CAD - $407.00 CAD
$407.00 CAD

Vendu en lots de : 1

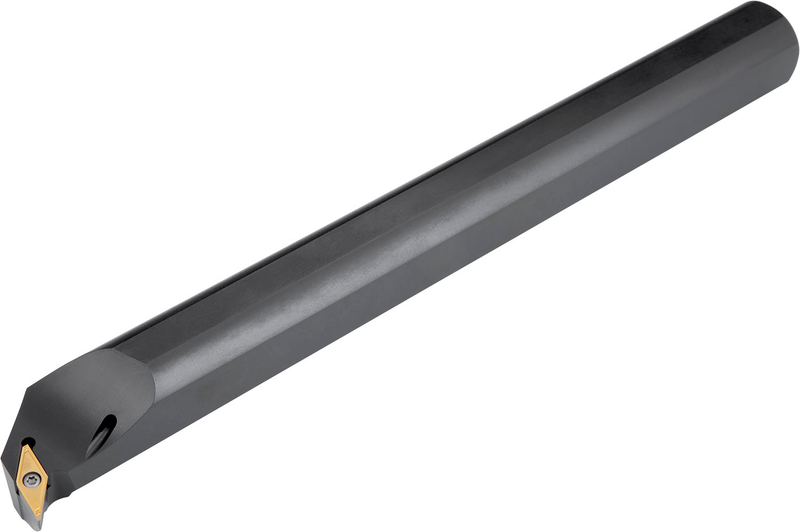

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604..), coupe à droite 93° avec queue déportée, en acier sans trou d'arrosage, 32 mm de diamètre x 350 mm de long pour alésage de copiage unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S32U-SVUCR 16
Product Number6756849
Product FamilySVUB(C)(RL) INT

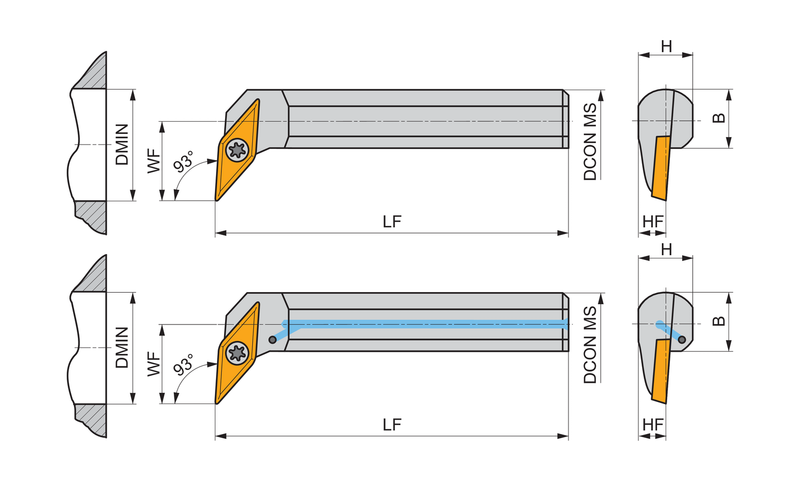

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756849
EAN3603602922151
File Type Download
S32U-SVUCR 16 — 3D Model STP Download
S32U-SVUCR 16 — Line Drawing PDF Download
