S32U-SWLCR 08
S32U-SWLCR 08
S32U-SWLCR 08

S32U-SWLCR 08

UGC DOR6756850
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.00 CAD - $407.00 CAD
$407.00 CAD
$407.00 CAD - $407.00 CAD
$407.00 CAD

Vendu en lots de : 1

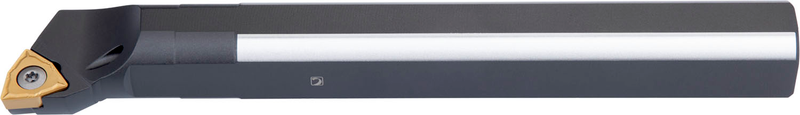

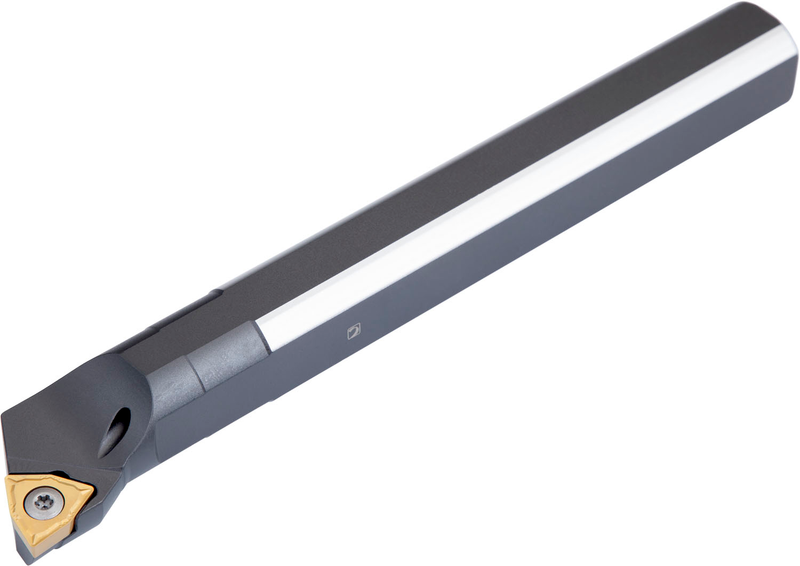

Barre d'alésage à bridage par vis pour plaquette positive trigon 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WC.. 0804..), coupe à droite 95° latérale et frontale avec queue déportée, en acier sans trou d'arrosage, diamètre 32 mm x 350 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)S32U-SWLCR 08
Product Name (ISO)S32U-SWLCR 08
Product Number6756850
Product FamilySWLC(RL) INT

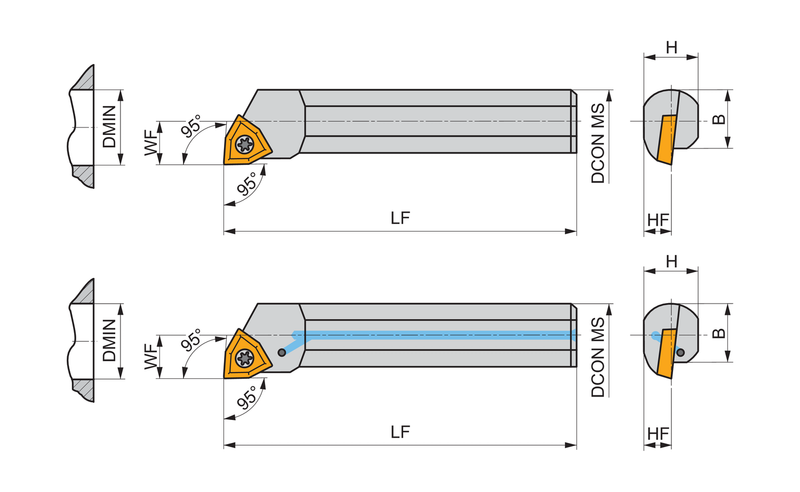

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756850
EAN3603602922168
File Type Download
S32U-SWLCR 08 — 3D Model STP Download
S32U-SWLCR 08 — Line Drawing PDF Download
