S25R-SDZCL 11-93
S25R-SDZCL 11-93
S25R-SDZCL 11-93

S25R-SDZCL 11-93

UGC DOR6756852
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

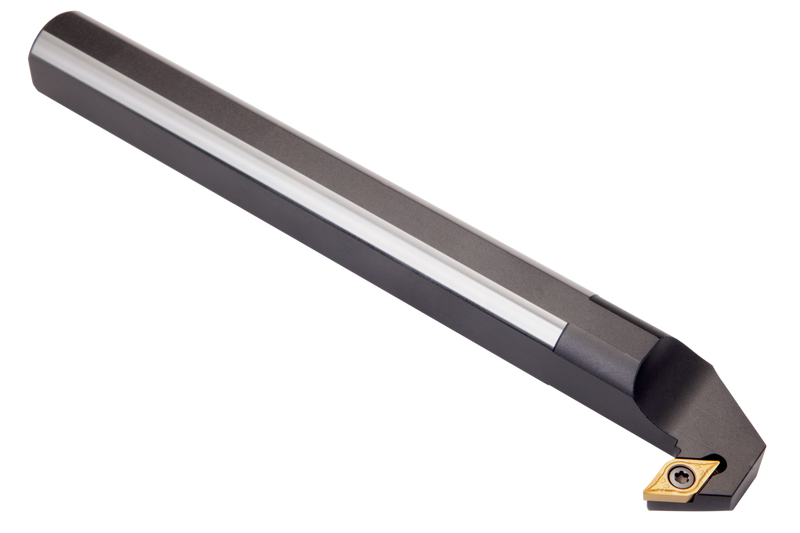

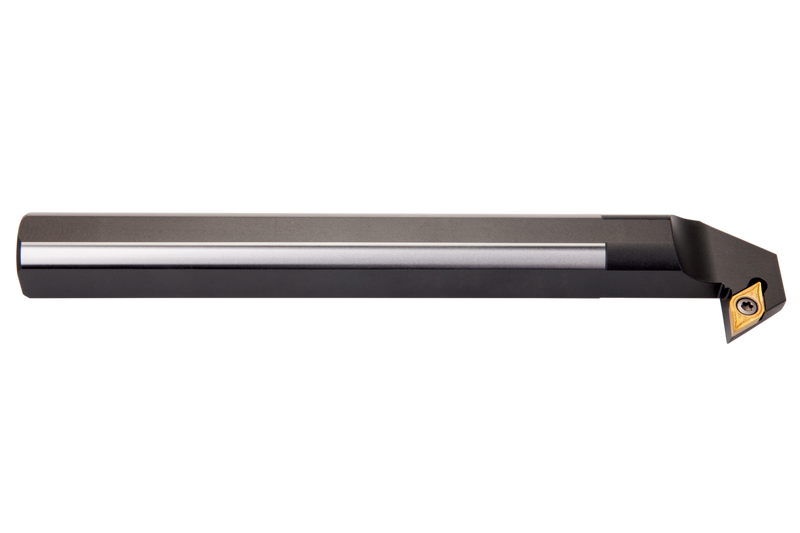

Alésoir de tournage à plaquette amovible pour le serrage d'une plaquette positive en forme de losange à 55° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 3,97 mm (désignation ISO DC... 11T3...), coupe à gauche, avec queue déportée, en acier sans trou de refroidissement, 25 mm de diamètre x 200 mm de long pour le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S25R-SDZCL 11-93
Product Number6756852
Product FamilySDZC(RL) INT

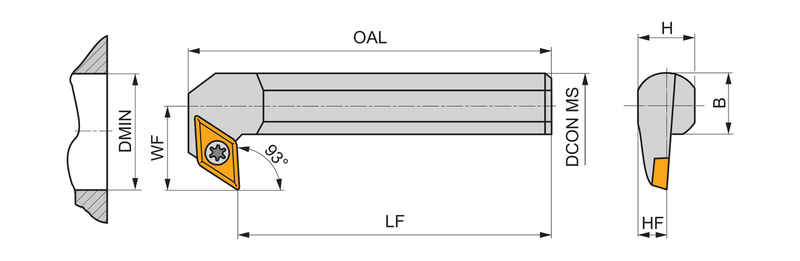

Dimensions
Overall Length — in (OAL)8.583"
Overall Length — mm (OAL)218.0 mm
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.654"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756852
EAN3603602922182
File Type Download
S25R-SDZCL 11-93 — 3D Model STP Download
S25R-SDZCL 11-93 — Line Drawing PDF Download
