S25T-SDUCL 11
S25T-SDUCL 11
S25T-SDUCL 11

S25T-SDUCL 11

UGC DOR6756853
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

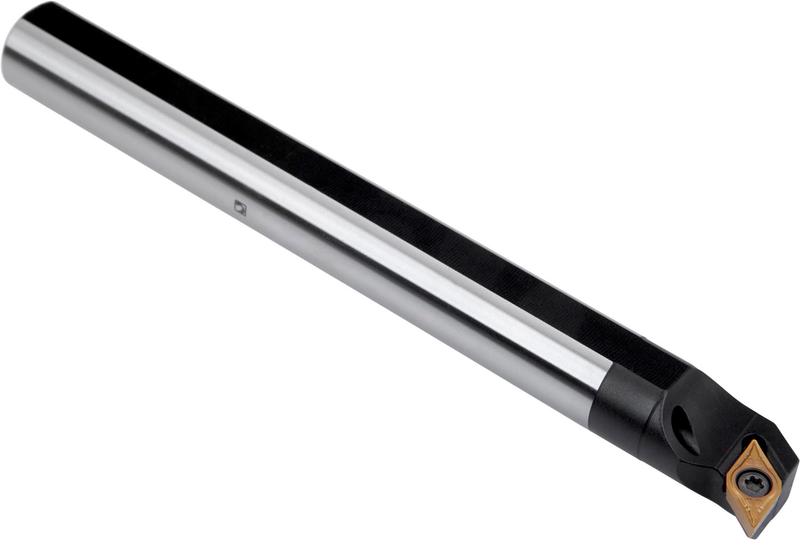

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde de 55° avec un diamètre de cercle inscrit de 9,525 mm, 3,97 mm d'épaisseur (désignation ISO DC.. 11T3.. ), coupe à gauche 93° avec queue déportée, en acier sans trou de refroidissement, diamètre 25 mm x 300 mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S25T-SDUCL 11
Product Number6756853
Product FamilySDUC(RL) INT

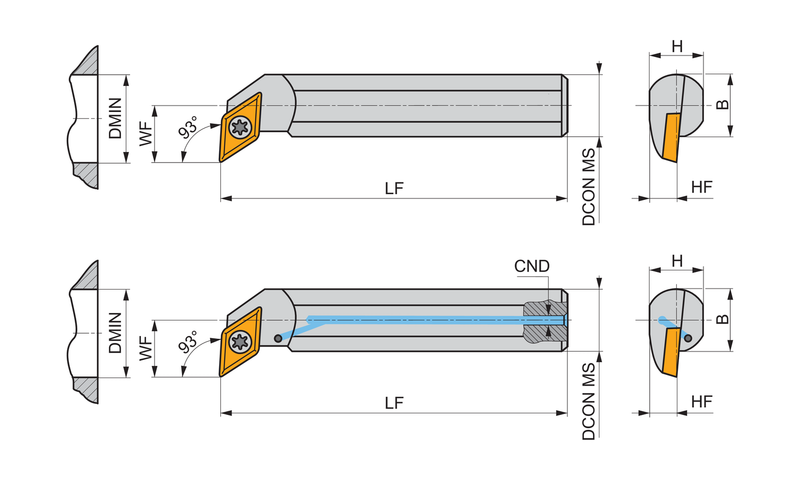

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756853
EAN3603602922199
File Type Download
S25T-SDUCL 11 — 3D Model STP Download
S25T-SDUCL 11 — Line Drawing PDF Download
