S20S-SSSCL 09
S20S-SSSCL 09
S20S-SSSCL 09

S20S-SSSCL 09

UGC DOR6756854
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

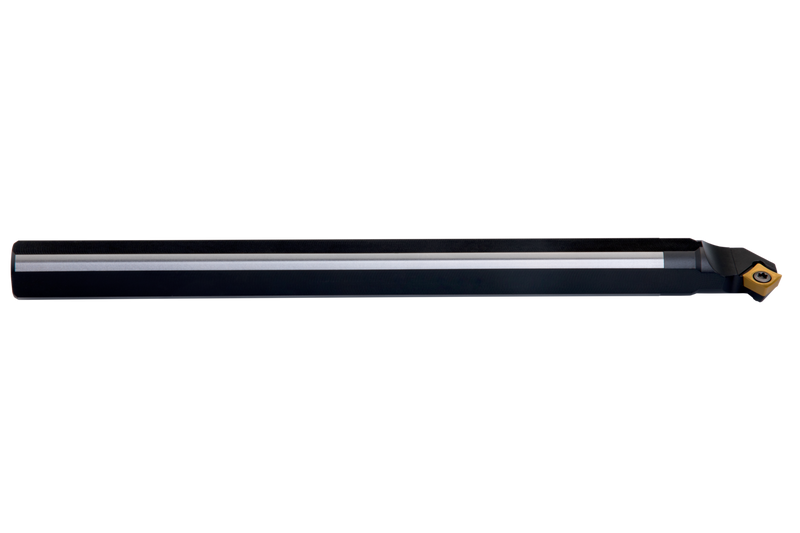

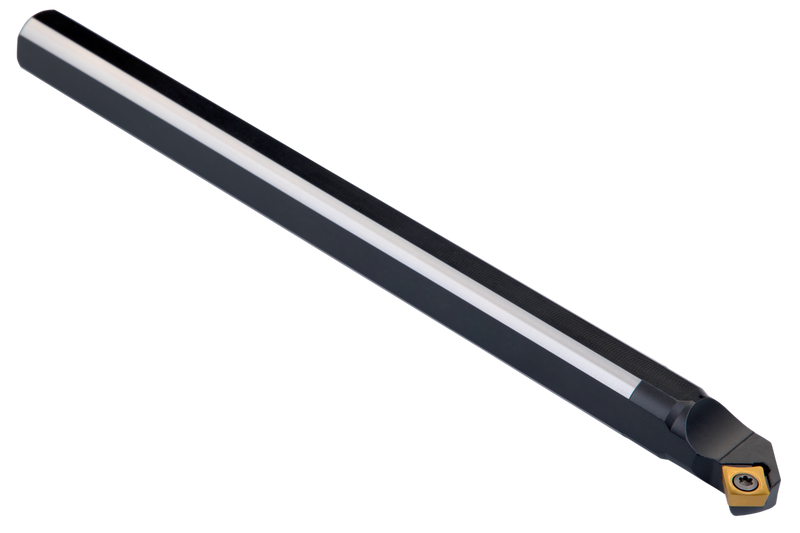

Barre d'alésage à bridage par vis pour plaquette carrée positive avec un diamètre de cercle inscrit de 9,525 mm, 3,97 mm d'épaisseur (désignation ISO SC.. 09T3.. ), coupe à gauche 45° avec queue déportée, en acier sans trou d'arrosage, 20 mm de diamètre x 250 mm de long pour le chanfreinage intérieur, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SSSCL 09
Product Number6756854
Product FamilySSSC(RL) INT

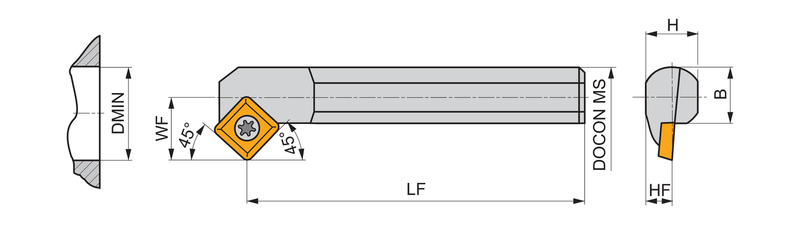

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756854
EAN3603602922205
File Type Download
S20S-SSSCL 09 — 3D Model STP Download
S20S-SSSCL 09 — Line Drawing PDF Download
