S10H-SCFCL 06
S10H-SCFCL 06

S10H-SCFCL 06

UGC DOR6756859
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

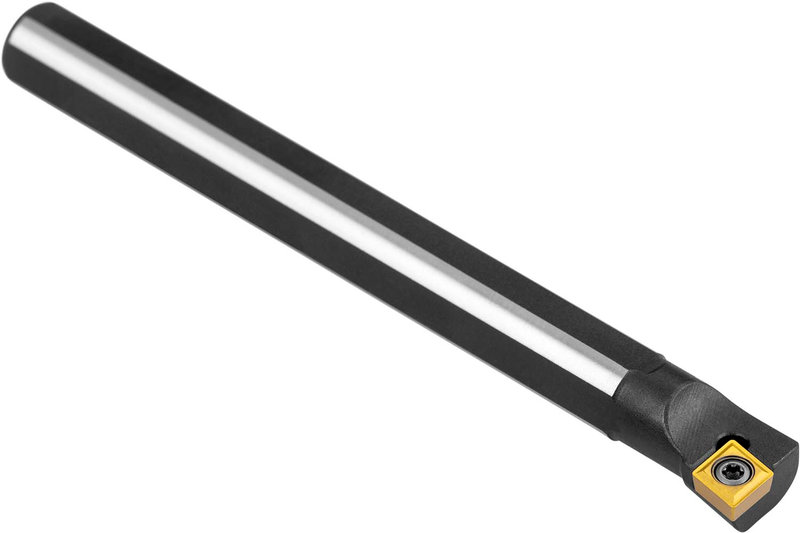

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 80° avec diamètre de cercle inscrit de 6,35 mm, 2,38 mm d'épaisseur (désignation ISO CC.. 0602.. ), coupe à gauche 90° avec queue déportée, en acier sans trou d'arrosage, 10 mm de diamètre x 100 mm de long pour l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)S10H-SCFCL 06
Product Name (ISO)S10H-SCFCL 06
Product Number6756859
Product FamilySCFC(RL) INT

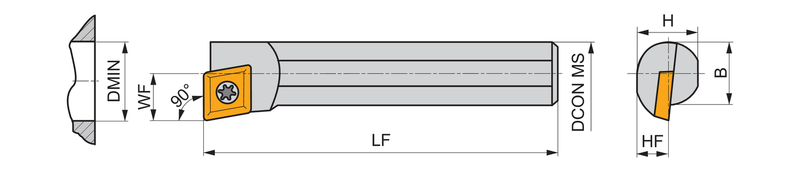

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)0.354 mm
Min. Bore Dia. — in (DMIN)0.512"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756859
EAN3603602922250
File Type Download
S10H-SCFCL 06 — 3D Model STP Download
S10H-SCFCL 06 — Line Drawing PDF Download
