SDNCN 1212 F 11
SDNCN 1212 F 11
SDNCN 1212 F 11

SDNCN 1212 F 11

UGC DOR6756862
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

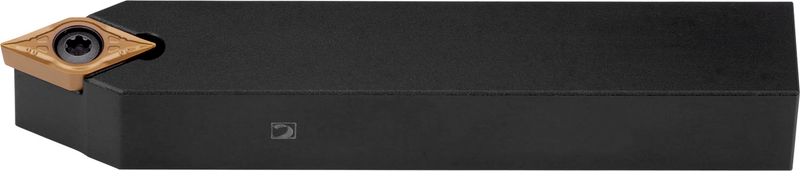

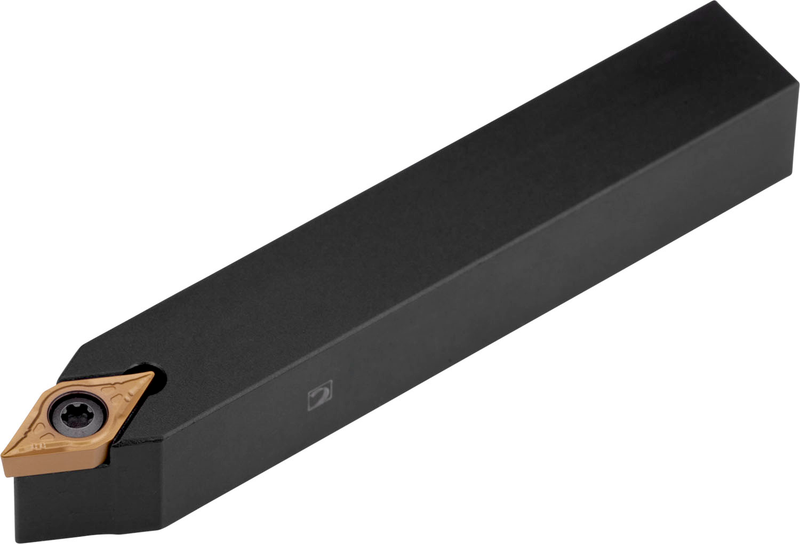

Outil de tournage à bride par vis pour plaquette positive en forme de losange à 55° avec un cercle inscrit de 9,525 mm de diamètre, 3,97 mm d'épaisseur (désignation ISO DC.. 11T3.. ), main neutre à 62°30' d'angle de coupe latéral avec queue droite, 12 mm de hauteur d'outil x 12 mm de largeur x 80 mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDNCN 1212 F 11
Product Number6756862
Product FamilySDNCN EXT

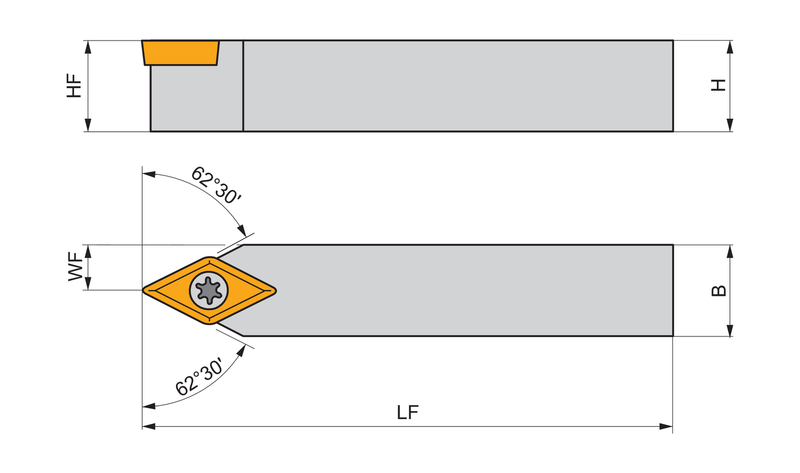

Dimensions
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756862
EAN3603602922281
File Type Download
SDNCN 1212 F 11 — 3D Model STP Download
SDNCN 1212 F 11 — Line Drawing PDF Download
