SCBCR 1616 H 09
SCBCR 1616 H 09

SCBCR 1616 H 09

UGC DOR6756886
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

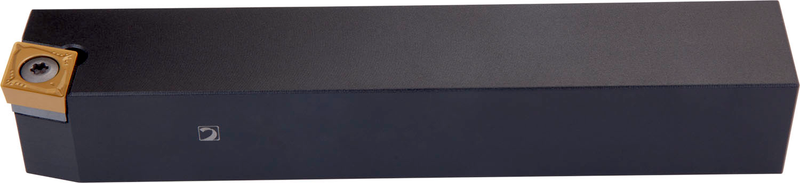

Outil de tournage à levier pour plaquette positive rhomboïde 80° avec un diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO CC.. 09T3..), coupe à droite 75° avec queue droite, 16mm de hauteur d'outil x 16mm de largeur x 100mm de longueur pour le chariotage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)SCBCR 1616 H 09
Product Name (ISO)CSBCR 1616 H 09
Product Number6756886
Product FamilySCBC(RL) EXT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756886
EAN3603602922526
File Type Download
SCBCR 1616 H 09 — 3D Model STP Download
SCBCR 1616 H 09 — Line Drawing PDF Download
